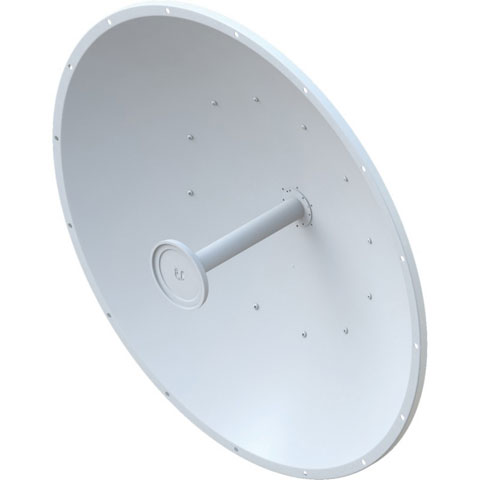

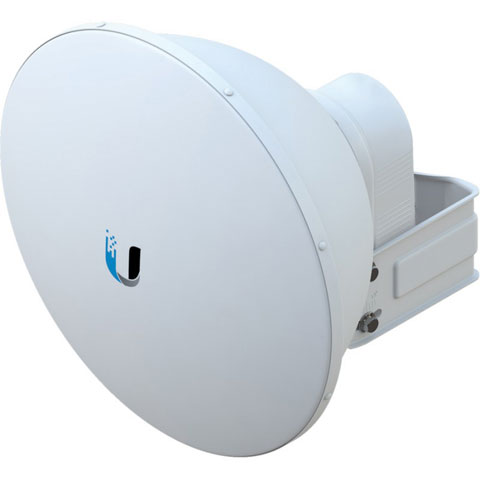

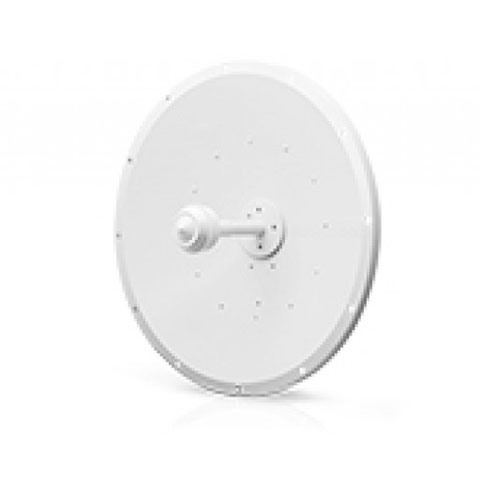

Ubiquiti Networks airFiber X Wireless Antenna Model Overview
The airFiber X antenna delivers 2x2, dual-polarity performance. Pair an airFiber X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately). The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

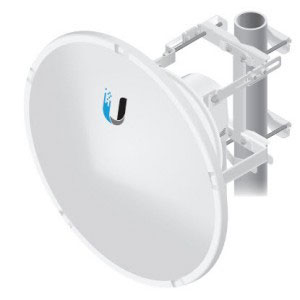

Ubiquiti Networks introduces the airFiber® AF-11G35 antenna, designed for use in the licensed 11 GHz band. Break free of the crowded 5 GHz spectrum by pairing the airFiber AF-11G35 antenna with the airFiber AF-11FX radio (available separately), to create the endpoint of an 11 GHz high-performance, full-duplex, Point-to-Point bridge or network backhaul.
Powerful Performance
The airFiber AF-11G35 antenna delivers SISO or 2x2 MIMO, dual-polarity performance. On the right is one example of how the AF-11G35 antenna with the AF-11FX radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP's customers.
Upgrade to Licensed, Full-Duplex 11 GHz
For existing Ubiquiti Networks® AF-5 and AF-5U installations, the AF-11G35 provides a quick, convenient upgrade path to the licensed 11 GHz band.
The airFiber AF-11G35 uses the same antenna mount as the airFiber AF-5 and AF-5U - by simply swapping out an AF-5 or AF-5U with the AF-11G35, you can quickly and easily upgrade an unlicensed, full-duplex 5 GHz link to a licensed, full-duplex 11 GHz link.
Carrier-Class Construction
Incorporating a dish reflector design for excellent beam directivity, the airFiber AF-11G35 antenna features robust mechanical design using industrial-strength hardware for outdoor application use.
Plug and Play Integration

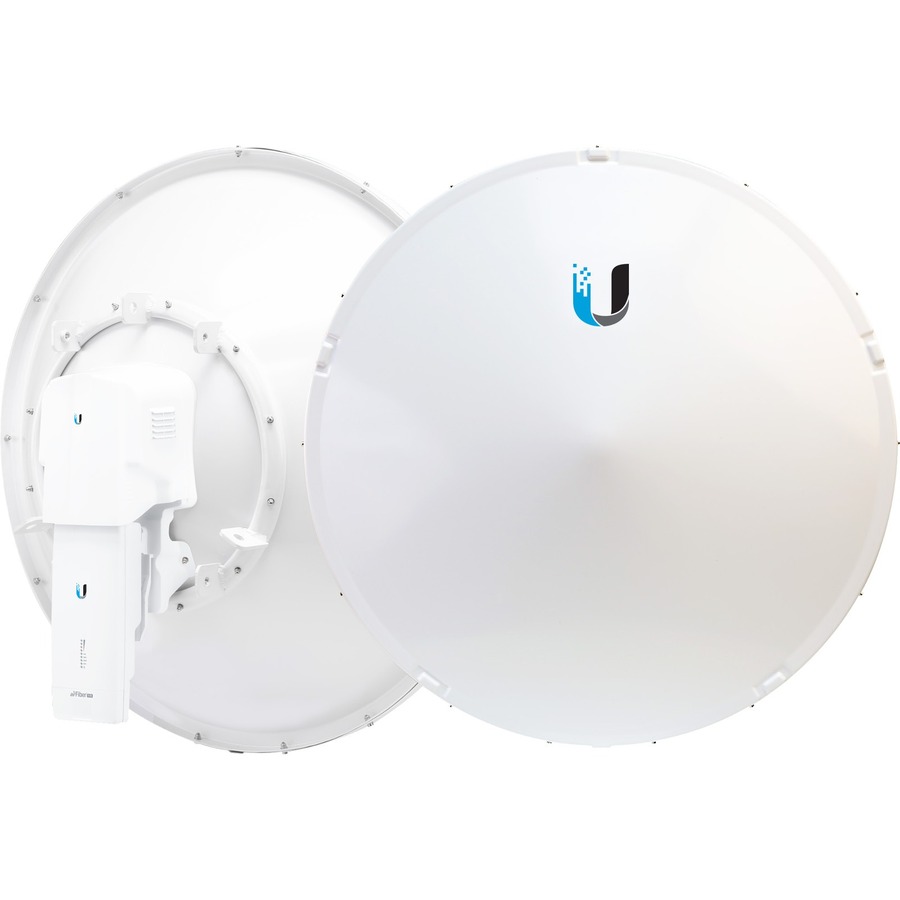

The AF-11G35 antenna has a built-in mount for the AF-11FX radio, so installation requires no special tools. Snap the airFiber AF-11FX radio securely into place and mount the antenna; you then have the optimal airFiber X antenna and radio combination for your 11 GHz PtP application.
