Motorola WT4090-N3H1GER Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

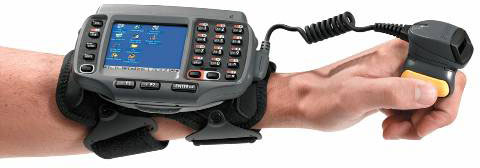

Symbol WT4090 - Wearable Terminal (No touchscreen, 3-Tap Keypad, 128/128 Memory, Hi-Capacity Battery and English OS - Requires Wrist Mount and Scanners)
802.11a/b/g communications!

The Symbol WT4090 is the next generation of wearable data terminal! With 802.11a/b/g communications, the WT4090 is at the top of the industry, continuing Symbol's excellent data terminal line. Standard features include Windows CE operating system and a standard capacity battery.

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: WT4000
  • Product Name: WT4000 Wearable Terminal

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • 15 kV DC Air Discharge
    • 8 kV DC Indirect Discharge

Physical Characteristics

  • Height: 3.7"
  • Width: 5.7"
  • Depth: 1"
  • Weight (Approximate): 11.30 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • WT4000 Wearable Terminal
    • Lithium-Ion Battery
    • Regulatory Guide
    • Quick Start Guide
    • WT4000 Wearable Terminal
    • Lithium-Ion Battery
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Environmental sealing: IP54
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950/IEC 60950-1
    • EMC:
    • FCC Part 15 Subpart B
    • ICES-003 Class B
    • EN 60601-1-2
    • EN 61000-3-2
    • EN 61000-3-3
    • CISPR 22 Class B
    • CISPR 24
    • RF:
    • FCC Parts 15.247
    • FCC Parts 15.407
    • FCC Parts 15.205
    • FCC Parts 15.207
    • FCC Parts 15.209
    • FCC Parts 15.203
    • EN 300 328
    • EN 301 893
    • RSS-100
    • RSS-210
    • ARIB STD-66 & 33
    • ARIB STD-T70 & 71
  • Additional Information:
    • Keypad Overlay: Triple tap alpha
    • Tumble: 500 one-half meter tumbles at room temperature (1,000 drops)
    • OS Language: English

Network & Communication

  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 2.8"
  • Display Color: Color
  • Screen Resolution: 320 x 240

Battery Information

  • Battery Capacity: 4600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 128 MB

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 23

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows CE 5.0 Professional
Brand Symbol
Model WT4090
Style Wearable
Operating Temperature -4 F - 122 F
RAM Memory 128MB
Operating System Windows CE 5.0 Pro
Processor 520 MHz Intel XScale
Network Connectivity Bluetooth, 802.11g, 802.11a, 802.11a/b/g
Display Resolution 240 x 320
Keypad 23
IP Rating IP54
Data Collection Type Wireless
Drop Rating 4 ft.1.2 m


Customer Review Summary

Recommended Accessories for Model: Symbol WT4090 Mobile Computer
Symbol (SG-WT4023020-05R)
Wrist Mount, Freezer optimized down to -4 degrees Fahrenheit (-20C). Includes 8" and 11" hand strap.
In Stock: Ships Same Day
$46.00
+ Add to Quote
Symbol (SG-WT4023020-06R)
WT4090 Wrist Mount Frzr Opt Long Straps
In Stock: Ships Same Day
$46.00
+ Add to Quote
Motorola (SAC4000-410CES)
Charger Kit (4-Slot, Battery Charger, ES)
In Stock: Ships Same Day
$345.90
+ Add to Quote
Symbol (BTRY-WT40IAB0E)
Battery, 18650, 3.6V, 2330 mAh, NGW
In Stock: Ships Same Day
$71.70
+ Add to Quote
Symbol (BTRY-WT40IAB0H)
Battery (Lithium-Ion, 4600MAH, 3.7V PAN HC) for the 4090
In Stock: Ships Same Day
$98.50
+ Add to Quote

The Symbol WT4090-N3H1GER is also known as Symbol Technologies SYM-WT4090N3H1GER or WT4090N3H1GER .
