Symbol RS309-ZZR Barcode Scanner

The Symbol RS309-ZZR Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol WT4090 - Titan Back-of-the-hand scanner kit, Short Cable, Scanner, Hand Mount, Trigger, Straight Cable
  • Perfect for applications that require direct association with a workstation or a notebook
  • Scan barcodes with a staggering speed of 40 scan/s
Read More

Need a different version? See all Symbol WT4090 Accessories

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Symbol RS309-ZZR Barcode Scanner
Symbol RS309-ZZR Barcode Scanner Symbol RS309-ZZR Barcode Scanner Symbol RS309-ZZR Barcode Scanner Symbol RS309-ZZR Barcode Scanner Symbol RS309-ZZR Barcode Scanner
Symbol RS309-ZZR Barcode Scanner
Symbol RS309-ZZR Barcode Scanner
Symbol RS309-ZZR Barcode Scanner
Symbol RS309-ZZR Barcode Scanner

Symbol WT4090 Accessory Model Overview
Cable, cradle, strap, battery, scanner, charger, holster, mount and more
Symbol RS309-ZZR Barcode Scanner Overview

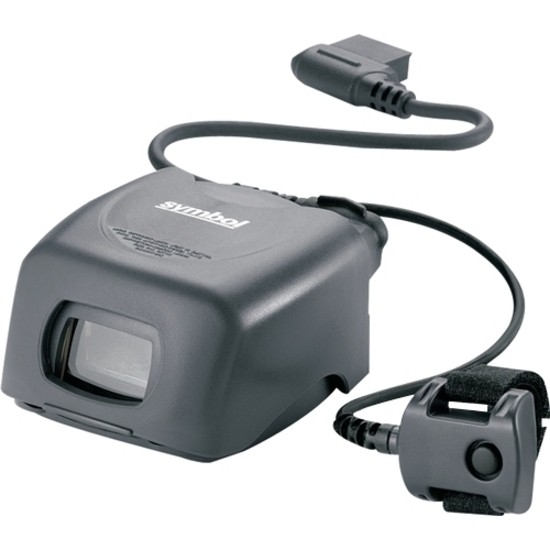

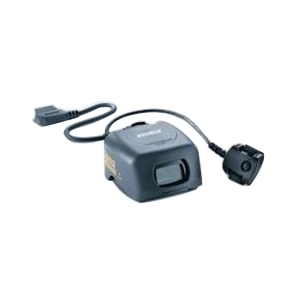

Equip your workers with high-performance hands-free scanning with the RS309 Wearable Scanner from Symbol Technologies. Part of the WT4000 Series Wearable System, the device is worn on the back of the hand, and delivers accurate and dependable scanning as well as all day comfort for workers picking items to fill orders in the warehouse. Regardless of which 1D bar code symbologies you utilize, or even if symbols are poorly printed, damaged or low-contrast, you can depend on superior reliability for the instant capture of information. And with a wide scan range, the RS309 provides the flexibility to meet the needs of multiple applications in your warehouse with a single cost effective device.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

Supports new Reduced Space Symbology (RSS)

Light Source:
Laser
Scan Rate:
40 scan/s
Depth of Field:
  • 7" - 9.5"@5mil - Code 39
  • 9.75" - 15.25"@7.5mil - Code 39
  • 20.25" - 27.25"@13mil - UPC
  • 29.25" - 42.5"@20mil - Code 39
  • 54.5" - 84.75"@55mil - Code 39
Scan Pattern:
Bi-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
3.6 V DC
Physical Characteristics
Form Factor:
Wearable
Height:
1.5"
Width:
2.4"
Depth:
2.7"
Weight (Approximate):
3.50 oz
Miscellaneous
Package Contents:
  • RS309 Wearable Scanner
  • Short Cable to Wrist-Mounted Terminal
  • Trigger Cable
  • Hand Mount
Additional Information:

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Electrical Safety:

  • CSA C22.2 No. 60950-1
  • EN60950-1
  • IEC 60950-1

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC
  • R&TTE
  • Australian AS/NZS 4268

Laser Safety:

  • CDRH Class II
  • IEC 60825-1 Class 2
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol RS309-ZZR Barcode Scanner is also known as SYM-RS309ZZR or RS309ZZR.
