Symbol RS409-SR2000ZLR Barcode Scanner

Zebra RS419-HP2000FLR Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra RS419-HP2000FLR Barcode Scanner.
Symbol WT4090 - Scanner, Ring, 1D Laser, HIP Mounted
  • Perfect for applications that require direct association with a workstation or a notebook
  • Powerful laser scan source provides 116 scan/s decode rate
  • Scan barcodes with a staggering speed of 116 scan/s
Read More

Need a different version? See all Symbol WT4090 Accessories

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Symbol RS409-SR2000ZLR Barcode Scanner
Symbol RS409-SR2000ZLR Barcode Scanner Symbol RS409-SR2000ZLR Barcode Scanner Symbol RS409-SR2000ZLR Barcode Scanner Symbol RS409-SR2000ZLR Barcode Scanner
Symbol RS409-SR2000ZLR Barcode Scanner
Symbol RS409-SR2000ZLR Barcode Scanner
Symbol RS409-SR2000ZLR Barcode Scanner

Symbol WT4090 Accessory Model Overview
Cable, cradle, strap, battery, scanner, charger, holster, mount and more

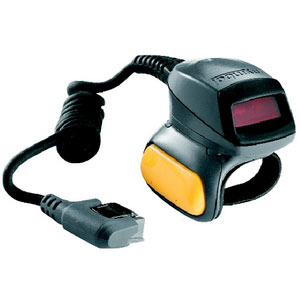

Symbol RS409-SR2000ZLR Barcode Scanner Overview

The tiny RS409 Ring Scanner from Symbol Technologies offers the ideal blend of form and function, allowing unparalleled freedom of movement in scanning, picking, and sorting applications. Part of the WT4000 Series Wearable System, this lightweight device delivers hands-free ergonomic comfort, the latest in scanning technology, and the rugged design to endure everyday use indoors and outdoors. The RS409 can scan near or far, can be worn directly on the finger or over a gloved hand, and is cabled to hip-mounted terminal. It's ideal for a wide range of applications - from workers picking product in a warehouse or processing deliveries in a postal facility, to hospitality workers scanning lift tickets on a ski slope.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

Supports RSS

Light Source:
Laser
Scan Rate:
116 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 4.75" - 8.75"@5mil - Code 39
  • 8.75" - 14.25"@7.5mil - Code 39
  • 13.25"@10mil - Code 39
  • 17.25" - 24.25"@13mil - UPC
  • 21.5" - 35.75"@20mil - Code 39
  • 22.25"@40mil - Code 30
  • 27" - 50.5"@55mil - Code 39
Scan Pattern:
Bi-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
3.6 V DC
Physical Characteristics
Form Factor:
Wearable
Height:
1.9"
Width:
1.4"
Depth:
1.9"
Weight (Approximate):
2 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Electrical Safety:

  • UL60950-1
  • CSA C22.2 No. 60950-1
  • EN60950-1
  • IEC 60950-1

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC
  • R&TT
  • Australian AS/NZS 4268

Laser Safety:

  • CDRH Class II
  • IEC 60825-1 Class 2
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0799665874513
UPC: 799665874513
EAN: 0799665874513
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol RS409-SR2000ZLR Barcode Scanner is also known as SYM-RS409SR2000ZLR or RS409SR2000ZLR.
