Symbol RS309-HP2000FZR Barcode Scanner

Symbol RS309-HP2000FSR Accessory A newer version of this item is available.
It is replaced by the Symbol RS309-HP2000FSR Accessory.
Symbol WT4090 - Titan Back-of-the-hand scanner, Freezer HP
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 40 scan/s
Read More
Discontinued See Replacement
Add to Quote
Symbol WT4090 Accessory Model Overview
Cable, cradle, strap, battery, scanner, charger, holster, mount and more

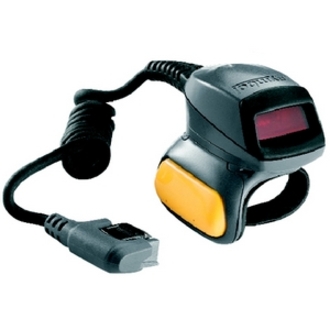

Symbol RS309-HP2000FZR Barcode Scanner Overview

Equip your workers with high-performance hands-free scanning with the RS309 Wearable Scanner from Symbol Technologies. Part of the WT4000 Series Wearable System, the device is worn on the back of the hand, and delivers accurate and dependable scanning as well as all day comfort for workers picking items to fill orders in the warehouse. Regardless of which 1D bar code symbologies you utilize, or even if symbols are poorly printed, damaged or low-contrast, you can depend on superior reliability for the instant capture of information. And with a wide scan range, the RS309 provides the flexibility to meet the needs of multiple applications in your warehouse with a single cost effective device. And when condensation is an issue it offers a field replaceable desiccant pack to absorb moisture and help ensure reliable operation in spite of exposure to wide temperature swings.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

Supports new Reduced Space Symbology (RSS) standard

Light Source:
Laser
Scan Rate:
40 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 7" - 9.5"@5mil - Code 39
  • 9.75" - 15.25"@7.5mil - Code 39
  • 20.25" - 27.25"@13mil - UPC
  • 29.25" - 42.5"@20mil - Code 39
  • 54.5" - 84.75"@55mil - Code 39
Scan Pattern:
Bi-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
3.6 V DC
Physical Characteristics
Form Factor:
Wearable
Height:
1.5"
Width:
2.4"
Depth:
2.7"
Weight (Approximate):
3.50 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Electrical Safety:

  • CSA C22.2 No. 60950-1
  • EN60950-1
  • IEC 60950-1

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC
  • R&TTE
  • Australian AS/NZS 4268

Laser Safety:

  • CDRH Class II
  • IEC 60825-1 Class 2
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol RS309-HP2000FZR Barcode Scanner is also known as SYM-RS309HP2000FZR or RS309HP2000FZR.
