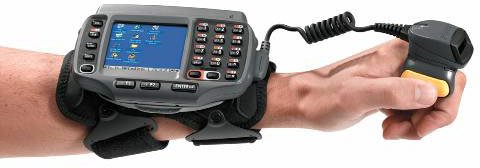

Motorola WT4090-N2S1GER Mobile Handheld Computer
Symbol WT4090 -
WLAN 802.11a/b/g, 2-Color Keypad, 128/128MB, Color non-touch screen, CE PRO 5.0, Standard Battery (Wrist mount & scanner required. See accessories or (Part# WT4090-N2S1GER-KIT)
802.11a/b/g communications!
The Symbol WT4090 is the next generation of wearable data terminal! With 802.11a/b/g communications, the WT4090 is at the top of the industry, continuing Symbol's excellent data terminal line. Standard features include Windows CE operating system and a standard capacity battery.
Technical Information
- Connectivity Technology: Wireless
- Electrostatic Discharge (ESD):
- 15 kV DC Air Discharge
- 8 kV DC Direct Discharge
- 8 kV DC Indirect Discharge
- Drop Specification: 48" To Concrete
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: WT4090
- Product Name: WT4090 Wearable Terminal
Physical Characteristics
- Height: 1"
- Width: 3.7"
- Length: 5.7"
- Weight (Approximate): 11.30 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- WT4090 Wearable Terminal
- Lithium-Ion Battery
- Regulatory Guide
- Quick Start G
- WT4090 Wearable Terminal
- Lithium-Ion Battery
- Regulatory Guide
- Quick Start G
- Certifications & Standards:
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2 No. 60950-1
- EN60950/IEC 60950-1
- EMC:
- FCC Part 15 Subpart B
- ICES-003 Class B
- EN 60601-1-2
- EN 61000-3-2
- EN 61000-3-3
- CISPR 22 Class B
- CISPR 24
- RF:
- FCC Parts 15.247
- FCC Parts 15.407
- FCC Parts 15.205
- FCC Parts 15.207
- FCC Parts 15.209
- FCC Parts 15.203
- EN 300 328
- EN 301 893
- RSS-100
- RSS-210
- ARIB STD-66 & 33
- ARIB STD-T70 & 71
- Additional Information: OS Language: English
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- AES
- LEAP
- PEAP (MS-CHAP v2)
- PEAP-TLS
- TKIP
- TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS-MD5
- TTLS-PAP
- WEP 40 bit
- WEP 128 bit
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: QVGA
- Screen Size: 2.8"
- Display Color: Color
- Screen Resolution: 320 x 240
Battery Information
- Battery Capacity: 2330 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 520 MHz
- Processor Type: XScale
Memory
- Flash Memory: 128 MB
- Standard Memory: 128 MB
Keyboard/Keypad
- Keyboard Type: Alphanumeric
- Number of Keys: 23
Warranty
- Limited Warranty: 1 Year
Software
- Operating System: Windows CE 5.0 Professional
| Brand | Symbol |
| Model | WT4090 |
| RAM Memory | 128MB |
| Operating System | Windows CE 5.0 Pro |
| Processor | 520 MHz Intel XScale |
| Network Connectivity | 802.11g, 802.11a, 802.11a/b/g |
| Drop Rating | 4 ft.1.2 m |
| Style | Wearable |
| Display Resolution | 240 x 320 |
| IP Rating | IP54 |
| Scanner Type | Laser |
| Data Collection Type | Wireless |
Loading...
The Symbol WT4090-N2S1GER is also known as Symbol Technologies SYM-WT4090N2S1GER or WT4090N2S1GER .
