Ruckus 901-7762-US51 Access Point
Ruckus 901-7762-US51 Access Point
Ruckus 901-7762-US51 Access Point

Ruckus 901-7762-US51 Access Point

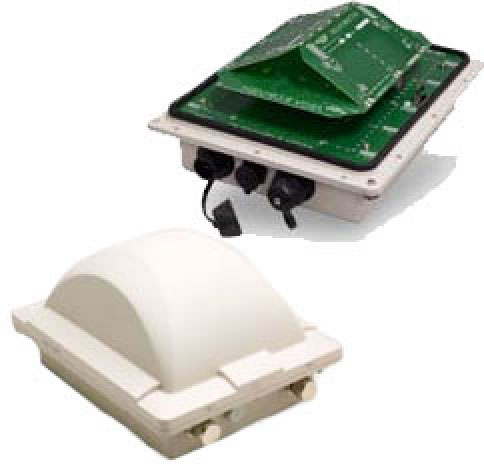

Ruckus ZoneFlex 7762-S - 802.11n Outdoor Wireless Access Point, 2.4GHz and 5GHz concurrent dual band, Dual Ethernet ports, POE in and POE out, IP-67 Outdoor enclosure, -40 to 65C Operating Temperature, 12 element, 120 degree Smart Sector 2.4 GHz antenna, two external antenna connectors for 5GHz operation, including PoE injector with its power adapter (unless specified otherwise for certain countries), and flexible mounting kit. Does not include Limited Lifetime Warranty. This part requires the purchase of WatchDog Support.
The world"s first concurrent 2.4/5GHz 802.11n sector access point.

The Ruckus ZoneFlex 7762-S is the industry"s fi rst 802.11n outdoor access point featuring a long-range, high-gain sectorized smart antenna array for unprecedented range, throughput and reliability at a fraction of the cost of conventional alternatives. The ZoneFlex 7762-S can be centrally managed by the ZoneDirector Smart WLAN controller as part of a unified indoor/outdoor wireless LAN or deployed as a standalone AP and managed individually or through the FlexMaster remote Wi-Fi management system. The Ruckus ZoneFlex 7762-S can simply plug into any Ethernet network and will automatically discover the ZoneDirector. No RF tuning, no client configuration needed. A true plug-and-play outdoor WLAN that is ready to use.

Full specifications (PDF)

Full specifications (PDF)

See all Ruckus ZoneFlex 7762-S options »
Brand Ruckus
Model ZoneFlex 7762-S
Data Transfer Rate 600 Mbps
Antenna Internal - 120 degree, External
Antenna Gain 12 dB, 10 dB
Environment Outdoor
Wi-Fi Band 2.4GHz, 5GHz
MIMO 3x3:2
Radio Count Dual
Power DC, PoE
Wireless Type 802.11a/b/g/n
Mesh Yes

Recommended Accessories for Model: Ruckus ZoneFlex 7762-S Access Point
Ruckus
Ruckus (911-2101-DP01)
One high gain directional antenna, dual-polarized 21DBi gain and 10degrees 3dBm beam width, including one dual plane adjustable wall/pole mounting kit and two 1m RF cables with N-Type connectors.
In Stock
 $299.00
Why don't we show the price?
Ruckus
Ruckus (911-0636-VH01)
Bundle of one 911-0636-VP01 and one 911-0536-HP01
In Stock
 $248.00
Why don't we show the price?
Ruckus
Ruckus (911-1212-DP01)
One 5GHz directional antenna, dual-polarized 12.5dBi gain and 120 degrees 3dBm beam width, including one dual plane adjustable wall/pole mounting kit and two 1m RF cables with N-Type connectors.
In Stock
 $399.00
Why don't we show the price?
Ruckus
Ruckus (911-2401-DP01)
One high gain directional antenna, dual-polarized 24.5dBi V gain/23.5dBi H gain and 7-9 degrees 3dBm beam width, including one dual plane adjustable wall/pole mounting kit and two 1m RF cables with N-Type connectors.
$499.00
Why don't we show the price?
Ruckus
Ruckus (911-0636-VP01)
One 5GHz Omnidirectional antenna, vertically polarized, 5.5dBi, direct attached to N-Type female connector.
$99.00
Why don't we show the price?
All Accessories for the Ruckus ZoneFlex 7762-S »
