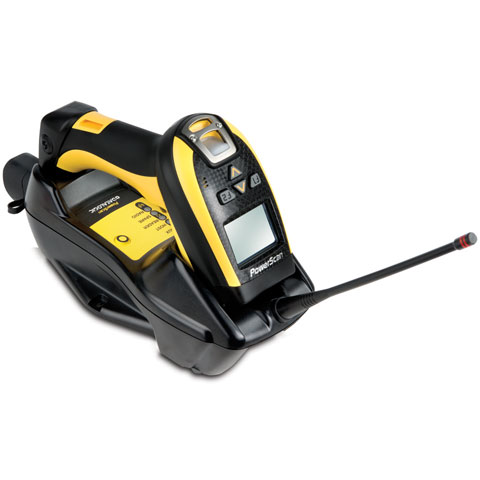

Datalogic PowerScan PM9501 -
Datalogic's PowerScan PM9501-AR is a cordless, rugged, auto-range barcode scanner with extra long barcode scanning capabilities on 1D/2D barcodes. This scanner offers two display options: 4 configurable keys and a full 16 key keyboard. This PM9501-AR scanner that is able to read any kind of barcode, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the barcode resolution. The PM9501-AR uses a soft-pulsed white illumination light that is very gentle on the eyes and less straining for the operator during scan-intensive applications.
Barcode Scanners, Datalogic PowerScan PM9501, 433 MHz, High Performance/Liquid Lens, Ethernet Kit, Removable Battery, Kit includes Scanner, Base Station(Part# BC9180-433), Power Brick (Part# 8-0935) and Power Cord (Part# 6003-0940)
Handheld Imager, Datalogic PowerScan PM9501 USB Kit, 433 MHz, High Performance/Liquid Lens, Display/4-Key Keypad, Removable Battery (Kit includes Scanner, Base Station (Part# BC9030-433), Cable (Part# CAB-438), Power Brick (Part# 8-0935) and Power Cord (Part# 6003-0940).)
Cordless Barcode Scanner, Datalogic PowerScan PM9501, 2D Area Imager, Rugged, Handheld, 910 MHz, Black/Yellow, High Performance Liquid Lens, Removable Battery, USB Kit. Kit inc. Scanner, Base Station BC9030-910, Cable CAB-438, Power Brick 8-0935 and Power Cord 6003-0941
Built for demanding shop floors, warehouses, and other scan-intensive environments, the Datalogic DPM Pro 2D combines rugged craftsmanship with a direct part marking-focused design, a removable battery, and fast 433 MHz cordless operation for reliable day-to-day use. Its 2D high-density imaging and Ethernet-ready multi-interface base support accurate reading of challenging codes while helping streamline data capture across industrial workflows. A durable choice for precise DPM scanning.
Cordless Barcode Scanner, Datalogic PowerScan PM9501, 2D Area Imager, Rugged, Handheld, 910 MHz, Black/Yellow, High Performance, Liquid Lens, 4-Key Display, Removable Battery. Kit inc. Scanner, Base Station BC9030-910, Cable CAB-438, Power Brick 8-0935 and Power Cord 6003-0941.
What is the maximum scanning range of the Datalogic PowerScan PM9501?
The PowerScan PM9501 can read barcodes from contact distance up to 1.0 meter (3.3 feet) away, depending on barcode resolution. Its high-performance Liquid Lens technology enables omnidirectional reading of standard, wide, and high-density codes, ensuring versatile barcode capture across various environments.
How long does the battery last on a single charge?
The PowerScan PM9501 is equipped with a high-capacity Lithium-Ion 3350 mAh battery that delivers 60,000+ reads per charge. The battery can be replaced in just 3 seconds, minimizing downtime during scan-intensive warehouse and logistics operations.
Is the PowerScan PM9501 suitable for harsh warehouse environments?
Yes, the PowerScan PM9501 is built for demanding environments with an IP65 sealing rating that protects against dust and water. It also features drop resistance up to 50 drops from 2.0 meters onto concrete and operates reliably in temperatures ranging from -20 to 50°C, making it ideal for warehouses and outdoor logistics applications.
What wireless communication options are available with the PM9501?
The PowerScan PM9501 offers multiple wireless connectivity options including the Datalogic STAR Cordless System with 433 MHz and 910 MHz radio frequencies, providing open-air ranges of 200 meters and 270 meters respectively. It also supports Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus for seamless network integration.
What display and keyboard options does the PM9501 offer?
The PowerScan PM9501 is available with two display options: a model with 4 configurable keys for basic operations, or a full 16-key keyboard for more complex two-way communication with your host system. This flexibility allows you to choose the interface that best matches your operational requirements.
What makes the PM9501 ergonomic for extended scanning operations?
The PowerScan PM9501 features an ergonomic handle design that reduces wrist strain during extended scan-intensive applications. Combined with soft white light illumination that is gentle on the eyes and an intuitive aiming system, the scanner delivers superior comfort and usability for warehouse staff working long shifts. Contact us today at barcodesinc.com to find the right configuration for your team.
Datalogic PowerScan PM9501 Barcode Scanner Model Overview
The PowerScan™ PM9501 from Datalogic offers an effortless and intuitive scanning experience, designed to enhance productivity in various environments. With its omnidirectional reading capabilities, this high-performance scanner efficiently decodes any type of barcode from contact up to 1.0 m / 3.3 ft away, while the advanced decoding software ensures quick and accurate scanning. Its ergonomic design promises superior comfort and usability, making it ideal for extensive scan-intensive applications. The high-capacity Lithium-Ion battery allows for exceptional performance, ensuring you can rely on the PowerScan PM9501 to meet your operational demands.
Key Features
High-performance Liquid Lens for reading standard, wide, and high-density codes
Omnidirectional scanning for versatile barcode reading
Ergonomic handle reduces wrist strain
User-friendly interface with optional display and customizable keypads
Soft white light illumination for improved visibility
Multiple wireless communication options including Standard and Industrial Ethernet
IP65 rated for protection against dust and water
Specifications
Dimensions: Cradle: 24.0 x 10.8 x 9.5 cm; PM9501: 21.2 x 11.0 x 7.4 cm
Weight: PM9501-XX: 400 g; PM9501-DKXX: 445 g
Battery: Lithium-Ion 3350 mAh, Reads per charge: 60,000+
Radio Frequency: 433 MHz (200 m low speed), 910 MHz (270 m low speed)
Operating Temperature: -20 to 50 °C
Drop Resistance: Up to 50 drops from 2.0 m onto concrete
Sealing Rating: IP65 for dust and water resistance
