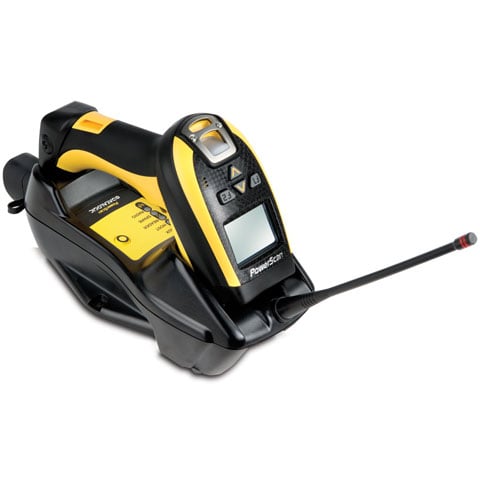

Datalogic PowerScan PM9501 – Barcode Scanner – Scanner with Cable and Cradle
Datalogic PowerScan PM9501 Barcode Scanner Model Overview
The PowerScan™ PM9501 from Datalogic offers an effortless and intuitive scanning experience, designed to enhance productivity in various environments. With its omnidirectional reading capabilities, this high-performance scanner efficiently decodes any type of barcode from contact up to 1.0 m / 3.3 ft away, while the advanced decoding software ensures quick and accurate scanning. Its ergonomic design promises superior comfort and usability, making it ideal for extensive scan-intensive applications. The high-capacity Lithium-Ion battery allows for exceptional performance, ensuring you can rely on the PowerScan PM9501 to meet your operational demands.
Key Features
- High-performance Liquid Lens for reading standard, wide, and high-density codes
- Omnidirectional scanning for versatile barcode reading
- Ergonomic handle reduces wrist strain
- User-friendly interface with optional display and customizable keypads
- Soft white light illumination for improved visibility
- Multiple wireless communication options including Standard and Industrial Ethernet
- IP65 rated for protection against dust and water
Specifications
- Dimensions: Cradle: 24.0 x 10.8 x 9.5 cm; PM9501: 21.2 x 11.0 x 7.4 cm
- Weight: PM9501-XX: 400 g; PM9501-DKXX: 445 g
- Battery: Lithium-Ion 3350 mAh, Reads per charge: 60,000+
- Radio Frequency: 433 MHz (200 m low speed), 910 MHz (270 m low speed)
- Operating Temperature: -20 to 50 °C
- Drop Resistance: Up to 50 drops from 2.0 m onto concrete
- Sealing Rating: IP65 for dust and water resistance
- Connectivity: Ethernet, USB, RS-232, and more
Frequently Asked Questions
What is the maximum scanning range of the Datalogic PM9501 barcode scanner?
The PM9501 can read barcodes from contact distance to over 1.0 meter (3.3 feet), depending on barcode resolution and print quality. For example, 40-mil resolution codes scan up to 85 cm (33.4 inches), while smaller 4-mil codes have a range of 6.0 to 17.0 cm (2.3 to 6.7 inches). This extended range makes it ideal for warehouse and logistics applications where scanning distances vary.
Does the PM9501 read both 1D and 2D barcodes?
Yes, the PM9501 is a 2D area imager that reads both 1D linear barcodes and 2D codes like Data Matrix and PDF417, regardless of barcode orientation. Its omnidirectional reading capability means you can scan codes at any angle without repositioning, improving operator efficiency in fast-paced environments.
What connectivity options does this kit include?
This RS-232 kit includes the PM9501 scanner, a BC9030-433 communication base for 433 MHz wireless connectivity, an RS-232 cable (CAB-433), a power brick (8-0935), and power cord (6003-0940). The 433 MHz STAR Cordless System provides reliable narrow-band radio communications optimized for warehouse data collection applications.
What are the keyboard options available on the PM9501?
The PM9501 offers two display configurations: a model with 4 configurable keys for basic scanning operations, or a full 16-key keyboard model for applications requiring two-way communication with the host system. The keyboard option enables more complex data entry and host interaction for advanced inventory management scenarios.
Is the PM9501 suitable for high-volume scanning environments?
Yes, the PM9501 is designed for scan-intensive applications with soft-pulsed white illumination that reduces eye strain during extended use. Its motion tolerance of 90 cm per second and fast decoding software enable reliable reading in fast-paced warehouse and logistics operations.
What makes the PM9501 rugged for warehouse use?
The PM9501 combines cordless mobility with rugged construction designed for demanding warehouse environments. Its omnidirectional reading, soft-pulsed illumination for reduced operator fatigue, and the reliable STAR Cordless System make it well-suited for inventory scanning, order fulfillment, and logistics operations. Contact us today to learn more about deployment options for your warehouse.
