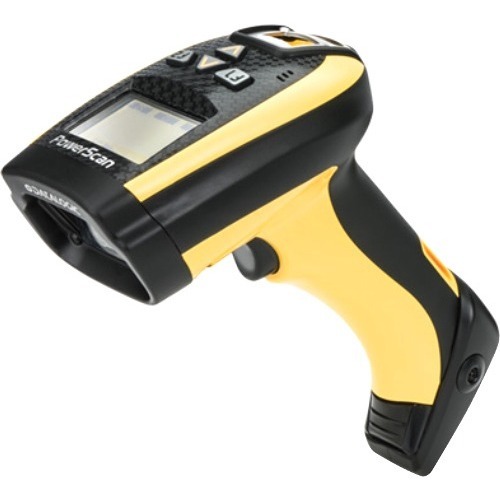

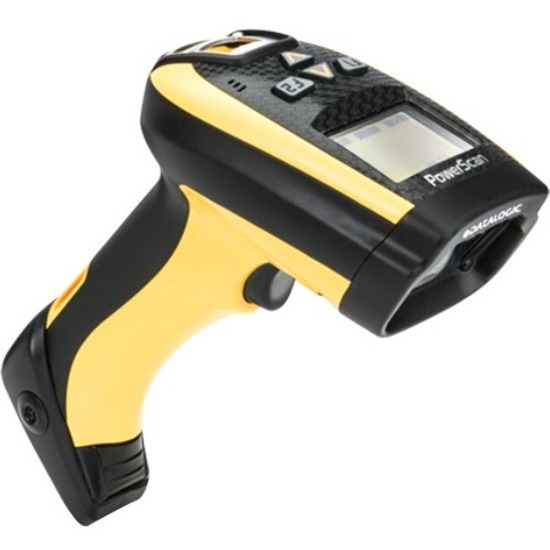

Datalogic PM9501-910RB Barcode Scanner

The Datalogic PM9501-910RB Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic PowerScan PM9501 - Cordless Barcode Scanner, Datalogic PowerScan PM9501, 2D Area Imager, Rugged, Handheld, 910 MHz, Multi-Interface Connection, SCANNER ONLY, Black/Yellow, Standard Range, Standard Optic, Removable Battery
Connectivity
Cordless
Form Factor
Handheld
Interface Options
Bluetooth
Scanner Capability
2D
Scanner Type
Imager
Scan Range
Standard Range
  • Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
  • Allows productive and precise reading of 1D barcodes
  • Streamline your business processes with an imager that point-shoots with high-performance scanning
  • Increases productivity by giving the opportunity to wander, without the tangle of cables
Read More

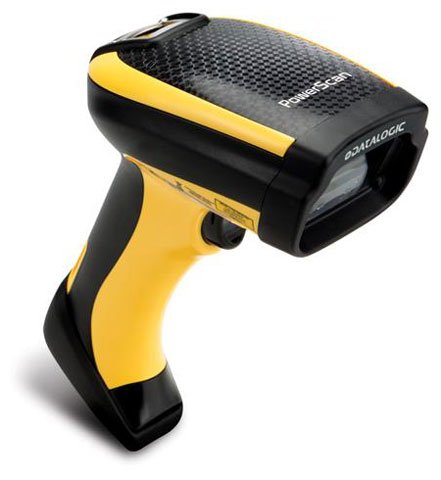

Datalogic PowerScan PM9500 Barcode Scanner Model Overview
AIM, TRIGGER, DECODE: IT’S THAT SIMPLE!
An intuitive and effortless scanning experience is the target of the PowerScan™ 9500 series. They combine omnidirectional reading capabilities with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic’s latest decoding software guarantees snappy reading in any type of environment.

Key Features:
  • High-performance Liquid Lens allows one model to read standard, wide and high density codes
  • Snappy omnidirectional reading
  • Intuitive aiming system
  • Soft white light illumination
  • Available with optional display and 4 or 16-key keyboards
  • High speed 433 MHz and 910 MHz radio communications
  • Point-to-point and multi-point transmission
  • Networking and seamless roaming
  • Multiple interfaces available
  • Ethernet Connectivity (Standard and Industrial)
  • Lithium-Ion battery replaces in 3 seconds!
  • Datalogic’s Motionixâ„¢ motion-sensing technology
  • Ergonomic shape
  • Datalogic’s 3GLâ„¢ (3 Green Lights) technology and loud beeper for good-read feedback
  • Water and Particulate Sealing Rating: IP65
  • In-field replaceable window and cradle contacts
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI


MOBILITY ENHANCES PRODUCTIVITY
The Datalogic STAR Cordless Systemâ„¢ for narrow-band radio communications was developed specifically to maximize efficiency and reliability for handheld scanner data collection applications. The PowerScan PM9500 models are equipped with a new generation of the STAR-System that further improves the already outstanding features of versatility, ease of use and radio range.

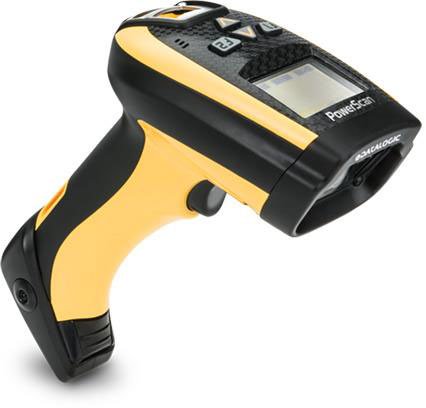

The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.

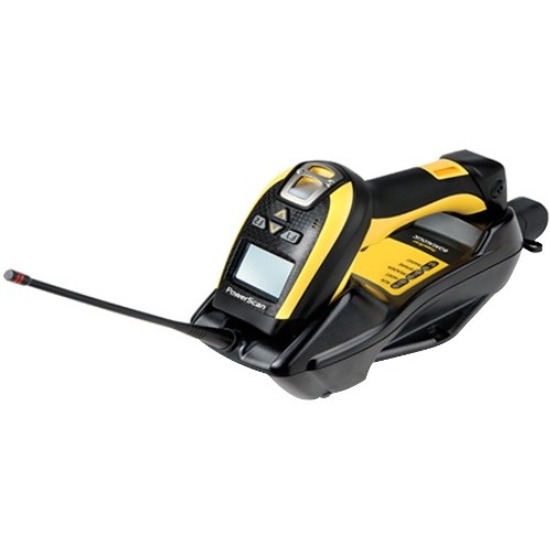

The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.

DEVELOPED WITH THE USER IN MIND
Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort.

The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.

INDUSTRY - APPLICATION â€¢ Entertainment: • Access Control • Mobile Coupons • Ticket Validation • Security / Age Verification • Lottery • Manufacturing Shop Floor: • Work-in-Progress • Sub-Assembly • Component Tracking • Quality Control • Time and Cost Analysis • Machine Replenishment /Configuration • Line Inventory Control • Warehouse and Logistic Centers: • Shipping / Receiving • Parcel Preparation • Picking / Put Away • Automatic Sorting Back-Up • End of Line Sorting

Datalogic PM9501-910RB Barcode Scanner Overview

Enhance your user experience

The range-topping PowerScan 9500 series of corded and cordless handheld scanners from Datalogic are designed and built for the most demanding applications and environments. These feature-rich 1D and 2D imagers offer rugged build quality for use in Manufacturing, Transportation & Logistics, Retail, and Healthcare. Outstanding robustness and excellent reading performance are the key reasons for the long-standing success of the PowerScan 9500 model variants, providing speed and reliability when managing goods and tracking parts or materials. The omnidirectional and long-range scanning capabilities let you read all types of codes from any angle, with perfect good-read feedback every time. The PowerScan DPM models include the latest optics and software from Datalogic, to make the reading of codes with DPM easier and more intuitive. There are enough connectivity and networking options to suit all your needs. Your job is simple: aim, trigger, decode.

Keep on working

The PowerScan 9500 series performance is unmatched in the handheld scanner sector. Each unit is built to last and the model is tested to an incredible 10 million trigger hits. You can work comfortably from shift to shift, with the full knowledge that the IP65 rating will keep you free from particulate contamination and water ingress, as well as the ability to withstand at least 50 drops onto concrete from a height of 2 m. This resilience ensures that you get the lowest possible total cost of ownership as your PowerScan continues to perform day in and day out. The scanner window, cradle contacts, and battery are all easily replaceable in the field so that you can keep on working with minimal disruption. The PowerScan 9500 range is the only scanner you will need.

Focus on technology

The PowerScan 9500 range is extensive enough to cover the most diverse applications. Whether you require a wired or cordless model, with or without physical keys, or require long distance code reading capability, there is a model to suit your needs. Datalogic has equipped the PowerScan 9500 series with 3GL (Three Green Lights) technology to ensure optimum good-read feedback. With the unique Green Spot visual feedback on the object you are scanning, you also have a direct visual green indicator feedback on the top and rear of the unit. All of this is accompanied with a loud beep when the operator is working in conditions where visibility is poor. The reading performance is further enhanced on models equipped with liquid lens technology for reading of combined standard, wide, and high-density codes.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D :
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D :
  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanner Range:
Standard Range
Display Screen:
Yes
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
40°
Reading Angle (Pitch):
40°
Reading Angle (Roll):
360°
Image Formats:
  • BMP
  • JPEG
  • TIFF
Maximum Ambient Light:
100000 lux
Drop Specification:
Cradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface
All models: Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface

Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
7.5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
10 mil
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
  • Keyboard Wedge
  • Serial
  • USB
  • Ethernet
Battery Information
Battery Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Product Color:
  • Yellow
  • Black
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Ticketing
  • Manufacturing
  • Asset Tracking
  • Inventory
  • Warehouse
  • Logistics
  • Picking
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PM9501-910RB Barcode Scanner is also known as DTL-PM9501910RB or PM9501910RB.
