The PowerScan™ PM9600 Datalogic handheld industrial scanner offers unparalleled performance in 1D/2D barcode reading, seamlessly integrating into tough industrial environments. With its ultra-rugged design and ergonomic shape, this scanner minimizes operator strain while maximizing efficiency. The intuitive aiming system guarantees high first-pass reading rates, while the cordless model, featuring Datalogic's STAR Cordless System™, ensures freedom of movement and safety. Its advanced battery life management allows for multiple shifts of intensive scanning, making it the ideal choice for manufacturing, warehousing, and logistics operations.
Key Features
Ultra-Rugged Design for industrial durability
Ergonomic Shape that reduces operator stress
Advanced Aiming System for highest first-pass reading rates
Datalogic's STAR Cordless System™ for improved mobility
Wireless Charging System for hassle-free maintenance
IP65 and IP67 Ratings for water and dust resistance
Specifications
Communication: Datalogic STAR Cordless System™, 433/910 MHz
Reading Capability: 1D, 2D, Postal Codes, Stacked Codes
Display: 1.8" OLED with user-selectable font dimensions
Battery: Lithium-Ion, 3350 mAh
Weight: PM9600-D/DK: 425g - 455g
Operating Temperature: -20°C to 50°C
Drop Resistance: Withstands 50 drops from 2.5m
Warranty: 3-Year Factory Warranty

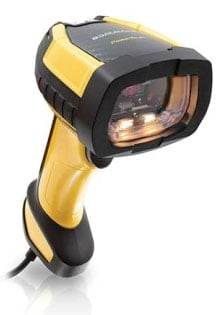

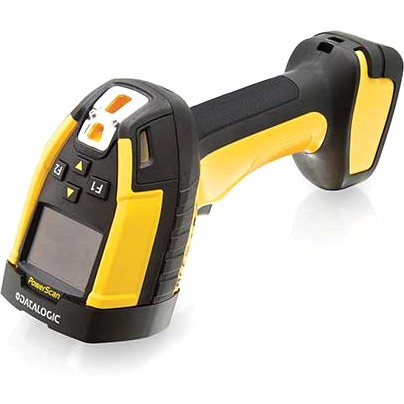

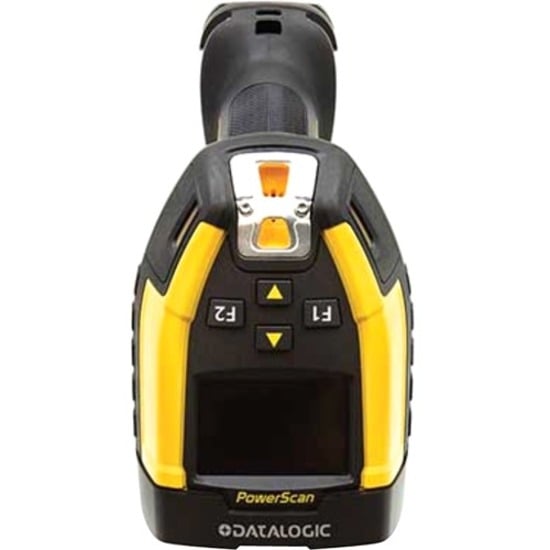

Datalogic PM9600-SR910RB Barcode Scanner Overview
ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS
The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.
MOBILITY ENHANCES PRODUCTIVITY
The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.
MODULARITY WITH THE BEST FLEXIBILITY
The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
What barcode types can the Datalogic PM9600-SR910RB scanner read?
The PM9600 Standard Range scanner reads both 1D linear codes (including GS1 DataBar) and 2D codes such as Data Matrix, QR Code, Aztec Code, and PDF417. It also supports postal codes and stacked codes, making it versatile for most warehouse and logistics applications. We offer this model with the capability to autodiscriminate across all standard barcode formats.
What is the wireless range of the PM9600-SR910RB at 910 MHz?
Operating at 910 MHz, the PM9600-SR910RB provides a wireless range of up to 100 meters (328 feet) in open air with Datalogic's STAR 2.0 Cordless System. This extended range makes it ideal for large warehouse environments where mobility and signal strength are critical. The system also supports seamless roaming and two-way communications for complex installations.
How long does the removable battery last on a single charge?
The PM9600-SR910RB features a Lithium-Ion 2150 mAh removable battery that delivers 30,000+ continuous reads per charge. The battery charges in approximately 4 hours with external power or 10 hours when powered through the host connection. This extended battery life minimizes downtime during typical warehouse shifts.
What makes the Datalogic PM9600 different from the PM9500 series?
The PM9600 offers three distinct performance levels to match your application needs: Standard Range with single camera for conventional reading distances, High Performance with dual cameras for longer-distance reading, and exclusive Document Capture methodology for color photographs. In contrast, the PM9500 series provides fixed configurations without this flexibility. Contact us today to determine which variant best fits your operation.
Does the PM9600-SR910RB work in harsh warehouse environments?
Yes, the PM9600 is built to withstand extreme environmental conditions and is suitable for the toughest industrial applications. It features Datalogic's mild white light illumination and exclusive 'Green Spot' technology that successfully reads even damaged or dirty barcodes. This durability makes it reliable for demanding warehouse, logistics, and manufacturing environments.
What reading indicators does the PM9600 provide for successful scans?
The PM9600 features Datalogic's 3GL™ (Three Green Lights) technology with dual good-read LEDs and an adjustable beeper for confirmation feedback. The distinctive 'Green Spot' illuminates directly on the scanned barcode to provide clear visual confirmation of successful reads. These multiple feedback mechanisms reduce scanning errors and improve operator efficiency in high-volume environments.
The Datalogic PM9600-SR910RB Barcode Scanner is also known as
DTL-PM9600SR910RB
or PM9600SR910RB.
