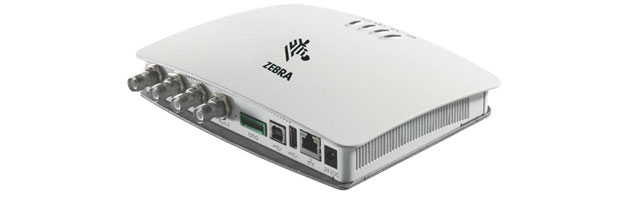

Zebra FX7500 RFID Reader
Zebra FX7500 -
Zebra's FX7500 Fixed RFID Reader introduces advanced RFID radio technology for faster, more accurate read rates and more consistent performance even in challenging environments. The FX7500 radio is paired with a more flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment with RFID and back-end applications. The result is a fixed RFID reader that sets a new performance standard ? delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point. The FX7500 features all-new high performance radio technology, 2-port and 4-port reader configurations, 512 MB Flash/256 MB RAM, and more.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$954.91
Get help from a Barcoding Expert!
Accessories For Zebra FX7500 RFID Reader
Operating System
- Linux (4)
RAM Memory
- 256 MB (4)
Style
- Fixed (4)
Frequency
- UHF (4)
GPIO
- GPIO (4)
Category
Zebra FX7500 RFID Reader Options
-
Zebra FX7500-42320A50-US RFID Reader
RFID Reader, Zebra FX7500, UHF Frequency, Ethernet / USB / USB Host, Linux, Fixed , US Only, Cables and Accessories Sold Separately, General Purpose, PoE/PoE+, DC Power Supply, Opto-isolated (3,2) GPIO, Generation 2In Stock$1,050.07 -
Zebra FX7500-22320A50-US RFID Reader
RFID Reader, Zebra FX7500, UHF Frequency, Ethernet/USB/USB Host, Linux, Fixed , US Only, Cables and Accessories Sold Separately, General Purpose, PoE/PoE+, DC Power Supply, Opto-isolated (3,2) GPIO, Generation 2In Stock$1,124.78 -
Zebra FX7500-22320A56-US RFID Reader
RFID Reader, Zebra FX7500, UHF Frequency, PoE/PoE+, No USB Hub, Linux, Fixed, Rugged, 2-Port, DC Power Supply, Zebra NGE Radio, 900 MHz Frequencies + Japan License Station, 4 Input/4 Output, US$968.36 -
Zebra FX7500-42320A5S-US RFID Reader
RFID Reader, Zebra FX7500, UHF/902 MHz 28 MHz, Linux, Fixed, General Purpose, Ethernet PoE/PoE+/USB/USB Host, DC Power Supply, Zebra NGE Radio, 902-928 + Japan License Station, Opto-isolated (3,2) GPIO, Cables and Accessories Sold Separately, US$1,050.07 -
Zebra FX7500-42320A56-US RFID Reader
RFID Reader, Zebra FX7500, UHF Frequency, PoE/PoE+, No USB Hub, Linux, Fixed, Rugged, 4-Port, DC Power Supply, Zebra NGE Radio, 900 MHz Frequencies + Japan License Station, 4 Input/4 Output, US$1,050.07 -
Zebra FX7500-22325A50-WR RFID Reader
RFID Reader, Zebra FX7500, UHF Frequency, Ethernet/USB/USB Host, Linux, Fixed, Worldwide (Except US), Cables and Accessories Sold Separately, General Purpose, PoE/PoE+, DC Power Supply, Opto-isolated (3,2) GPIO, Generation 2 -
Zebra FX7500-42325A50-WR RFID Reader
RFID Reader, Zebra FX7500, UHF Frequency, Ethernet / USB / USB Host, Linux, Fixed , Worldwide (Except US), Cables and Accessories Sold Separately, General Purpose, PoE/PoE+, DC Power Supply, Opto-isolated (3,2) GPIO, Generation 2 -
Zebra FX7500-42325A56-WR RFID Reader
RFID Reader, Zebra FX7500, UHF Frequency, PoE/PoE+, No USB Hub, Linux, Fixed, Rugged, 4-Port, DC Power Supply, Zebra NGE Radio, 4 Input/4 Output, Worldwide
Zebra FX7500 RFID Reader Model Overview
The FX7500 Fixed RFID Reader by Zebra is engineered for business-class environments, offering advanced radio technology to optimize performance. With its ability to read over 1200+ tags per second in dense environments, the FX7500 ensures your operations run smoothly and efficiently. Designed for quick deployment and easy management, this reader is perfect for a variety of industries including warehousing, retail, and manufacturing. Its robust features such as integrated Power over Ethernet (POE) and support for global RFID standards provide flexibility and future-proofing for your investments.
Key Features
Specifications
Key Features
- All-new high-performance radio technology with up to 1200+ tags/sec in dense reader mode.
- Integrated Power Over Ethernet (POE) and multi-connectivity options (USB, Wi-Fi, Bluetooth).
- Easy deployment with a simple bracket installation and auto-configuration capabilities.
- Flexible configuration options for optimizing read coverage.
- Plenum Area Rated for installation in air handling locations.
Specifications
- Physical Characteristics:
- Dimensions: 7.7 in. L x 5.9 in. W x 1.7 in. D
- Weight: 1.9 lbs (0.86 kg)
- Housing Material: Die-cast aluminum, sheet metal, and plastic
- Operating Environment:
- Operating Temperature: -4° to +131° F (-20° to +55° C)
- Storage Temperature: -40° to +158° F (-40° to +70° C)
- Humidity: 5-95% non-condensing
- Power Supply:
- 10 dBm to +31.5 dBm (POE+, external DC)
- Supports 12V-48V DC operation
- Connectivity:
- 10/100 BaseT Ethernet w/ POE support
- USB Client and Host Ports
- Warranty: 1-year warranty against defects
