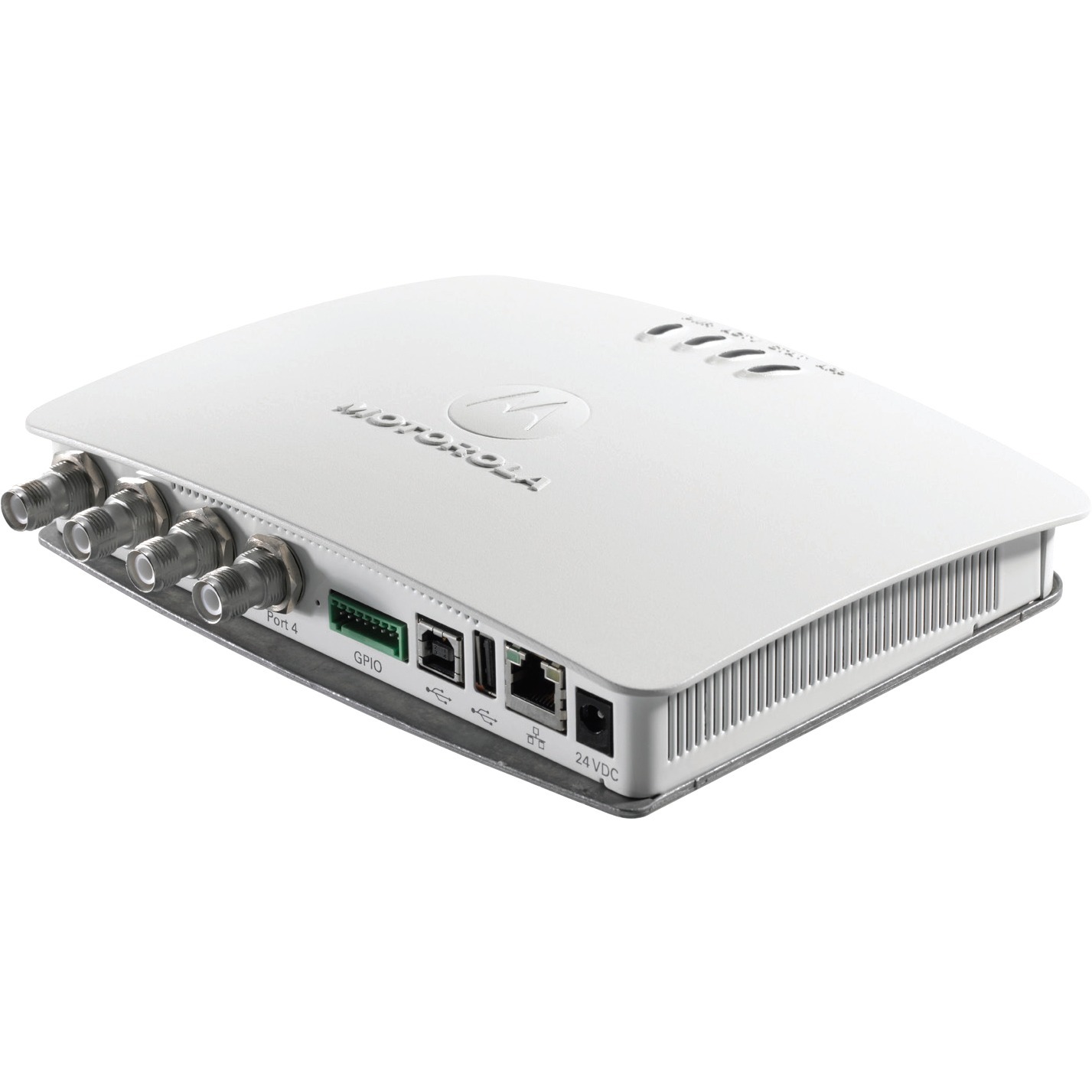

Zebra FX7500-42325A50-WR RFID Reader

Part Number: FX7500-42325A50-WR
Model: FX7500
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Product Material
AluminumMetalPlastic
Height
1.7"
Width
7.7"
Depth
5.9"

Product Description:

  RFID Reader, Zebra FX7500, UHF Frequency, Ethernet / USB / USB Host, Linux, Fixed , Worldwide (Except US), Cables and Accessories Sold Separately, General Purpose, PoE/PoE+, DC Power Supply, Opto-isolated (3,2) GPIO, Generation 2
Explore all Zebra FX7500 RFID Readers
Add to Quote
Zebra FX7500-42325A50-WR RFID Reader
Zebra FX7500-42325A50-WR RFID Reader
Zebra FX7500-42325A50-WR RFID Reader Zebra FX7500-42325A50-WR RFID Reader
Full specifications (PDF)

Zebra FX7500 RFID Reader Model Overview

The FX7500 Fixed RFID Reader by Zebra is engineered for business-class environments, offering advanced radio technology to optimize performance. With its ability to read over 1200+ tags per second in dense environments, the FX7500 ensures your operations run smoothly and efficiently. Designed for quick deployment and easy management, this reader is perfect for a variety of industries including warehousing, retail, and manufacturing. Its robust features such as integrated Power over Ethernet (POE) and support for global RFID standards provide flexibility and future-proofing for your investments.

Key Features
  • All-new high-performance radio technology with up to 1200+ tags/sec in dense reader mode.
  • Integrated Power Over Ethernet (POE) and multi-connectivity options (USB, Wi-Fi, Bluetooth).
  • Easy deployment with a simple bracket installation and auto-configuration capabilities.
  • Flexible configuration options for optimizing read coverage.
  • Plenum Area Rated for installation in air handling locations.


Specifications
  • Physical Characteristics:
    • Dimensions: 7.7 in. L x 5.9 in. W x 1.7 in. D
    • Weight: 1.9 lbs (0.86 kg)
    • Housing Material: Die-cast aluminum, sheet metal, and plastic
  • Operating Environment:
    • Operating Temperature: -4° to +131° F (-20° to +55° C)
    • Storage Temperature: -40° to +158° F (-40° to +70° C)
    • Humidity: 5-95% non-condensing
  • Power Supply:
    • 10 dBm to +31.5 dBm (POE+, external DC)
    • Supports 12V-48V DC operation
  • Connectivity:
    • 10/100 BaseT Ethernet w/ POE support
    • USB Client and Host Ports
  • Warranty: 1-year warranty against defects
Zebra FX7500-42325A50-WR RFID Reader Overview
BETTER PERFORMANCE.
BETTER VALUE.

The new FX7500 Fixed RFID Reader introduces advanced Motorola Solutions-designed RFID radio technology for faster, more accurate read rates and more consistent performance even in challenging environments. The new radio is paired with a more flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment with RFID and back-end applications. The result is a fixed RFID reader that sets a new performance standard - delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point.

The FX7500 comes in a sleek, attractive form factor with a low profile and compact footprint, at home in nearly any business environment. It also looks good on the balance sheet, with an impressive array of integrated features and functionality that pack value for your business class applications.
Full specifications (PDF)
Physical Characteristics
Product Material:
  • Aluminum
  • Metal
  • Plastic
Height:
1.7"
Width:
7.7"
Depth:
5.9"
Weight (Approximate):
1.90 lb
Miscellaneous
Additional Information:
Network Connectivity:
  • 10/100 BaseT Ethernet - RJ45 with POE support
External Interfaces:
  • USB Host - USB Type A, USB Client - USB Type B
Read Points:
  • FX 7500-2: 2 mono-static ports (Reverse Polarity TNC)
  • FX 7500-4: 4 mono-static ports (Reverse Polarity TNC)
Power Supply:
  • POE, POE+ or +24V DC (UL Approved)
  • 12V-48VDC operation can be supported
Memory Flash:
  • 512 MB; DRAM 256 MB
Firmware Upgrade:
  • Web-based and remote firmware upgrade capabilities
Management Protocols:
  • RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding)
  • RDMP
Country of Origin:
Mexico
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0024606621216
UPC: 024606621216
EAN: 0024606621216
UNSPSC: 43211710
