Full specifications (PDF)
Product Material:
- Aluminum
- Metal
- Plastic
Height:
1.7"
Width:
7.7"
Depth:
5.9"
Weight (Approximate):
1.90 lb

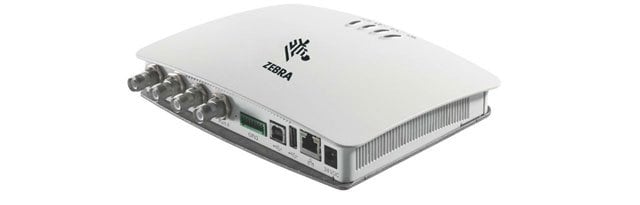

Zebra FX7500 RFID Reader Model Overview
Zebra's FX7500 Fixed RFID Reader introduces advanced RFID radio technology for faster, more accurate read rates and more consistent performance even in challenging environments. The FX7500 radio is paired with a more flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment with RFID and back-end applications. The result is a fixed RFID reader that sets a new performance standard ? delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point. The FX7500 features all-new high performance radio technology, 2-port and 4-port reader configurations, 512 MB Flash/256 MB RAM, and more.
Zebra FX7500-42320A50-US RFID Reader Overview
BETTER PERFORMANCE.
BETTER VALUE.
The new FX7500 Fixed RFID Reader introduces advanced Motorola Solutions-designed RFID radio technology for faster, more accurate read rates and more consistent performance even in challenging environments. The new radio is paired with a more flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment with RFID and back-end applications. The result is a fixed RFID reader that sets a new performance standard - delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point.
The FX7500 comes in a sleek, attractive form factor with a low profile and compact footprint, at home in nearly any business environment. It also looks good on the balance sheet, with an impressive array of integrated features and functionality that pack value for your business class applications.
BETTER VALUE.
The new FX7500 Fixed RFID Reader introduces advanced Motorola Solutions-designed RFID radio technology for faster, more accurate read rates and more consistent performance even in challenging environments. The new radio is paired with a more flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment with RFID and back-end applications. The result is a fixed RFID reader that sets a new performance standard - delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point.
The FX7500 comes in a sleek, attractive form factor with a low profile and compact footprint, at home in nearly any business environment. It also looks good on the balance sheet, with an impressive array of integrated features and functionality that pack value for your business class applications.
Physical Characteristics
Miscellaneous
Additional Information:
Network Connectivity:
- 10/100 BaseT Ethernet - RJ45 with POE support
- USB Host - USB Type A, USB Client - USB Type B
- FX 7500-2: 2 mono-static ports (Reverse Polarity TNC)
- FX 7500-4: 4 mono-static ports (Reverse Polarity TNC)
- POE, POE+ or +24V DC (UL Approved)
- 12V-48VDC operation can be supported
- 512 MB; DRAM 256 MB
- Web-based and remote firmware upgrade capabilities
- RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding)
- RDMP
Country of Origin:
Mexico
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0053926225576
UPC:
053926225576
EAN:
0053926225576
UNSPSC:
43211710
Recommended Accessories for Model: Zebra FX7500 RFID Reader
Category
- RFID Antenna (12)
- Power Device (8)
- Cables, Connectors, and Adapters (5)
- Mounting Hardware and Stands (2)
- Access Point Accessories (1)
- Miscellaneous (1)
- Mobile Computer Accessories (1)
- Data Networking Device (1)
Recommended Accessories for Model: Zebra FX7500-42320A50-US RFID Reader
RFID Antenna
AN720 RFID Antenna, UHF, Indoor, Near Field, 3 dBiL Gain, Left-Hand Circular Polarization, US Frequency.
In Stock
$227.54
AN610 Slimline Ultra Low Prof Antenna 10.8 X8.4 X.47 US Fre
In Stock
$268.70
AN620 RFID Antenna, UHF, Indoor, Far Field, Left-Hand Circular Polarization, 4 dBiL Gain, Industrial, Slimline Ultra Low Profile, 15.4 x 10.8 x 0.47, US Frequency.
In Stock
$289.07
Antenna, 1 Port, General Purpose, Wide-Band-Left, Pig-Tail, Left-Hand Circular Polarization, RoHS. Worldwide
$218.95
Antenna, 1 Port, General Purpose, Wide-Band-Right, Pig-Tail, Right Hand Circular Polarization, RoHS. Worldwide
$253.71
AN610 RFID Antenna, UHF, Indoor, Industrial, Slimline Ultra Low Profile, 10.8 x 8.4 x 0.47, European Frequency.
$261.81
AN440 RFID Antenna, UHF, Outdoor or Indoor, High Performance, Dual Antenna.
$301.47
Antenna (Outdoor, Right) For The Ar400 and Xr400
Power Device
Power Systems & Supplies, Motorola, AC line cord, 7.5 feet long, grounded, three wire. Associated Country: US
In Stock
$18.21
Power Systems & Supplies, Zebra, Level VI AC/DC Power Supply Brick with Captive DC Cable. AC Input: 100-240V, 1.4Adc Output: 24V, 3.25A, 78W, -20 To +55 Degrees C, Requires 23844-00-00R
In Stock
$90.10
Power Systems & Supplies, Motorola, AC Line Cord, 1.9M, grounded, three wire, AS 3112 plug. Associated Country: Australia, New Guinea
$17.77
Power Systems & Supplies, Motorola, AC Line Cord, 1.8M, grounded, three wire CEE 7/7plug. Associated Countries: Europe, Abu Dhabi, Bolivia, Dubai, Egypt, Iran, Korea, Russia, Vietnam
$17.82
Power Systems & Supplies, Motorola, AC Line Cord, 1.8M, three wire, grounded BS1363 plug. Associated Countries: Hong Kong, Iraq, Malaysia, Singapore, United Kingdom
$21.45
AC Line Cord, 1.8M grounded, CIE 23-16 plug. Zebra/Motorola Enterprise AC Line Cord, 1.8 Meters Grounded, CIE 23-16 Plug, Use With Power Supply KT-14000-148R or 50-14000-241R.
$21.45
Cord:Pwr S. Korea Cont Europe Cee7
Cables, Connectors, and Adapters
Cables, Connectors, And Adapters, Zebra, AC Line Cord, 1.8M, Grounded, USA Nema 5-15P. Associated Country: United States.
In Stock
$22.12
Cables, Connectors, and Adapters, Motorola, RF Cable 68" , Cable Type LMR 240
In Stock
$72.08
Cable, 15 Feet, RPTNC-N Male, Straight, LMR-240, Compatible with the XR400.
In Stock
$83.74
Cables, Connectors, and Adapters, Motorola, RF Cable 240", Cable Type LMR 240
In Stock
$95.40
Cables, Connectors, and Adapters, Zebra, IP67 Rated Cable for An510, 14 Inches, R-Tnc, Sma, Lm-195
$60.42
Mounting Hardware and Stands
Standard Mount Bracket for High Perform Area Antenna. RoHS Compliant.
In Stock
$101.76
Mounting Hardware & Stands, Motorola, Antenna, Heavy Duty 16" Mount Bracket for AN400 and AN480 Antenna
In Stock
$164.82
Access Point Accessories
Single Port Poe Injector High Power Gigabit
Miscellaneous
Kit (Industrial 24 Mount Bracket HP Area Antenna)
Mobile Computer Accessories
POWER SUPPLY (BRICK W/CAPTIVE DC CABLE), AC INPUT: 100-240V, 1.4A DC OUTPUT: 24V, 3.25A, 78W, REQUIRES AC LINE CORD (P/N 23844-00-00R).
Data Networking Device
SLIM IP67-RATED RFID ANTENNA FOR INDOOR/OUTDOOR USE, FLUSH MOUNT, FCC FREQ., SIZE: 9.8" X 9.8"
In Stock
$218.95
Protect Your Product
-
Zebra Z1B5-EMF5KX-1000 Service ContractZebra OneCare Service, EMF5KX, 8 X 5 Software Support, Purchased 30 Days Or More Of Hardware, 1 Year, Non-Comprehensive, Standard Logistics, DashboardIn Stock$25.68 -
Zebra Z1B5-EMF1KX-1000 Service ContractZebra OneCare Service, EMF1KX, 8 X 5 Software Support, Purchased 30 Days Or More Of Hardware, 1 Year, Non-Comprehensive, Standard Logistics, DashboardIn Stock$27.34 -
Zebra Z1B5-EMF250-1000 Service ContractZebra OneCare Service, EMF250, 8 X 5 Software Support, Purchased 30 Days Or More Of Hardware, 1 Year, Non-Comprehensive, Standard Logistics, DashboardIn Stock$28.98 -
Zebra Z1B5-EMF5KX-3000 Service ContractZebra OneCare Service, EMF5KX, 8 X 5 Software Support, Purchased 30 Days Or More Of Hardware, 3 Year, Non-Comprehensive, Standard Logistics, DashboardIn Stock$54.60 -
Zebra Z1B5-EMF1KX-3000 Service ContractZebra OneCare Service, EMF1KX, 8 X 5 Software Support, Purchased 30 Days Or More Of Hardware, 3 Year, Non-Comprehensive, Standard Logistics, DashboardIn Stock$61.95
Get help from a Barcoding Expert!
The Zebra FX7500-42320A50-US RFID Reader is also known as
MOT-FX750042320A50US
or FX750042320A50US.
