Ruckus 901-7762-WW01 Access Point

The Ruckus 901-7762-WW01 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Ruckus ZoneFlex 7762 - Ruckus Wireless ZoneFlex 7762 IEEE 802.11n 600 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Pole-mountable, Wall Mountable, Ceiling Mountable
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • With IEEE 802.11n standard and up to 600 Mbit/s data transfer rates, this wireless access point enables efficient network performance
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
Read More
Discontinued Need Assistance?
Add to Quote

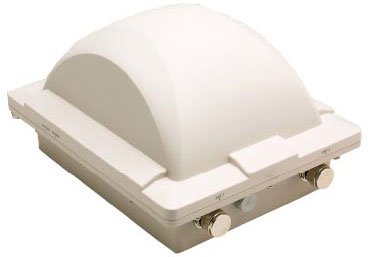

Ruckus ZoneFlex 7762 Access Point Model Overview
The ZoneFlex 7762 uniquely combines dynamic beamforming, adaptive meshing and the power of 802.11n to enable a new level of outdoor performance at the lowest cost. Built to withstand the harshest of outdoor conditions, Ruckus designed the ZoneFlex 7762 with the flexibility to function as a standalone AP or as a managed device, using the same wireless controller as its indoor Smart Wi-Fi products. If no Ethernet cabling is available, the outdoor AP meshes seamlessly with the indoor ZoneFlex 7962. Unprecedented performance enables connections of 150Mbps or more between mesh nodes at distances of up to 300 meter or more. In addition, unlike any other outdoor Wi-Fi device today, the ZoneFlex 7762 provides advanced interference avoidance and rejection to ensure the highest resilience for both client and inter-node mesh connections. Now customers have a simple to use, indoor/outdoor, Smart Wi-Fi environment that provides extended range, simple deployment, reliable connectivity and consistent performance at range.
Ruckus 901-7762-WW01 Access Point Overview
World's First Concurrent 2.4/5GHz 802.11n Access Point with Adaptive Antenna Technology and Smart Wi-Fi Meshing
The ZoneFlex 7762 Series is the first dual-band 802.11n outdoor access point (AP) to integrate adaptive antenna technology to enable much longer range signals, better signal penetration inside buildings, and more resilient mesh connections that automatically adapt to interference and changing environmental conditions.

Supporting advanced Smart Mesh Networking, the Ruckus ZoneFlex 7762 Series is perfect for service providers looking to quickly and economically expand branded broadband services, offload data traffic from congested 3G networks, deploy multimedia hotspots or offer wireless broadband services where fixed line access is limited. Separate radios for access and backhaul traffic deliver high-throughput to clients throughout the mesh network.
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.88 GHz
Wireless Transmission Speed:
600 Mbit/s
Wireless Security:
  • WEP
  • WPA-PSK
  • WPA-TKIP
  • WPA2 AES
  • IEEE 802.11i
  • IEEE 802.1X
  • RADIUS
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:
  • TR-069
  • Web Based Management
  • CLI
  • Telnet
  • SSH
  • SNMP v1, 2, 3
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Pole-mountable
  • Wall Mountable
  • Ceiling Mountable
Height:
5.6"
Width:
7.7"
Depth:
9.4"
Weight (Approximate):
4.19 lb
Miscellaneous
Package Contents:
  • Dual-Band 802.11N Smart Wi-Fi Outdoor AP
  • Universal Pole/Wall/Ceiling Mounting Bracket
  • Power Injector
Certifications & Standards:
IEEE 802.11a/b/g/n
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Item Numbers
UNSPSC: 43222631
