Ruckus 901-7762-US53 Wireless Access Points

Part Number: 901-7762-US53
Model: ZoneFlex 7762
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.40 GHz

Product Description:

  Ruckus Wireless ZoneFlex 7762-S-AC IEEE 802.11n 600 Mbit/s Wireless Access Point - 984.3 ft Maximum Outdoor Range - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Pole-mountable, Wall Mountable, Ceiling Mountable
Explore all Ruckus ZoneFlex 7762 Wireless Access Points
Add to Quote
Ruckus 901-7762-US53 Wireless Access Points
Ruckus 901-7762-US53 Wireless Access Points
Ruckus 901-7762-US53 Wireless Access Points
Ruckus 901-7762-US53 Wireless Access Points
Ruckus 901-7762-US53 Wireless Access Points Ruckus 901-7762-US53 Wireless Access Points Ruckus 901-7762-US53 Wireless Access Points

Full specifications (PDF)

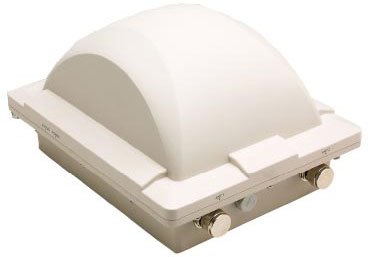

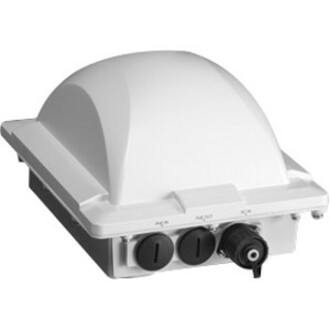

Ruckus ZoneFlex 7762 Wireless Access Points Model Overview

The ZoneFlex 7762 uniquely combines dynamic beamforming, adaptive meshing and the power of 802.11n to enable a new level of outdoor performance at the lowest cost. Built to withstand the harshest of outdoor conditions, Ruckus designed the ZoneFlex 7762 with the flexibility to function as a standalone AP or as a managed device, using the same wireless controller as its indoor Smart Wi-Fi products. If no Ethernet cabling is available, the outdoor AP meshes seamlessly with the indoor ZoneFlex 7962. Unprecedented performance enables connections of 150Mbps or more between mesh nodes at distances of up to 300 meter or more. In addition, unlike any other outdoor Wi-Fi device today, the ZoneFlex 7762 provides advanced interference avoidance and rejection to ensure the highest resilience for both client and inter-node mesh connections. Now customers have a simple to use, indoor/outdoor, Smart Wi-Fi environment that provides extended range, simple deployment, reliable connectivity and consistent performance at range.
Ruckus 901-7762-US53 Wireless Access Points Overview

World's First Concurrent 2.4/5GHz 802.11n Access Point with Adaptive Antenna Technology and Smart Wi-Fi Meshing

The Ruckus ZoneFlex 7762 Series represents a completely new class of outdoor Wi-Fi products that unleashes the promise of 802.11n - delivering unparalleled simplicity, throughput, range and reliability at a fraction of the cost of conventional alternatives.

The ZoneFlex 7762 Series is the first dual-band 802.11n outdoor access point (AP) to integrate adaptive antenna technology to enable much longer range signals, better signal penetration inside buildings, and more resilient mesh connections that automatically adapt to interference and changing environmental conditions.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.88 GHz
Antenna Type:
Directional Antenna
Outdoor Antenna Range:
984.3 ft
Wireless Transmission Speed:
600 Mbit/s
Wireless Security:
  • WEP
  • WPA-PSK
  • TKIP
  • WPA2
  • AES
  • IEEE 802.11i
  • IEEE 802.1x
  • RADIUS
  • L2TP
  • PPPoE
Features:
Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE (RJ-45) Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:
  • Web Based Management
  • Telnet
  • CLI
  • SNMP v1/2/3
  • TR-069 via FlexMaster
  • IEEE 802.1Q VLAN
  • Managed by ZoneDirector
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Pole-mountable
  • Wall Mountable
  • Ceiling Mountable
Height:
5.6"
Width:
7.7"
Depth:
9.4"
Weight (Approximate):
4.19 lb
Miscellaneous
Package Contents:
  • Dual-Band 802.11n Smart Wi-Fi Outdoor AP
  • Pole/Wall Mounting Bracket
Certifications & Standards:
  • IP-67
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.11i
  • IEEE 802.1x
  • IEEE 802.11e
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0700443580014
UPC: 700443580014
EAN: 0700443580014
UNSPSC: 43222631
