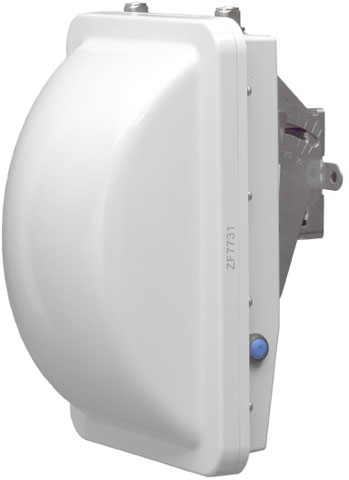

Ruckus 901-7731-UN01 Access Point

The Ruckus 901-7731-UN01 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Ruckus ZoneFlex 7731 - Ruckus Wireless ZoneFlex 7731 IEEE 802.11n 300 Mbit/s Wireless Bridge - 9.3 Mile Maximum Outdoor Range - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Pole-mountable

In situations where running a cable would be impractical or prohibited, use this wireless bridge to create point-to-point Wi-Fi connectivity between two wired networks
With IEEE 802.11n network technology and data transfer rate of up to 300 Mbit/s, enjoy superior HD media playback and lag-free gaming
Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
With PoE Port, transfer data and power from a single cable to places where a power outlet is not present

Need a different version? See all Ruckus ZoneFlex 7731 Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Ruckus ZoneFlex 7731 Access Point Model Overview

The Ruckus ZoneFlex 7731 is the first centrally-managed, outdoor point-to-point and point-to-multipoint bridge that unleashes the promise of 5GHz 802.11n, delivering unparalleled throughput. Backhaul throughput of over 100 Mbps opens opportunities to new business models, bridging remote locations and providing broadband services to locations not reachable before, in an affordable way. Designed for harsh outdoor conditions, the Ruckus ZoneFlex 7731 is perfect for service providers looking to easily extend branded broadband services, backhaul 3G networks, offload data traffic from 3G networks, deploy multimedia hotspots, or offer wireless broadband services where fixed line access is limited.

Ruckus 901-7731-UN01 Access Point Overview

The Ruckus Wireless ZoneFlex 7731 is the fi rst centrally- managed, outdoor point-to-point bridge that unleashes the promise of 5GHz 802.11n, delivering unparalleled throughput. Backhaul throughput of over 100 Mbps opens opportunities to new business models, bridging remote locations and providing broadband services to locations not reachable before, in an affordable way.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

UNII Band:

Yes

UNII Minimum Frequency:

5.15 GHz

UNII Maximum Frequency:

5.85 GHz

Total Number of Antennas:

Antenna Gain:

14 dBi

Antenna Type:

Directional Antenna

Antenna Connector:

N-Type

Outdoor Antenna Range:

9.3 Mile

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

WPA2
AES
IEEE 802.11i

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet
Gigabit Ethernet

Number of Network (RJ-45) Ports:

PoE (RJ-45) Port:

Yes

Management & Protocols

Management:

Web Based Management (HTTP/HTTPS)
SNMP
CLI
Telnet
FlexMaster
IEEE 802.1Q VLAN

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Form Factor:

Pole-mountable

Height:

5.2"

Width:

6.8"

Depth:

10.7"

Weight (Approximate):

1.93 lb

Miscellaneous

Certifications & Standards:

IEEE 802.11a
IEEE 802.11n
IEEE 802.11i
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.1p
IEEE 802.1Q

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Item Numbers

UNSPSC: 43222631

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Ruckus 901-7731-UN01 Access Point is also known as RUC-9017731UN01
