Ruckus 901-7025-WW02 Access Point

Ruckus 901-7055-WW01 Access Point A newer version of this item is available.
It is replaced by the Ruckus 901-7055-WW01 Access Point.
Ruckus ZoneFlex 7025 - Ruckus Wireless ZoneFlex 7025 IEEE 802.11n 150 Mbit/s Wireless Access Point - 4 x Network (RJ-45) - Ethernet, Fast Ethernet - PoE Ports - Wall Mountable
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • Ensure speedy data transfer of up to 150 Mbit/s with the IEEE 802.11n wireless technology
  • Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
  • Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
Read More

Need a different version? See all Ruckus ZoneFlex 7025 Access Points

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Ruckus 901-7025-WW02 Access Point
Ruckus 901-7025-WW02 Access Point Ruckus 901-7025-WW02 Access Point Ruckus 901-7025-WW02 Access Point Ruckus 901-7025-WW02 Access Point
Ruckus 901-7025-WW02 Access Point
Ruckus 901-7025-WW02 Access Point
Ruckus 901-7025-WW02 Access Point

Full specifications (PDF)
Ruckus ZoneFlex 7025 Access Point Model Overview

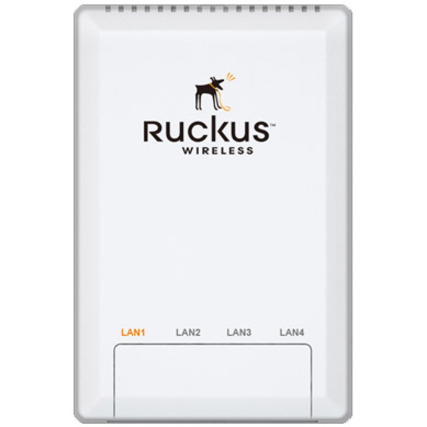

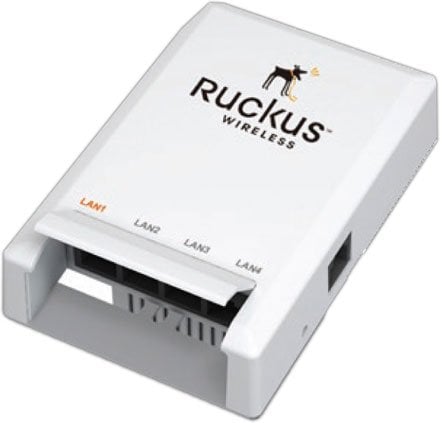

The Ruckus ZoneFlex 7025 is the industry's first wired and wireless wall switch that integrates high-speed 802.11n Wi-Fi into an ultra-sleek, low-profile design that can be quickly and discretely installed in a standard wall junction box. Ideal for offering converged services within hotel guest rooms and university dormitories, the ZoneFlex 7025 provides an easy way to offer multiple connections into a single room without multiple cables. The ZoneFlex 7025 delivers high performance 2.4GHz 802.11n wireless coverage and four wired Ethernet access connections that can be used to support a range of in-room IP device and user connectivity options. The ZoneFlex 7025 Wi-Fi wall switch is completely inconspicuous, minimizing the protrusion off the wall to make in-room cabling and furniture arrangement simple.
Ruckus 901-7025-WW02 Access Point Overview

The First High Performance 802.11n Integrated Wired/Wireless Wall Switch

The Ruckus ZoneFlex 7025 is the industry's first wired and wireless wall switch that integrates high-speed 802.11n Wi-Fi into an ultra-sleek, low-profile design that can be quickly and discretely installed in a standard wall junction box.

Ideal for offering converged services within hotel guest rooms and university dormitories, the ZoneFlex 7025 provides an easy way to offer multiple connections into a single room without multiple cables.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
Antenna Gain:
2 dBi
Wireless Transmission Speed:
150 Mbit/s
Wireless Security:
  • WEP
  • WPA-PSK
  • WPA-TKIP
  • WPA2 AES
  • IEEE 802.11i
Features:
Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
Number of Network (RJ-45) Ports:
4
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:
  • Web-based Management
  • Command Line Interface (CLI)
  • Telnet
  • SNMP v1/2/3
  • TR-069 vis FlexMaster
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Color:
Off White
Form Factor:
Wall Mountable
Height:
5"
Width:
3.3"
Depth:
1.2"
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Ruckus 901-7025-WW02 Access Point is also known as RUC-9017025WW02
