ID Tech SecureKey Keyboards

ID Tech SecureKey  -  The IDTech SecureKey is an encrypted key pad with a MagStripe reader that offers retailers a complete and reliable security solution. This intelligent reader delivers superior reading performance while encrypting sensitive MagStripe and keyed-in data that reduces the scope of PCI-DSS. The SecureKey ensures all data transactions are protected from end to end reducing fraud and data compromises. Data encryption prevents card holder information from being accessed when data is stored or in transit. It also allows customers the flexibility to choose a decryption party right for them. The SecureKey supports TDES and AES data encryption using DUKPT key management.Each SecureKey is assigned a unique serial number for tracking purposes. For increased data protection, SecureKey has several operational security levels allowing the user to select the security profile needed for the application. The SecureKey is available in both USB/Keyboard and USB/HID interfaces for flexible installation options.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$95.58
Item on backorder — chat for lead time
ID Tech SecureKey Keyboards
ID Tech SecureKey Keyboards
ID Tech SecureKey Keyboards


Category

ID Tech SecureKey Keyboards Options

Frequently Asked Questions

The ID Tech SecureKey supports both TDES and AES encryption algorithms with DUKPT key management for enhanced security. This dual-algorithm approach ensures your sensitive payment data is protected using industry-standard encryption methods that reduce PCI-DSS compliance scope.

Yes, the SecureKey M130 encrypts both magstripe card data and keyed-in numbers, providing comprehensive protection for all transaction types. This end-to-end encryption capability helps minimize fraud and data compromises across your entire payment processing workflow.

The SecureKey is USB powered and requires +5.0 VDC ±10% at 60 mA maximum, with no external power supply needed. It connects via USB 2.0 interface with a 6-foot cable, making it simple to integrate into existing retail point-of-sale systems.

The SecureKey M130 is built for durability with an operating life of 20,000,000 keystrokes and 1,000,000 card cycles, plus an MTBF exceeding 60,000 power-on hours. It also features a 24-inch drop test rating and ESD immunity of 4kV to 8kV minimum, ensuring reliable performance in demanding retail settings.

The main difference is size and profile. The M130 measures 6.30 x 3.74 x 1.43 inches with an integrated MagStripe reader, while the M100 is more compact at 5.55 x 3.74 x 0.98 inches. Both models offer the same encryption capabilities and security features; choose based on your space and operational requirements.

Yes, the SecureKey includes a certified key injection service available to ensure your encryption keys are securely initialized. This professional setup service helps guarantee that your device is properly configured for maximum security from the start.

Full specifications (PDF)

ID Tech SecureKey Keyboards Model Overview

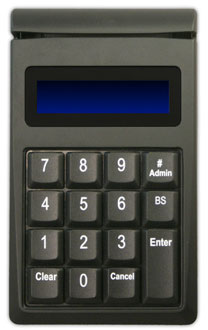

SecureKey™ M130 is a state-of-the-art encrypted keypad designed to enhance security in retail environments. With its integrated MagStripe card reader, this compact device ensures reliable data encryption for both card-based and manually entered transactions. By utilizing TDES and AES encryption algorithms, it provides a robust solution that not only protects sensitive customer information but also minimizes PCI-DSS compliance scope. The SecureKey™ M130 is an ideal choice for businesses looking to reduce fraud, as it allows for a flexible security management option tailored to specific operational needs.

Key Features:
  • Supports TDES and AES encryption algorithms
  • DUKPT key management for enhanced security
  • Encrypts magstripe card data and keyed-in numbers
  • Designed with comfortable keys and tactile feel
  • USB powered—no external power supply needed
  • Two-line, 20-character backlit LCD display
  • One million card operations life for durability
  • Certified key injection service available


Specifications:
  • Electrical:
    • Power Requirements: +5.0 VDC ±10%, 60 mA Max
    • Interface: USB 2.0
  • Environmental:
    • Operating Temperature: 0°C to 40°C (32°F to 131°F)
    • Storage Temperature: -20°C to 40°C (-4°F to 104°F)
    • Humidity: Maximum 90% non-condensing
    • Drop Test: 24 inches (610 mm)
  • Reliability:
    • Operating Life: 20,000,000 keystrokes and 1,000 card cycles
    • MTBF: More than 60,000 power on hours
    • ESD Immunity: 4kV to 8kV min, after reset
    • Approvals: FCC class B and CE, RoHS
  • Mechanical:
    • Dimensions M130: 6.30 inches (160 mm) x 3.74 inches (95 mm) x 1.43 inches (36.41 mm)
    • Dimensions M100: 5.55 inches (140.99 mm) x 3.74 inches (95 mm) x 0.98 inches (24.84 mm)
    • Cable Length: 6-foot (1.83m)
    • Color: Black
