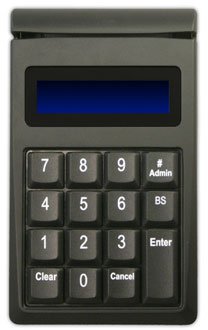

SecureKey™ M130 is a state-of-the-art encrypted keypad designed to enhance security in retail environments. With its integrated MagStripe card reader, this compact device ensures reliable data encryption for both card-based and manually entered transactions. By utilizing TDES and AES encryption algorithms, it provides a robust solution that not only protects sensitive customer information but also minimizes PCI-DSS compliance scope. The SecureKey™ M130 is an ideal choice for businesses looking to reduce fraud, as it allows for a flexible security management option tailored to specific operational needs.
Key Features:
Supports TDES and AES encryption algorithms
DUKPT key management for enhanced security
Encrypts magstripe card data and keyed-in numbers
Designed with comfortable keys and tactile feel
USB powered—no external power supply needed
Two-line, 20-character backlit LCD display
One million card operations life for durability
Certified key injection service available
Specifications:
Electrical:
Power Requirements: +5.0 VDC ±10%, 60 mA Max
Interface: USB 2.0
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 131°F)
Storage Temperature: -20°C to 40°C (-4°F to 104°F)
Humidity: Maximum 90% non-condensing
Drop Test: 24 inches (610 mm)
Reliability:
Operating Life: 20,000,000 keystrokes and 1,000 card cycles
MTBF: More than 60,000 power on hours
ESD Immunity: 4kV to 8kV min, after reset
Approvals: FCC class B and CE, RoHS
Mechanical:
Dimensions M130: 6.30 inches (160 mm) x 3.74 inches (95 mm) x 1.43 inches (36.41 mm)
Dimensions M100: 5.55 inches (140.99 mm) x 3.74 inches (95 mm) x 0.98 inches (24.84 mm)
Cable Length: 6-foot (1.83m)
Color: Black
ID Tech IDKE-534833ABE-S1 Keyboards Overview
The SecureKey™ M130 is an encrypted key pad with a MagStripe reader that offers retailers a complete and reliable security solution. This intelligent reader delivers superior reading performance while encrypting sensitive MagStripe and keyed-in data that reduces the scope of PCI-DSS. The SecureKey M130 ensures all data transactions are protected from end to end reducing fraud and data compromises. Data encryption prevents card holder information from being accessed when data is stored or in transit. It also allows customers the flexibility to choose a decryption party right for them. The SecureKey M130 supports TDES and AES data encryption using DUKPT key management.
Each SecureKey M130 is assigned a unique serial number for tracking purposes. Encrypted data output with confirmation data in clear text form is programmable up to the first six digits and the last four digits of the account number. For increased data protection, SecureKey M130 has several operational security levels allowing the user to select the security profile needed for the application.

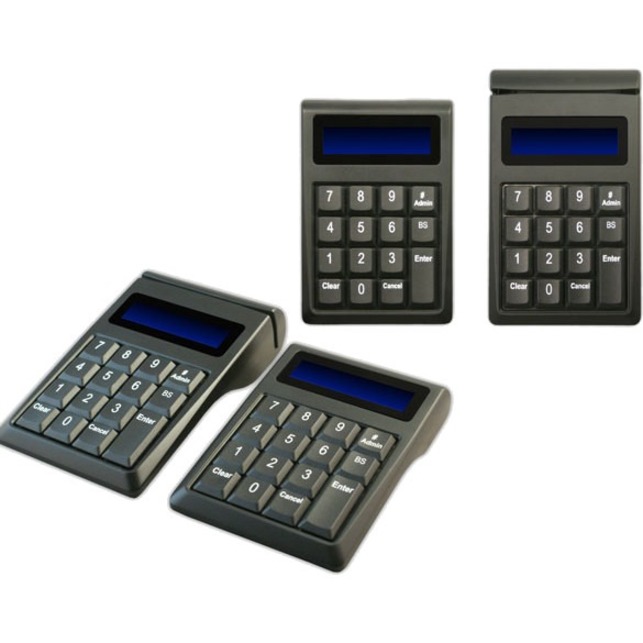

The SecureKey M130 is available in both USB-Keyboard and USB-HID interfaces for flexible installation options. The SecureKey M100 is also available, with all the same features as the SecureKey M130 but without the MagStripe reader.
The ID Tech IDKE-534833ABE-S1 Keyboards is also known as
IDT-IDKE534833ABES1
or IDKE534833ABES1.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
