Full specifications (PDF)
Keyboard/Keypad Connectivity Technology:
Cable
ID Tech IDKE-234133B Keyboards
Part Number:
IDKE-234133B
Model:
SecureKey
ID Tech SecureKey Keyboards Model Overview

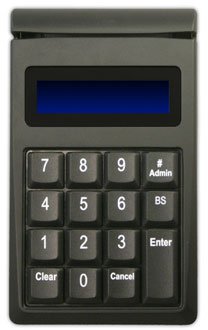

SecureKey™ M130 is a state-of-the-art encrypted keypad designed to enhance security in retail environments. With its integrated MagStripe card reader, this compact device ensures reliable data encryption for both card-based and manually entered transactions. By utilizing TDES and AES encryption algorithms, it provides a robust solution that not only protects sensitive customer information but also minimizes PCI-DSS compliance scope. The SecureKey™ M130 is an ideal choice for businesses looking to reduce fraud, as it allows for a flexible security management option tailored to specific operational needs.
Key Features:
Specifications:
Key Features:
- Supports TDES and AES encryption algorithms
- DUKPT key management for enhanced security
- Encrypts magstripe card data and keyed-in numbers
- Designed with comfortable keys and tactile feel
- USB powered—no external power supply needed
- Two-line, 20-character backlit LCD display
- One million card operations life for durability
- Certified key injection service available
Specifications:
- Electrical:
- Power Requirements: +5.0 VDC ±10%, 60 mA Max
- Interface: USB 2.0
- Environmental:
- Operating Temperature: 0°C to 40°C (32°F to 131°F)
- Storage Temperature: -20°C to 40°C (-4°F to 104°F)
- Humidity: Maximum 90% non-condensing
- Drop Test: 24 inches (610 mm)
- Reliability:
- Operating Life: 20,000,000 keystrokes and 1,000 card cycles
- MTBF: More than 60,000 power on hours
- ESD Immunity: 4kV to 8kV min, after reset
- Approvals: FCC class B and CE, RoHS
- Mechanical:
- Dimensions M130: 6.30 inches (160 mm) x 3.74 inches (95 mm) x 1.43 inches (36.41 mm)
- Dimensions M100: 5.55 inches (140.99 mm) x 3.74 inches (95 mm) x 0.98 inches (24.84 mm)
- Cable Length: 6-foot (1.83m)
- Color: Black
ID Tech IDKE-234133B Keyboards Overview
The SecureKey™ M130 is an encrypted key pad with a Magstripe reader that offers retailers a complete and reliable security solution. This intelligent reader delivers superior reading performance while encrypting sensitive Magstripe and keyed-in data that reduces the scope of PCI-DSS. Each SecureKey M130 is assigned a unique serial number for tracking purposes. Encrypted data output with confirmation data in clear text form is programmable up to the first six digits and the last four digits of the account number.
Keyboard/Keypad
Interfaces/Ports
Keyboard/Keypad Host Interface:
USB
Physical Characteristics
Product Color:
Black
Keyboard/Keypad Height:
1.43"
Keyboard/Keypad Width:
3.74"
Keyboard/Keypad Depth:
6.30"
Weight (Approximate):
9.60 oz
Miscellaneous
Device Supported:
POS Terminal
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0088698595640
UPC:
088698595640
EAN:
0088698595640
UNSPSC:
43211706
Get help from a Barcoding Expert!
The ID Tech IDKE-234133B Keyboards is also known as
IDT-IDKE234133B
or IDKE234133B.
