Full specifications (PDF)
Keyboard/Keypad Cable Length:
6 ft
ID Tech IDKE-504800BM Keyboards
Part Number:
IDKE-504800BM
Model:
SecureKey
ID Tech SecureKey Keyboards Model Overview

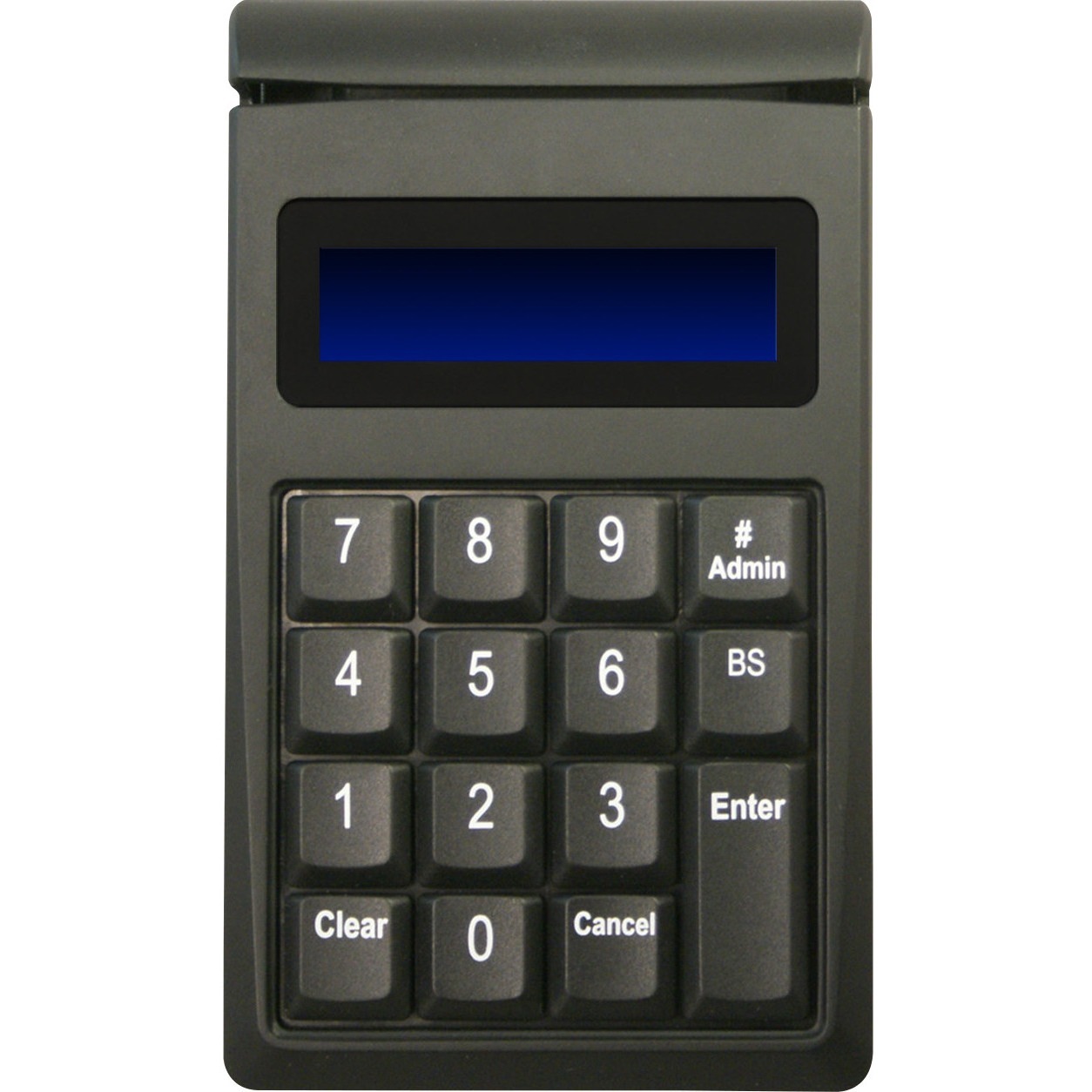

SecureKey™ M130 is a state-of-the-art encrypted keypad designed to enhance security in retail environments. With its integrated MagStripe card reader, this compact device ensures reliable data encryption for both card-based and manually entered transactions. By utilizing TDES and AES encryption algorithms, it provides a robust solution that not only protects sensitive customer information but also minimizes PCI-DSS compliance scope. The SecureKey™ M130 is an ideal choice for businesses looking to reduce fraud, as it allows for a flexible security management option tailored to specific operational needs.
Key Features:
Specifications:
Key Features:
- Supports TDES and AES encryption algorithms
- DUKPT key management for enhanced security
- Encrypts magstripe card data and keyed-in numbers
- Designed with comfortable keys and tactile feel
- USB powered—no external power supply needed
- Two-line, 20-character backlit LCD display
- One million card operations life for durability
- Certified key injection service available
Specifications:
- Electrical:
- Power Requirements: +5.0 VDC ±10%, 60 mA Max
- Interface: USB 2.0
- Environmental:
- Operating Temperature: 0°C to 40°C (32°F to 131°F)
- Storage Temperature: -20°C to 40°C (-4°F to 104°F)
- Humidity: Maximum 90% non-condensing
- Drop Test: 24 inches (610 mm)
- Reliability:
- Operating Life: 20,000,000 keystrokes and 1,000 card cycles
- MTBF: More than 60,000 power on hours
- ESD Immunity: 4kV to 8kV min, after reset
- Approvals: FCC class B and CE, RoHS
- Mechanical:
- Dimensions M130: 6.30 inches (160 mm) x 3.74 inches (95 mm) x 1.43 inches (36.41 mm)
- Dimensions M100: 5.55 inches (140.99 mm) x 3.74 inches (95 mm) x 0.98 inches (24.84 mm)
- Cable Length: 6-foot (1.83m)
- Color: Black
ID Tech IDKE-504800BM Keyboards Overview
Full Functionality & Compact Size
SecureKey™ M130 is an encrypted key pad with a MagStripe reader that offers retailers a complete and reliable security solution. This intelligent reader delivers superior reading performance while encrypting sensitive MagStripe and keyed-in data that reduces the scope of PCI-DSS. The SecureKey™ M130 ensures all data transactions are protected from end to end reducing fraud and data compromises. Data encryption prevents card holder information from being accessed when data is stored or in transit. It also allows customers the flexibility to choose a decryption party right for them. The SecureKey™ M130 supports TDES and AES data encryption using DUKPT key management.
Security Management
Each SecureKey™ M130 is assigned a unique serial number for tracking purposes. Encrypted data output with confirmation data in clear text form is programmable up to the first six digits and the last four digits of the account number. For increased data protection, SecureKey™ M130 has several operational security levels allowing the user to select the security profile needed for the application.
Simple Installation
The SecureKey™ M130 is available in both USB/Keyboard and USB/HID interfaces for flexible installation options. The SecureKey™ M100 is also available, with all of the same features as the SecureKey™ M130 but without the MagStripe reader.
Features and Benefits:
SecureKey™ M130 is an encrypted key pad with a MagStripe reader that offers retailers a complete and reliable security solution. This intelligent reader delivers superior reading performance while encrypting sensitive MagStripe and keyed-in data that reduces the scope of PCI-DSS. The SecureKey™ M130 ensures all data transactions are protected from end to end reducing fraud and data compromises. Data encryption prevents card holder information from being accessed when data is stored or in transit. It also allows customers the flexibility to choose a decryption party right for them. The SecureKey™ M130 supports TDES and AES data encryption using DUKPT key management.
Security Management
Each SecureKey™ M130 is assigned a unique serial number for tracking purposes. Encrypted data output with confirmation data in clear text form is programmable up to the first six digits and the last four digits of the account number. For increased data protection, SecureKey™ M130 has several operational security levels allowing the user to select the security profile needed for the application.
Simple Installation
The SecureKey™ M130 is available in both USB/Keyboard and USB/HID interfaces for flexible installation options. The SecureKey™ M100 is also available, with all of the same features as the SecureKey™ M130 but without the MagStripe reader.
Features and Benefits:
- Supports TDES and AES encryption algorithms
- DUKPT key management
- Supports encryption of magstripe card data and manually keyed-in card numbers
- Keys are a comfortable size with good tactile feel
- Powered through USB port, no external power supply required
- Provides two lines by 20-character LCD backlit display
- Card readers have a one million card operations life
- Certified key injection service available
Keyboard/Keypad
Interfaces/Ports
Keyboard/Keypad Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
Black
Product Material:
ABS
Height:
1.4"
Width:
3.7"
Length:
6.3"
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211706
Get help from a Barcoding Expert!
The ID Tech IDKE-504800BM Keyboards is also known as
IDT-IDKE504800BM
or IDKE504800BM.
