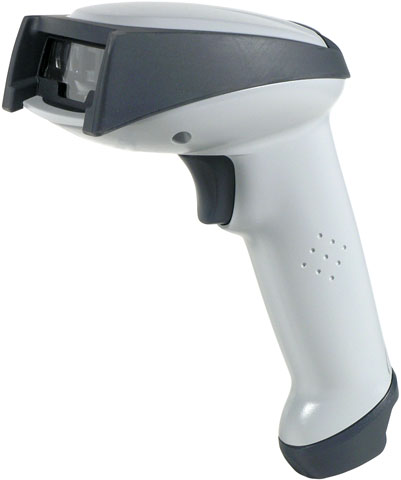

Honeywell 3820 Barcode Scanner
|
A newer version of this item is available.
It is replaced by the Honeywell Granit 1911i. |
Features Bluetooth wireless communications for freedom of movement in retail, warehouse and distribution
3820 linear image scanner from Honeywell offers an ideal solution for light industrial mobile barcode reading applications. It features Bluetooth v1.2 radio wireless communications for freedom of movement in retail, warehouse and distribution. This enables movement up to 33 feet (10m) from the base. Adaptive Frequency Hopping (AFH) eliminates interference with other wireless systems. The field-replaceable lithium-ion battery enables up to 57,000 reads per full charge. The 3820's small footprint enables hands-free presentation scanning when docked in the base. The host-powered interface and RF link extends the mobile capabilities of the 3820 by drawing power from a portable device for radio and host communications.
3820 Options
|
Honeywell 3820 (3820SR0C0B-0IA0E)
PS/2 Kit, 1D Imager. Includes PS/2 cable, charing/communications cradle, and power supply. Color: White
|
DiscontinuedSee Replacement
x
Did you know?The average internal IT
|
|
Honeywell 3820 (3820SR0C0BE)
SCANNER ONLY, 1D Imager, USB/RS-232/PS/2/IBM interfaces. Cradle, cables, and accessories are not included and must be purchased separately. Color: White
|
DiscontinuedSee Replacement
x
Did you know?The average internal IT
|
|
|
Honeywell 3820 (3820SR0C0B-0GA0E)
Cradle Kit. 1D Imager. Includes charging/communications cradle and power supply. Cradle interface cable not included, must also purchase straight USB cable (Part# 42206161-01E) or coiled USB cable (Part# 42206202-02E). Color: White
|
DiscontinuedSee Replacement
x
Did you know?The average internal IT
|
|
|
Honeywell 3820 (3820SR0C0B-0FA0E)
USB Kit. 1D Imager. Includes 3.2' straight USB cable, charging/communication cradle, and power supply. Color: White
|
DiscontinuedSee Replacement
x
Did you know?The average internal IT
|
|
|
Honeywell 3820 (3820SR0C0B-0IB0E)
EU PS/2 Kit. 1D Linear Imager. Includes PS/2 cable, charging/communications cradle, and EU power supply. Color: White.
|
DiscontinuedNeed Assistance?
x
Did you know?The average internal IT
|
|
|
Honeywell 3820 (3820SR0C0B-0IA0E-6)
PS/2 Kit, 1D Imager. Includes PS/2 cable, charing/communications cradle, and power supply. Color: White
|
DiscontinuedNeed Assistance?
x
Did you know?The average internal IT
|
|
|
Honeywell 3820 (3820SR0C0B-0GA0E-6)
Cradle Kit. 1D Imager. Includes charging/communications cradle and power supply. Cradle interface cable not included, must also purchase straight USB cable (Part# 42206161-01E) or coiled USB cable (Part# 42206202-02E). Color: White
|
DiscontinuedNeed Assistance?
x
Did you know?The average internal IT
|
|
|
Honeywell 3820 (3820SR0C0B-0FA0E-6)
USB Kit. 1D Imager. Includes 3.2' straight USB cable, charging/communication cradle, and power supply. Color: White
|
DiscontinuedNeed Assistance?
x
Did you know?The average internal IT
|
Recommended Accessories for Model: Honeywell 3820 Barcode Scanner
Category
- Docks & Cradles (5)
- Power Systems & Supplies (1)
- Cables, Connectors, and Adapters (11)
- Batteries (4)
- Carrying and Protective Accessories (1)
- Accessories (17)
Recommended Accessories for Model: Honeywell 3820 Barcode Scanner
Docks & Cradles
Honeywell Accessories (MB4-BAT-SCN01NAW06)
4-Bay Battery Charger for use with Granit 1911i, Voyager 12xxg, Xenon 1902, 1952, Granit 1981i, Voyager 1452g, 1472g, 3820, 3820I, 4820, 4820I, and 6320DPM scanners. Charges the Lithium-ion Batteries outside of the scanner. Includes North America Wallmount Power supply, Two Mounting Screws, and Instructions.
Why don't we show the price?
Honeywell (MB4-BAT-SCN01NAD06)
4-Bay Battery Charger. Includes North American desktop power supply, two mounting screws and instructions. Compatible with Honeywell 1202g, 3820, 3820I, 4820, 4820i, 1902, and 19011i Lithium Batteries. US Plug (Part# 50122315-001) sold separately.
Why don't we show the price?
Honeywell (200001576E)
Battery Charge Sleeve For Cordless Imagers, For Use Lithium Ion Battery. Non-Cancelable/Non-Returnable.
Honeywell (300000651E)
Cordless battery charge kit (includes lithium ion battery, battery charge sleeve, retention mechanism, and instructions). Non-Cancelable/Non-Returnable.
Why don't we show the price?
Honeywell (2020-5BE)
Compact cordless charging base for 3820, 4620, 4820 and 4820I lithium batteries. Provides host interface and RF link between imager and host. Requires power supply (part #PS-090-2000D-NA).
Why don't we show the price?
Power Systems & Supplies
Honeywell Power cord (77900506E)
Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0 ft.) - US. Non-Cancelable/Non-Returnable.
Cables, Connectors, and Adapters
Honeywell Cable (42203758-04E)
RS-232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7 ft. (2.3m)
Honeywell Cable (42206422-01E)
RS-232 TTL, black, DB-9, 2.3m (7.7'), straight, 5v external power. Non-Cancelable/Non-Returnable.
Honeywell Cable (42203758-03E)
RS-232 TTL, Connector: D 9 Pin F, power on pin 9, TX data on pin 2, coiled Length: 7.7 ft. (2.3m)
Why don't we show the price?
Honeywell Cable (42205155-05E)
IBM 46xx, black, RS-485 Port 9A/B, 3.1m (10.2'), coiled. Non-Cancelable/Non-Returnable.
Why don't we show the price?
Honeywell Cable (42206132-02SE)
AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), straight. Non-Cancelable/Non-Returnable.
Why don't we show the price?
Honeywell Cable (42203758-03SE)
RS-232 TTL, Connector: D 9 Pin F, power on pin 9, TX data on pin 2, straight Length: 7.7 ft. (2.3m)
Why don't we show the price?
Honeywell Cable (42206132-02E)
AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), coiled
Hand Held Cable (42206212-02E)
Combo kit with resistor Connector: Mini Din or Din PCs and PS/2 Length: 9.2 ft. (2.8m)
Honeywell Cable (42205895-01E)
RS-232 TTL, black, coiled, 2.3m (7.7'), power from PS/2 keyboard/mouse port. Non-Cancelable/Non-Returnable.
Why don't we show the price?
Batteries
AirTrack (100000495-COMPATIBLE)
Spare Battery, AirTrack, Lithium Ion, 2600 mAh with 30% LONGER Life. Compatible with Voyager 1202g, Voyager 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 3820 and 3820i. Comparable to part# 100000495.
AirTrack (100006732-COMPATIBLE)
Spare Battery, AirTrack, Lithium Ion, 2600 mAh with 30% LONGER Life. Compatible with Voyager 1202g, Voyager 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 3820 and 3820i. Comparable to part# 100006732.
AirTrack (BAT-SCN01-COMPATIBLE)
Spare Battery, AirTrack, Lithium Ion, 2600 mAh with 30% LONGER Life. Compatible with Voyager 1202g, Voyager 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 3820 and 3820i. Comparable to part# BAT-SCN01.
AirTrack (BAT-SCN01A-COMPATIBLE)
Spare Battery, AirTrack, Lithium Ion, 2600 mAh with 30% LONGER Life. Compatible with Voyager 1202g, Voyager 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 3820 and 3820i. Comparable to part# BAT-SCN01A.
Carrying and Protective Accessories
Honeywell (HOLSTERE)
Storage (for 3820, 4820 and 4820I Cordless Imagers and Battery Storage). Non-Cancelable/Non-Returnable.
Accessories
Honeywell Accessories (MB4-BAT-SCN01NAW0)
4 Bay Battery Charger for use with 3820, 3820I, 4820, 4820I, 6320DPM Lithium-ion Batteries NA Wallmount Power supply, Two Mounting Screws, and Instructions. Non-Cancelable/Non-Returnable.
Please Call for Pricing
or to Purchase
or to Purchase
Honeywell (MB4-BAT-SCN01AWO)
Battery Charger (4-Bay, with Wall Mount and Power supply) for the 3820, 3820I, 4820, 4820I and 6320
Honeywell (2020-CB-AE)
Base, With charging function only, No host interface or RF interface, For North America
Honeywell (42206203-02E)
Cable (3800__-15 USB Cable to IBM 9.2 feet USB Power 12V). Non-Cancelable/Non-Returnable.
Honeywell (PS-090-2000D-NA)
Power supply, 9V D/C, 100-240V AC, Includes Power cord (Part# 77900506E), Replaces Part# PS9U-21E.
Honeywell (PS-090-2000D-EU)
Power supply, 9 volt, 2.4 amp 4 pin barrel connector, power cord 77900508E, Input voltage with Euro AC connection. Replaces (Part# PS9U-22E).
