Honeywell 3820SR0C0B-0GA0E Barcode Scanners

0.0

(No reviews)

Be the first to

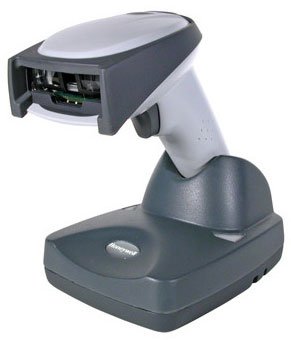

Honeywell 3820 - Cradle Kit. 1D Imager. Includes charging/communications cradle and power supply. Cradle interface cable not included, must also purchase straight USB cable (Part# 42206161-01E) or coiled USB cable (Part# 42206202-02E). Color: White

See Replacement ›

Features Bluetooth wireless communications for freedom of movement in retail, warehouse and distribution

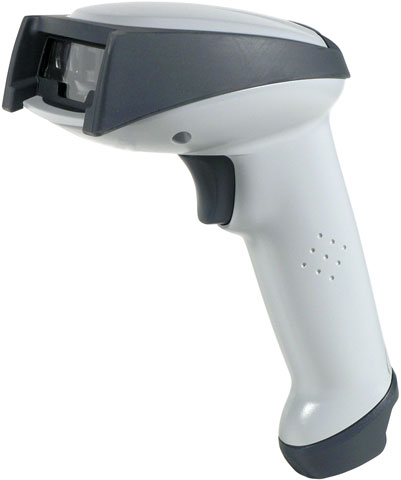

3820 linear image scanner from Honeywell offers an ideal solution for light industrial mobile barcode reading applications. It features Bluetooth v1.2 radio wireless communications for freedom of movement in retail, warehouse and distribution. This enables movement up to 33 feet (10m) from the base. Adaptive Frequency Hopping (AFH) eliminates interference with other wireless systems. The field-replaceable lithium-ion battery enables up to 57,000 reads per full charge. The 3820's small footprint enables hands-free presentation scanning when docked in the base. The host-powered interface and RF link extends the mobile capabilities of the 3820 by drawing power from a portable device for radio and host communications.

Technical Information

Barcode Dimension: 1D
Scan Rate: 270 scan/s
Connectivity Technology: Wireless
Scanning Distance: 32.81 ft
Light Source: LED
Image Sensor: Linear
Barcode Symbology Supported:
- China Post
- Codabar
- Codablock F
- Code 2 of 5
- Code 11
- Code 16K
- Code 39
- Code 32 Pharmaceutical (PARAF)
- Code 49
- Code 128
- EAN/JAN
- IATA 2 of 5
- Interleaved 2 of 5
- Korea Post
- Matrix 2 of 5
- Coupon Code
- MSI
- Plessey Code
- PosiCode
- RSS-14
- Telepen
- Trioptic
- UPC-A
- UPC-E
- China Post
- Codabar
- Codablock F
- Code 2 of 5
- Code 11
- Code 16K
- Code 39
- Code 32 Pharmaceutical (PARAF)
- Code 49
- Code 128
- EAN/JAN
- IATA 2 of 5
- Interleaved 2 of 5
- Korea Post
- Matrix 2 of 5
- Coupon Code
- MSI
- Plessey Code
- PosiCode
- RSS-14
- Telepen
- Trioptic
- UPC-A
- UPC-E
Maximum Scan Resolution: 5 mil
Depth of Field:
- 7" - 6.60"@7.50 mil
- 16.50" - 10"@13 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 3800
Product Name: 3820 Barcode Reader

Physical Characteristics

Height: 6.2"
Width: 3.2"
Depth: 5.3"
Weight (Approximate): 9.20 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Package Contents:
- 3820 Barcode Reader
- Cordless Base
- User Documentation
- 3820 Barcode Reader
- Cordless Base
- User Documentation
Additional Information:
- Supported Interfaces:
- USB
- TTL level RS-232
- Wand Emulation
- TTL level Serial Wedge
- IBM 46XX

Network & Communication

Bluetooth: Yes

Power Description

Input Voltage: 12 V DC

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)

See all Honeywell 3820 options »

Brand	Honeywell
Model	3820
Connection	Bluetooth, USB
Communication Type	Bluetooth
Scanner Capability	1D
Scanner Type	Imager
Color	White
Form Factor	Handheld
Connectivity	Cordless
Scan Pattern	LED Beam
Communication Range	less than 33 ft
Included Cables	Scanner Only - No Cable
Ruggedness	General Purpose
