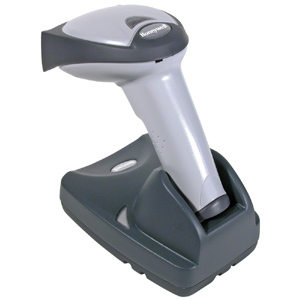

Honeywell 3820SR0C0B-0IA0E Barcode Scanner

Honeywell 3820 Barcode Scanner Model Overview

3820 linear image scanner from Honeywell offers an ideal solution for light industrial mobile barcode reading applications. It features Bluetooth v1.2 radio wireless communications for freedom of movement in retail, warehouse and distribution. This enables movement up to 33 feet (10m) from the base. Adaptive Frequency Hopping (AFH) eliminates interference with other wireless systems. The field-replaceable lithium-ion battery enables up to 57,000 reads per full charge. The 3820's small footprint enables hands-free presentation scanning when docked in the base. The host-powered interface and RF link extends the mobile capabilities of the 3820 by drawing power from a portable device for radio and host communications.

Honeywell 3820SR0C0B-0IA0E Barcode Scanner Overview

Ideal for light industrial mobile applications, the 3820 (formerly the 5620) features Bluetooth wireless communications for freedom of movement in retail, warehouse and distribution.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

1D

Barcode Symbology Supported:

China Post
Codabar
Codablock F
Code 2 of 5
Code 11
Code 16K
Code 39
Code 49
Code 128
EAN/JAN
IATA 2 of 5
Interleaved 2 of 5
Korea Post
Matrix 2 of 5
Coupon Code
MSI
Plessey Code
PosiCode
RSS-14
Telepen
Trioptic
UPC-A
UPC-E

Light Source:

LED

Image Sensor Type:

Linear

Scan Rate:

270 scan/s

Maximum Scan Resolution:

5 mil

Depth of Field:

7" - 6.6"@7.5mil
16.5" - 10"@13mil

Scanning Distance:

32.81 ft

Network & Communication

Bluetooth:

Yes

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

12 V DC

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Physical Characteristics

Form Factor:

Handheld

Height:

6.2"

Width:

3.2"

Depth:

5.3"

Weight (Approximate):

9.20 oz

Miscellaneous

Package Contents:

3820 Bar Code Reader
Cordless Base
Straight KBW Cable
User Documentation

Additional Information:

Supported Interfaces:

USB
TTL level RS-232
Wand Emulation
TTL level Serial Wedge
IBM 46XX

USB Cable separate

Item Numbers

GTIN: 0853585476438

UPC: 853585476438

EAN: 0853585476438

UNSPSC: 43211701
