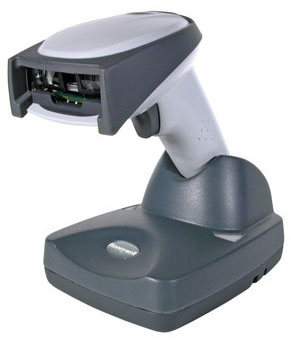

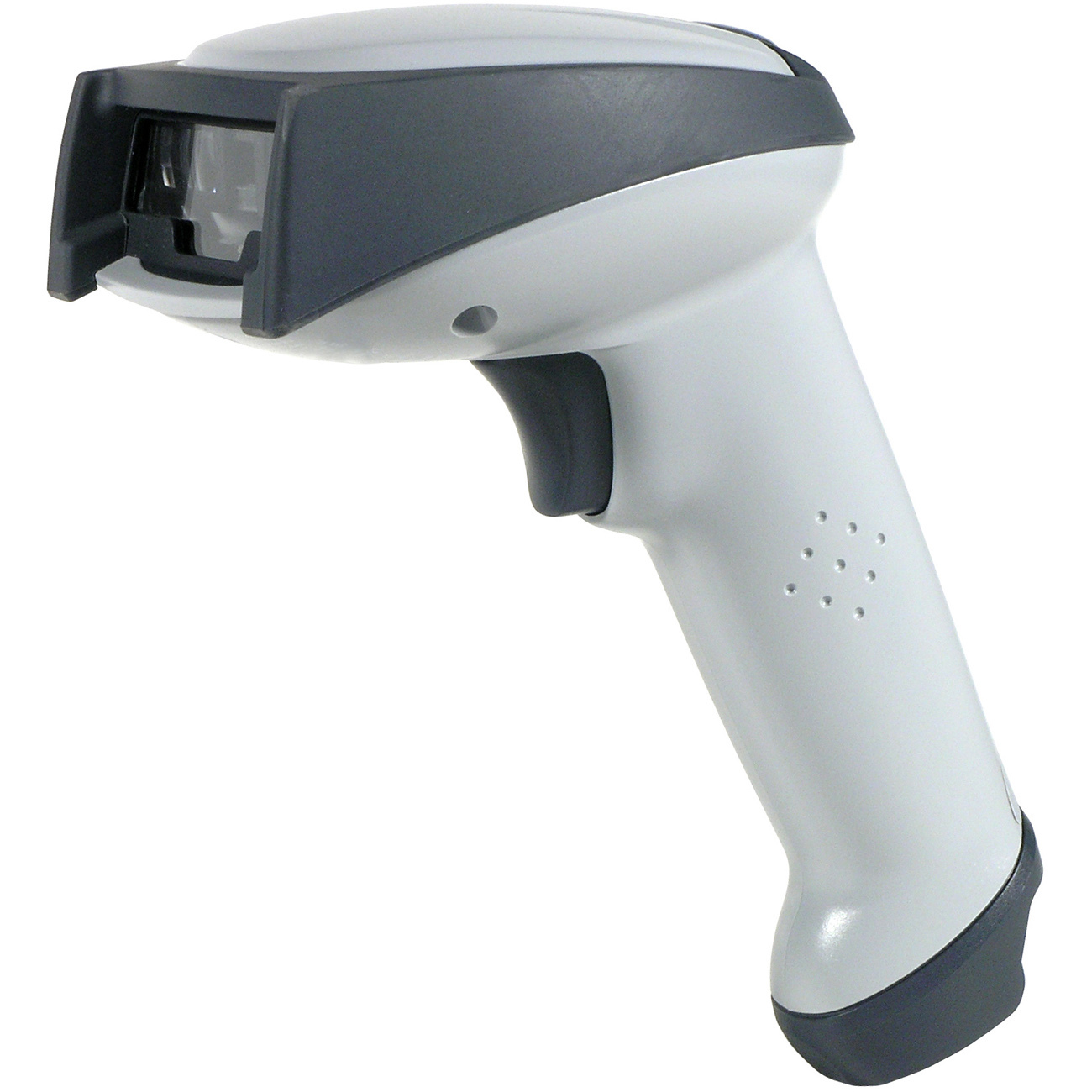

Honeywell 3820SR0C0B-0FA0E Barcode Scanner
Honeywell 3820SR0C0B-0FA0E Barcode Scanner
Honeywell 3820 -
USB Kit. 1D Imager. Includes 3.2' straight USB cable, charging/communication cradle, and power supply. Color: White
- Increase productivity and performance by excluding the cable
- Laser-free design provides high-performance scanning without the risk of eye injury
- Scan barcodes with a staggering speed of 270 scan/s
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
Need a different version? See all Honeywell 3820 Barcode Scanners
Full specifications (PDF)Features Bluetooth wireless communications for freedom of movement in retail, warehouse and distribution
3820 linear image scanner from Honeywell offers an ideal solution for light industrial mobile barcode reading applications. It features Bluetooth v1.2 radio wireless communications for freedom of movement in retail, warehouse and distribution. This enables movement up to 33 feet (10m) from the base. Adaptive Frequency Hopping (AFH) eliminates interference with other wireless systems. The field-replaceable lithium-ion battery enables up to 57,000 reads per full charge. The 3820's small footprint enables hands-free presentation scanning when docked in the base. The host-powered interface and RF link extends the mobile capabilities of the 3820 by drawing power from a portable device for radio and host communications.
Honeywell 3820SR0C0B-0FA0E Overview
Ideal for light industrial mobile applications, the 3820 (formerly the 5620) features Bluetooth wireless communications for freedom of movement in retail, warehouse and distribution.
Protect Your Product
|
Honeywell Service Contracts (SVC3820-SG5N)
3820, Edge Service, Gold, 1 Day, 5 Year, New Contract
|
$119.11 + Add to Quote |
|
|
Honeywell Service Contracts (SVC3820-SG3N)
3820, Edge Service, Gold, 1 Day, 3 Year, New Contract
|
$67.33 + Add to Quote |
|
|
Honeywell Service Contracts (SVC3820-SG1R)
3820, Edge Service, Gold, 1 Day, 1 Year, Renewal
|
$28.13 + Add to Quote |
|
|
Honeywell Service Contracts (SVC3820-EXW5)
SERVICE CONTRACT, 3820 & BASE, BASIC, 10-15 DAY TURN, 5 YEARS (3 YR FACTORY WARRANTY + 2 YR EXTENDED)
|
$37.20 + Add to Quote |
|
|
Honeywell Service Contracts (SVC3820-EXW4)
SERVICE CONTRACT, 3820 & BASE, BASIC, 10-15 DAY TURN, 4 YEARS (3 YR FACTORY WARRANTY + 1 YR EXTENDED)
|
$23.02 + Add to Quote |
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:
- China Post
- Codabar
- Codablock F
- Code 2 of 5
- Code 11
- Code 16K
- Code 39
- Code 32 Pharmaceutical (PARAF)
- Code 49
- Code 128
- EAN/JAN
- IATA 2 of 5
- Interleaved 2 of 5
- Korea Post
- Matrix 2 of 5
- Coupon Code
- MSI
- Plessey Code
- PosiCode
- RSS-14
- Telepen
- Trioptic
- UPC-A
- UPC-E
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
- 7" - 6.6"@7.5mil
- 16.5" - 10"@13mil
Scanning Distance:
32.81 ft
Cable Type Included:
USB
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Weight (Approximate):
9.20 oz
Miscellaneous
Package Contents:
- 3820 Bar Code Reader
- Cordless Base
- Straight USB Cable
- User Documentation
Additional Information:
USB TTL level RS-232 Wand Emulation TTL level Serial Wedge IBM 46XX
Supported Interfaces:
Item Numbers
GTIN:
0033587455239, 0650361190546, 0778889971772, 0780742487054
UPC:
033587455239, 650361190546, 778889971772, 780742487054
EAN:
0033587455239, 0650361190546, 0778889971772, 0780742487054
UNSPSC:
43211701
Recommended Accessories for Model: Honeywell 3820 Barcode Scanner
Category
- Docks & Cradles (5)
- Cables, Connectors, and Adapters (11)
- Power Systems & Supplies (1)
- Carrying and Protective Accessories (1)
- Accessories (21)
Recommended Accessories for Model: Honeywell 3820 Barcode Scanner
Docks & Cradles
Honeywell (MB4-BAT-SCN01NAD06)
4-Bay Battery Charger. Includes North American desktop power supply, two mounting screws and instructions. Compatible with Honeywell 1202g, 3820, 3820I, 4820, 4820i, 1902, and 19011i Lithium Batteries. US Plug (Part# 50122315-001) sold separately.
:
Honeywell Accessories (MB4-BAT-SCN01NAW06)
4-Bay Battery Charger for use with Granit 1911i, Voyager 12xxg, Xenon 1902, 1952, Granit 1981i, Voyager 1452g, 1472g, 3820, 3820I, 4820, 4820I, and 6320DPM scanners. Charges the Lithium-ion Batteries outside of the scanner. Includes North America Wallmount Power supply, Two Mounting Screws, and Instructions.
:
Honeywell (200001576E)
Battery Charge Sleeve For Cordless Imagers, For Use Lithium Ion Battery. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
Honeywell (300000651E)
Cordless battery charge kit (includes lithium ion battery, battery charge sleeve, retention mechanism, and instructions). Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
Honeywell (2020-5BE)
Compact cordless charging base for 3820, 4620, 4820 and 4820I lithium batteries. Provides host interface and RF link between imager and host. Requires power supply (part #PS-090-2000D-NA).
Ships in 3-5 Days
Cables, Connectors, and Adapters
Honeywell Cable (42203758-03SE)
RS-232 TTL, Connector: D 9 Pin F, power on pin 9, TX data on pin 2, straight Length: 7.7 ft. (2.3m)
:
Honeywell Cable (42203758-04E)
RS-232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7ft. (2.3m)
:
Honeywell Cable (42203758-03E)
RS-232 TTL, Connector: D 9 Pin F, power on pin 9, TX data on pin 2, coiled Length: 7.7 ft. (2.3m)
:
Honeywell Cable (42206132-02SE)
AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), straight. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
Honeywell Cable (42205155-05E)
IBM 46xx, black, RS-485 Port 9A/B, 3.1m (10.2'), coiled. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
Honeywell Cable (42206132-02E)
AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), coiled
Ships in 3-5 Days
Hand Held Cable (42206212-02E)
Combo kit with resistor Connector: Mini Din or Din PCs and PS/2 Length: 9.2 ft. (2.8m)
Ships in 3-5 Days
Honeywell Cable (42206422-01E)
RS-232 TTL, black, DB-9, 2.3m (7.7'), straight, 5v external power. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
Honeywell Cable (42205895-01E)
RS-232 TTL, black, coiled, 2.3m (7.7'), power from PS/2 keyboard/mouse port. Non-Cancelable/Non-Returnable.
Ships in 3-5 Days
Power Systems & Supplies
Honeywell Power cord (77900506E)
Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0 ft.) - US. Non-Cancelable/Non-Returnable.
:
Carrying and Protective Accessories
Honeywell (HOLSTERE)
Storage (for 3820, 4820 and 4820I Cordless Imagers and Battery Storage). Non-Cancelable/Non-Returnable.
Accessories
Honeywell Accessories (MB4-BAT-SCN01NAW0)
4 Bay Battery Charger for use with 3820, 3820I, 4820, 4820I, 6320DPM Lithium-ion Batteries NA Wallmount Power supply, Two Mounting Screws, and Instructions. Non-Cancelable/Non-Returnable.
:
AirTrack (100000495-COMPATIBLE)
Spare Battery, Lithium Ion, 2600 mAh. Compatible with Voyager 1202g, Voyager 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 3820 and 3820i. Comparable to part# 100000495.
Ships in 3-5 Days
AirTrack (100006732-COMPATIBLE)
Spare Battery, Lithium Ion, 2600 mAh. Compatible with Voyager 1202g, Voyager 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 3820 and 3820i. Comparable to part# 100006732.
Ships in 3-5 Days
AirTrack (BAT-SCN01-COMPATIBLE)
Spare Battery, Lithium Ion, 2600 mAh. Compatible with Voyager 1202g, Voyager 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 3820 and 3820i. Comparable to part# BAT-SCN01.
Ships in 3-5 Days
AirTrack (BAT-SCN01A-COMPATIBLE)
Spare Battery, Lithium Ion, 2600 mAh. Compatible with Voyager 1202g, Voyager 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 3820 and 3820i. Comparable to part# BAT-SCN01A.
Ships in 3-5 Days
Honeywell (MB4-BAT-SCN01AWO)
Battery Charger (4-Bay, with Wall Mount and Power supply) for the 3820, 3820I, 4820, 4820I and 6320
Honeywell (2020-CB-AE)
Base, With charging function only, No host interface or RF interface, For North America
Honeywell (42206203-02E)
Cable (3800__-15 USB Cable to IBM 9.2 feet USB Power 12V). Non-Cancelable/Non-Returnable.
Honeywell (PS-090-2000D-NA)
Power supply, 9V D/C, 100-240V AC, Includes Power cord (Part# 77900506E), Replaces Part# PS9U-21E.
Honeywell (PS-090-2000D-EU)
Power supply, 9 volt, 2.4 amp 4 pin barrel connector, power cord 77900508E, Input voltage with Euro AC connection. Replaces (Part# PS9U-22E).
Honeywell Power (PS-090-2000D-UK)
UK power supply, 9 volt, 2.4 amp 4 pin barrel connector, power cord 77900507E. Replaces (Part# PS9U-23E).
Honeywell (MB4-BAT-SCN01NAD0)
4-Bay Battery Charger for the 1202g, 3820, 3820I, 4820, 4820i, 1902, and 19011i Lithium Batteries. (Includes North American Desktop Power supply, two mounting screws and instructions)
Honeywell Granit 1911i & 1910i Accessories (BAT-SCN01)
Battery, Lithium-ion. Compatible with Honeywell Voyager 1202, 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 3820 and 3820i cordless scanners.
The Honeywell 3820SR0C0B-0FA0E is also known as HHP-3820SR0C0B-0FA0E or 3820SR0C0B0FA0E .
