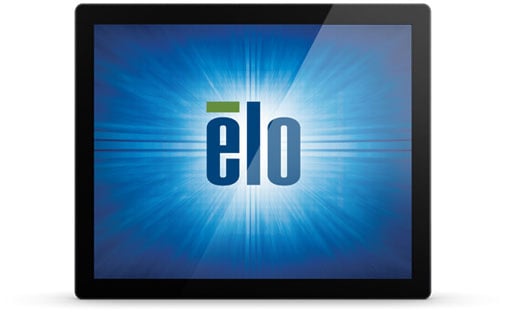

Elo 1990L Open-Frame Touchscreen

Elo 1990L Open-Frame  -  The Elo 1990L 19-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare. The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$512.36
Item on backorder — chat for lead time
Elo 1990L Open-Frame Touchscreen
Elo 1990L Open-Frame Touchscreen
Accessories For Elo 1990L Open-Frame Touchscreen

Display Type

Category

Elo 1990L Open-Frame Touchscreen Options

  • Elo E330817 Touchscreen

    Elo E330817 Touchscreen
    19" Touchscreen Monitor, Elo 1990L, Open-Frame LCD, 5:4 Aspect Ratio, Projected Capacitive 10-Touch, 1280 x 1024 SXGA, 16.7 million Colors, 225 nits Brightness (typical), LED Backlight, 1000:1 Contrast Ratio (typical), HDMI, VGA & Display Port Video Interface, USB Touch Controller Interface, Clear, Zero-Bezel, Flush Mount, Black, 3-Year Warranty, No Power Brick, RoHS, China RoHS, WEEE, Worldwide. Box Includes HDMI Cable (Part# E538507), VGA Cable, RJ45 OSD Remote (Part# E483757), Touch USB Cable (Part# E546861), Quick Install Guide, Flush Mount Brackets w/Screws (Part# E001178), EEI Label, Japan Class-B TM info sheet.
    In Stock
    $512.36
    Add to Quote
  • Elo E328497 Touchscreen

    Elo E328497 Touchscreen
    19" Touchscreen Monitor, Elo 1990L, Open-Frame LCD, 5:4 Aspect Ratio, IntelliTouch Single-Touch, 1280 x 1024 SXGA, 16.7 million Colors, 225 nits Brightness (typical), LED Backlight, 1000:1 Contrast Ratio (typical), HDMI, VGA & Display Port Video Interface, Dual Serial/USB Touch Controller Interface, Clear, Bezel, (Side Mount) Brackets, Black, 3-Year Warranty, No Power Brick, RoHS, China RoHS, WEEE, Worldwide. Box Includes HDMI Cable (Part# E538507), VGA Cable, RJ45 OSD Remote (Part# E483757), Touch USB Cable (Part# E546861), Quick Install Guide, L (Side Mount) Brackets and w/ Screws (Part# E163604), EEI Label, Japan Class-B TM info sheet.
    Item on backorder — chat for lead time
    $578.29
    Add to Quote
  • Elo E178104 Touchscreen

    Elo E178104 Touchscreen
    Elo 1990L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - 19" Class - Projected CapacitiveMulti-touch Screen - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - USB - VGA - DisplayPort - Black
    Item on backorder — chat for lead time
    Discontinued See Replacement
  • Elo E197256 Touchscreen

    Elo E197256 Touchscreen
    Elo 1990L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - 19" Class - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - USB - VGA - DisplayPort - Black
    Item on backorder — chat for lead time
    Discontinued See Replacement

Frequently Asked Questions

The Elo 1990L offers two touch technology choices to suit your application needs. You can select the standard bezel with IntelliTouch SAW technology, or opt for the zero-bezel Projected Capacitive (PCAP 2GS) option, which provides pristine optical clarity and enhanced touch durability. Both configurations support 10-touch multi-touch functionality with Thru-glass support for superior user interaction.

Yes, the Elo 1990L is designed for industrial automation and demanding environments. It features a sealed touchscreen that provides protection against dirt, dust, and liquids, ensuring reliable performance in challenging conditions. The display operates across a temperature range of 0°C to 40°C and humidity levels of 20% to 80%, making it suitable for most warehouse and industrial settings.

The Elo 1990L is highly energy-efficient with power consumption of just 18W when operating, 1.5W in sleep mode, and 0.5W when powered off. This low power draw is achieved through its state-of-the-art LED backlight technology, which reduces electricity consumption while maintaining excellent display brightness at 250 nits and generating minimal heat.

The Elo 1990L features a 19-inch diagonal display with a native resolution of 1280 x 1024 at 60 Hz. The active display area measures 376.3 x 301 mm (14.8 x 11.85 inches), providing clear visibility and responsive touch performance ideal for kiosk and self-service applications.

The Elo 1990L comes backed by a standard 3-year warranty, reflecting Elo's commitment to reliability and quality. This comprehensive coverage provides peace of mind for your investment in this industrial-grade touchscreen display.

The Elo 1990L is purpose-built for kiosks, retail self-service applications, industrial automation, casino and amusement environments, and healthcare settings. Its open-frame design, combined with exceptional image clarity, stable drift-free operation, and sealed contaminant protection, makes it perfect for any application requiring a reliable, cost-effective touchscreen solution. Contact us today to find the right configuration for your specific deployment needs.

Full specifications (PDF)

Elo 1990L Open-Frame Touchscreen Model Overview

The Elo 1990L 19-inch Open-Frame Touch Display is designed to enhance user interaction with its sleek, energy-efficient design and high-quality pure-glass touchscreen. This durable display is ideal for kiosks, retail self-service, and industrial automation, providing exceptional clarity and reliability in any environment. With features such as sealed touchscreen protection against dirt and liquids, as well as multiple touch technology options, including projected capacitive and IntelliTouch, the 1990L ensures a responsive and engaging user experience backed by a 3-year warranty.


Key Features:

  • Choice of Touch Technologies: Standard bezel with IntelliTouch SAW or zero-bezel Projected Capacitive options.
  • Optimal Clarity: PCAP 2GS offers pristine optical clarity and touch durability.
  • Sealed against Contaminants: Protection from dirt, dust, and liquids for reliable performance.
  • Energy Efficient: LED backlighting reduces power consumption while maintaining a slim profile.
  • Multi-Touch Capability: 10 touch functionality with Thru-glass support for enhanced usability.

Specifications:

  • Model: 1990L
  • Color: Black
  • Active Display Area: 376.3 x 301 mm / 14.8 x 11.85 inches
  • Diagonal Size: 19 inches
  • Native Resolution: 1280 x 1024 at 60 Hz
  • Brightness: 250 nits (LCD Panel)
  • Response Time: 5 ms
  • Contrast Ratio: 1000:1
  • Power Consumption: 18W (ON), 1.5W (SLEEP), 0.5W (OFF)
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Humidity: Operating 20% to 80% / Storage 10% to 95%
  • Warranty: 3 years standard
