Elo E328497 Touchscreen

Part Number: E328497
Model: 1990L
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$637.19
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
SXGA
Panel Technology
Thin Film Transistor (TFT)

Product Description:

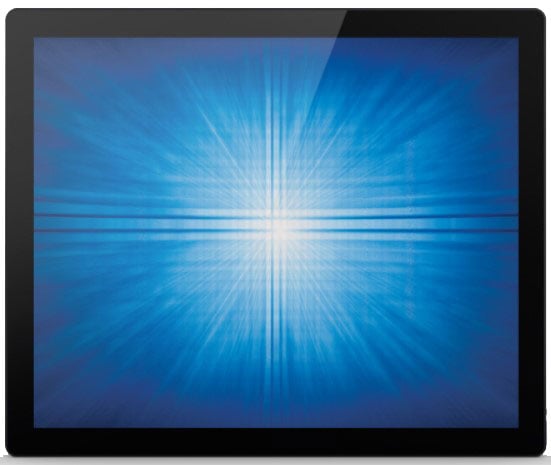

  19" Touchscreen Monitor, Elo 1990L, Open-Frame LCD, 5:4 Aspect Ratio, IntelliTouch Single-Touch, 1280 x 1024 SXGA, 16.7 million Colors, 225 nits Brightness (typical), LED Backlight, 1000:1 Contrast Ratio (typical), HDMI, VGA & Display Port Video Interface, Dual Serial/USB Touch Controller Interface, Clear, Bezel, (Side Mount) Brackets, Black, 3-Year Warranty, No Power Brick, RoHS, China RoHS, WEEE, Worldwide. Box Includes HDMI Cable (Part# E538507), VGA Cable, RJ45 OSD Remote (Part# E483757), Touch USB Cable (Part# E546861), Quick Install Guide, L (Side Mount) Brackets and w/ Screws (Part# E163604), EEI Label, Japan Class-B TM info sheet.
Explore all Elo 1990L Open-Frame Touchscreens
Add to Quote
Elo E328497 Touchscreen
Elo E328497 Touchscreen
Elo E328497 Touchscreen
Elo E328497 Touchscreen
Elo E328497 Touchscreen
Elo E328497 Touchscreen
Elo E328497 Touchscreen Elo E328497 Touchscreen Elo E328497 Touchscreen Elo E328497 Touchscreen Elo E328497 Touchscreen

Full specifications (PDF)

Elo 1990L Open-Frame Touchscreen Model Overview

The Elo 1990L 19-inch Open-Frame Touch Display is designed to enhance user interaction with its sleek, energy-efficient design and high-quality pure-glass touchscreen. This durable display is ideal for kiosks, retail self-service, and industrial automation, providing exceptional clarity and reliability in any environment. With features such as sealed touchscreen protection against dirt and liquids, as well as multiple touch technology options, including projected capacitive and IntelliTouch, the 1990L ensures a responsive and engaging user experience backed by a 3-year warranty.


Key Features:

  • Choice of Touch Technologies: Standard bezel with IntelliTouch SAW or zero-bezel Projected Capacitive options.
  • Optimal Clarity: PCAP 2GS offers pristine optical clarity and touch durability.
  • Sealed against Contaminants: Protection from dirt, dust, and liquids for reliable performance.
  • Energy Efficient: LED backlighting reduces power consumption while maintaining a slim profile.
  • Multi-Touch Capability: 10 touch functionality with Thru-glass support for enhanced usability.

Specifications:

  • Model: 1990L
  • Color: Black
  • Active Display Area: 376.3 x 301 mm / 14.8 x 11.85 inches
  • Diagonal Size: 19 inches
  • Native Resolution: 1280 x 1024 at 60 Hz
  • Brightness: 250 nits (LCD Panel)
  • Response Time: 5 ms
  • Contrast Ratio: 1000:1
  • Power Consumption: 18W (ON), 1.5W (SLEEP), 0.5W (OFF)
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Humidity: Operating 20% to 80% / Storage 10% to 95%
  • Warranty: 3 years standard
Elo E328497 Touchscreen Overview
The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • LED backlighting allows for state-of-the-art slim design while reducing power consumption
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Display Port and VGA video interfaces
Full specifications (PDF)
Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Mount Type:
  • Front Mount
  • Rack-mountable
Backlight Technology:
LED
Features:
On-screen Display (OSD)
Curved Screen:
Yes
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
IntelliTouch Surface Wave
Interfaces/Ports
HDMI:
Yes
HDMI Version:
1.3
USB:
Yes
USB Standard:
USB 2.0
VGA:
Yes
DisplayPort:
Yes
DisplayPort Version:
1.1a
Serial Port:
Yes
Power Description
Operating Power Consumption:
22 W
Standby Power Consumption:
1.50 W
Off-Mode Power Consumption:
500 mW
Energy Consumption per Year:
34 kWh
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
13.5"
Width:
16.3"
Depth:
2"
Weight (Approximate):
10.14 lb
Miscellaneous
Package Contents:
  • 1990L 19" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Certifications & Standards:
  • TÜV
    • Mean Time Between Failures (MTBF):
    5.7 Year
    Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • China RoHS
    • WEEE
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 0086242018034, 0815335025877, 0818213926693, 4963263161337
    UPC: 086242018034, 815335025877, 818213926693, 818214445513
    EAN: 0086242018034, 0815335025877, 0818213926693, 4963263161337
    UNSPSC: 43211903
