Elo E330817 Touchscreen

Part Number: E330817
Model: 1990L
Add to My Shopping List Add to Compare
$512.36
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
SXGA
Response Time
5 ms

Product Description:

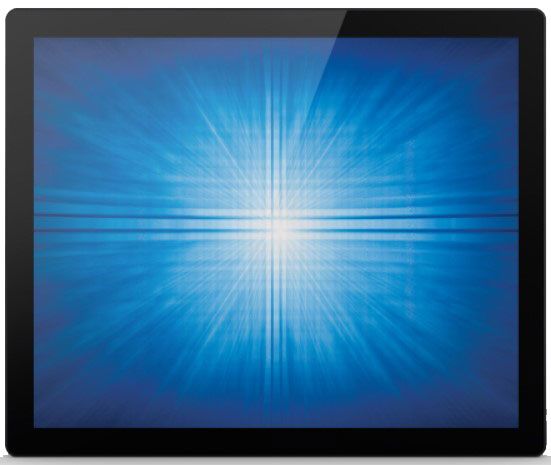

  19" Touchscreen Monitor, Elo 1990L, Open-Frame LCD, 5:4 Aspect Ratio, Projected Capacitive 10-Touch, 1280 x 1024 SXGA, 16.7 million Colors, 225 nits Brightness (typical), LED Backlight, 1000:1 Contrast Ratio (typical), HDMI, VGA & Display Port Video Interface, USB Touch Controller Interface, Clear, Zero-Bezel, Flush Mount, Black, 3-Year Warranty, No Power Brick, RoHS, China RoHS, WEEE, Worldwide. Box Includes HDMI Cable (Part# E538507), VGA Cable, RJ45 OSD Remote (Part# E483757), Touch USB Cable (Part# E546861), Quick Install Guide, Flush Mount Brackets w/Screws (Part# E001178), EEI Label, Japan Class-B TM info sheet.
Explore all Elo 1990L Open-Frame Touchscreens
Add to Quote
Elo E330817 Touchscreen
Elo E330817 Touchscreen
Elo E330817 Touchscreen
Elo E330817 Touchscreen
Elo E330817 Touchscreen
Elo E330817 Touchscreen
Elo E330817 Touchscreen Elo E330817 Touchscreen Elo E330817 Touchscreen Elo E330817 Touchscreen Elo E330817 Touchscreen

Full specifications (PDF)

Elo 1990L Open-Frame Touchscreen Model Overview

The Elo 1990L 19-inch Open-Frame Touch Display is designed to enhance user interaction with its sleek, energy-efficient design and high-quality pure-glass touchscreen. This durable display is ideal for kiosks, retail self-service, and industrial automation, providing exceptional clarity and reliability in any environment. With features such as sealed touchscreen protection against dirt and liquids, as well as multiple touch technology options, including projected capacitive and IntelliTouch, the 1990L ensures a responsive and engaging user experience backed by a 3-year warranty.


Key Features:

  • Choice of Touch Technologies: Standard bezel with IntelliTouch SAW or zero-bezel Projected Capacitive options.
  • Optimal Clarity: PCAP 2GS offers pristine optical clarity and touch durability.
  • Sealed against Contaminants: Protection from dirt, dust, and liquids for reliable performance.
  • Energy Efficient: LED backlighting reduces power consumption while maintaining a slim profile.
  • Multi-Touch Capability: 10 touch functionality with Thru-glass support for enhanced usability.

Specifications:

  • Model: 1990L
  • Color: Black
  • Active Display Area: 376.3 x 301 mm / 14.8 x 11.85 inches
  • Diagonal Size: 19 inches
  • Native Resolution: 1280 x 1024 at 60 Hz
  • Brightness: 250 nits (LCD Panel)
  • Response Time: 5 ms
  • Contrast Ratio: 1000:1
  • Power Consumption: 18W (ON), 1.5W (SLEEP), 0.5W (OFF)
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Humidity: Operating 20% to 80% / Storage 10% to 95%
  • Warranty: 3 years standard
Elo E330817 Touchscreen Overview

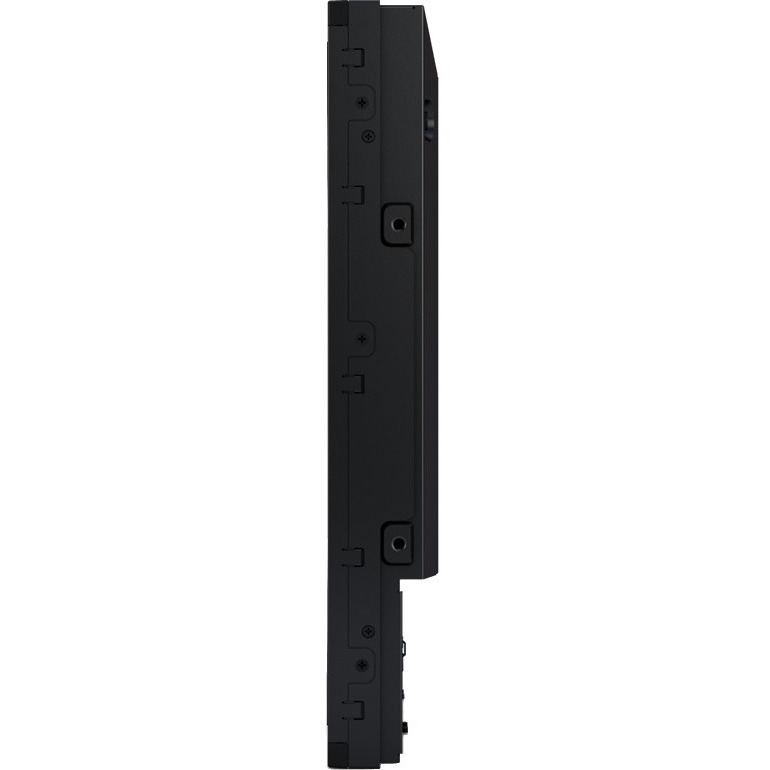

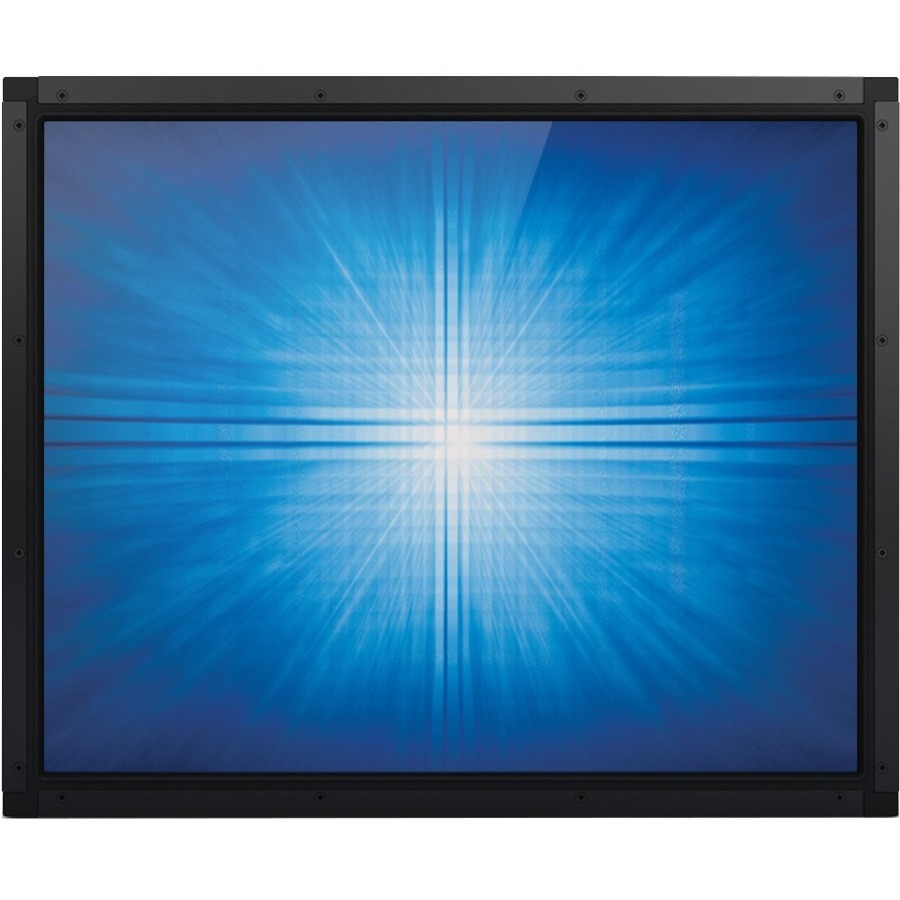

The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • LED backlighting allows for state-of-the-art slim design while reducing power consumption
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Display Port and VGA video interfaces
Full specifications (PDF)
Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Response Time:
5 ms
Aspect Ratio:
5:4
Mount Type:
  • Front Mount
  • Rack-mountable
Backlight Technology:
LED
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Physical Characteristics
VESA Mount Compatible:
Yes
Product Color:
Black
Height:
13.5"
Width:
16.3"
Depth:
2"
Weight (Approximate):
10.14 lb
Miscellaneous
Package Contents:
  • 1990L 19" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Certifications & Standards:
  • TÜV
    • Environmentally Friendly:
    Yes
    Environmental Compliance:
    • Restriction of Hazardous Substances (RoHS)
    • China Restriction of Hazardous Substances (China RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 0129937643576, 0815335025990, 0818213929571, 0818214096678, 0818214445803
    UPC: 129937643576, 815335025990, 818213929571, 818214096678, 818214445803
    EAN: 0129937643576, 0815335025990, 0818213929571, 0818214096678, 0818214445803
    UNSPSC: 43211903

    Recommended Accessories

    Category

    • Data Networking Device Accessories (1)
    • Digital Signage Display Accessories (1)
    • Elo Touchscreen (1)
    • Mounting Hardware and Stands (1)
    • Service Contract (2)
    • Touchscreen Accessories (24)

    Recommended Accessories for Model: Elo E330817 Touchscreen

    Top Data Networking Device Accessories Purchased With Elo E330817

    • Elo E239980 Accessory
      Elo E239980 Accessory
      Power Systems & Supplies, ELO, ELO-Kit Power Converter 24VDC to 12VDC
      Item on backorder — chat for lead time
      $73.69
      Add to Quote

    Top Digital Signage Display Accessories Purchased With Elo E330817

    Top Elo Touchscreen Purchased With Elo E330817

    Top Mounting Hardware and Stands Purchased With Elo E330817

    Top Service Contract Purchased With Elo E330817

    • Elo E895125 Service Contract
      Elo E895125 Service Contract
      Service Contracts, ELO, 5 Year Extended Warranty, Advance Unit Replacement, Maintenance, Parts & Labor, Touch Monitor and Small Format Open Frame
      In Stock
      $126.00
      Add to Quote
    • Elo E898648 Service Contract
      Elo E898648 Service Contract
      Service Contracts, ELO, Elo Touch Monitor 3 Year Extended Warranty, Advance Unit Replacement, Maintenance, Parts & Labor
      In Stock
      $55.00
      Add to Quote

    Top Touchscreen Accessories Purchased With Elo E330817

    See All Touchscreen Accessories for Elo E330817 Touchscreen >

    Frequently Asked Questions

    The Elo 1990L features projected capacitive 10-touch technology, delivering accurate and responsive touch input across the 19-inch display. This technology provides drift-free operation and reliable performance for high-traffic kiosk and industrial applications.

    The Elo 1990L offers multiple video interface options including HDMI, VGA, and DisplayPort connections. This versatility makes it compatible with a wide range of systems and allows flexible integration into existing setups.

    Yes, the Elo 1990L is specifically designed for self-service kiosk environments and is part of Elo's 90-Series product line built for commercial kiosk applications. Its open-frame design, zero-bezel construction, and proven reliability make it ideal for retail self-service and customer-facing installations.

    The Elo 1990L delivers 225 nits brightness (typical) and supports 16.7 million colors with a 1000:1 contrast ratio (typical). These specifications ensure vivid image clarity and outstanding visual performance in commercial environments.

    The Elo 1990L features a zero-bezel, flush mount design with included flush mount brackets and screws for secure installation. This compact design with narrow outside dimensions makes it ideal for space-constrained kiosk and industrial automation environments.

    The package includes an HDMI cable, VGA cable, RJ45 OSD remote control, touch USB cable, quick install guide, flush mount brackets with screws, and documentation. Contact us today to verify current bundle contents and ensure you have everything needed for your installation.

    The Elo E330817 Touchscreen is also known as ELO-E330817 or E330817.
