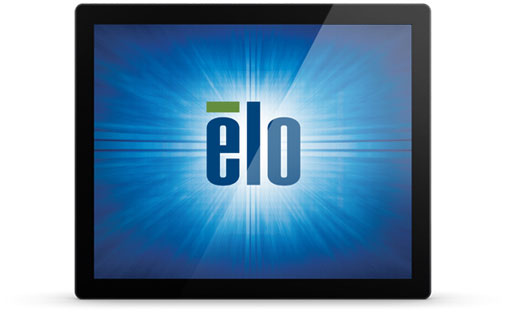

Elo E197256 Touchscreen

Elo E328497 Touchscreen A newer version of this item is available.
It is replaced by the Elo E328497 Touchscreen.

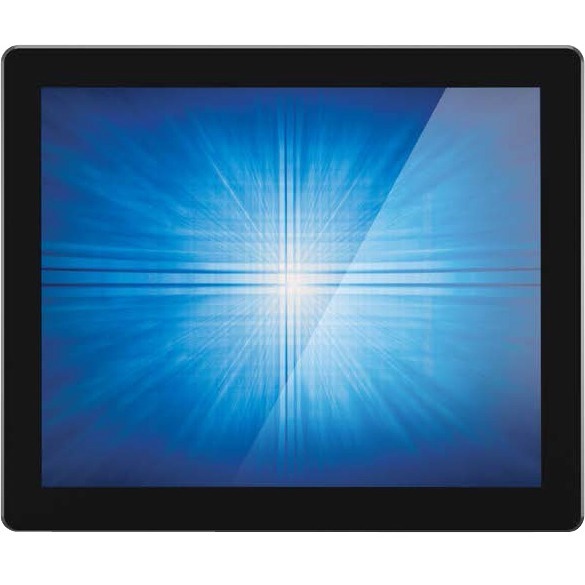

Elo 1990L Open-Frame - Elo 1990L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - 19" Class - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - USB - VGA - DisplayPort - Black
  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
  • The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
Discontinued See Replacement
Add to Quote
Elo 1990L Open-Frame Touchscreen Model Overview
The Elo 1990L 19-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare. The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Elo E197256 Touchscreen Overview

The Elo 1990L 19" open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the art energy-saving LED backlight, using less electricity to operate and generating less heat. The 1990L instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial floor automation.

This compact touch display is "designed for touch" with proven Elo expertise and reliability built in. The 1990L provides stable "drift-free" operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Long-lasting product availability can be expected as the design and tooling is controlled by Elo specifications.

Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Response Time:
5 ms
Aspect Ratio:
5:4
Mount Type:
  • Rack-mountable
  • Flush Mount
  • Front Mount
Backlight Technology:
LED
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen Type:
IntelliTouch Surface Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Power Description
Operating Power Consumption:
18 W
Physical Characteristics
VESA Mount Compatible:
Yes
Product Color:
Black
Height:
13.5"
Width:
16.3"
Depth:
2"
Weight (Approximate):
10.14 lb
Item Numbers
GTIN: 0834619006890
UPC: 834619006890
EAN: 0834619006890
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E197256 Touchscreen is also known as ELO-E197256 or E197256.
