Elo 1523L Touchscreen
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
Subscribe & Save Eligible
- No (3)
Category
Elo 1523L Touchscreen Options
-
Elo E394454 Touchscreen
15" Touchscreen Monitor, Elo 1523L, Desktop LCD, 4:3 Aspect Ratio, IntelliTouch ZB Dual-Touch, 1024 x 768, 16.2 million Colors, 270 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), VGA & DVI Video Interface, USB Touch Controller Interface, Anti-Glare, Zero-Bezel, Stand, Black, 3-Year Warranty, Speakers, Adjustable Display Angle, Worldwide. Box Includes Quick Install Guide, Japan Class-B TM Info Sheet, User Manual CD, 50W Power Brick (Part# E005277), Power Cable (Part# E378229), IEC 60320-C13 to NA/EU Plug, DVI-D Cable, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (Type A plug to Type B plug), Audio Cable, Stand Base Assembly, Filler Plate (Part# E000448),In Stock$762.39 -
Elo E738607 Touchscreen
15" Touchscreen Monitor, Elo 1523L, Desktop LCD, 4:3 Aspect Ratio, Projected Capacitive 10-Touch, 1024 x 768 XGA, 16.2 million Colors, 270 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), VGA & DVI Video Interface, USB Touch Controller Interface, Anti-Glare, Zero-Bezel, Stand, Black, 3-Year Warranty, Speakers, RoHS, China RoHS, WEEE, Worldwide. Box Includes Quick Install Guide, Japan Class-B TM Info Sheet, User Manual CD, 50W Power Brick (Part# E005277), Power Cable (Part# E378229), IEC 60320-C13 to NA/EU Plug, DVI-D Cable, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (Type A plug to Type B plug), Audio Cable, Stand Base Assembly, Filler Plate (Part# E000448),In Stock$787.12 -
Elo E336518 Touchscreen
15" Touchscreen Monitor, Elo 1523L, Desktop LCD, 4:3 Aspect Ratio, Projected Capacitive 10-Touch, 1024 x 768 XGA, 16.2 million Colors, 270 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), VGA & DVI Video Interface, USB Touch Controller Interface, Anti-Glare, Zero-Bezel, Stand, White, 3-Year Warranty, Speakers, RoHS, China RoHS, WEEE, Worldwide. Box Includes Quick Install Guide, Japan Class-B TM Info Sheet, User Manual CD, 50W Power Brick (Part# E005277), Power Cable (Part# E378229), IEC 60320-C13 to NA/EU Plug, DVI-D Cable, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (Type A plug to Type B plug), Audio Cable, Stand Base Assembly, Filler Plate (Part# E000449),In Stock$794.63 -
Elo E243774 Touchscreen
Elo 1523L 15" LCD Touchscreen Monitor - 4:3 - 25 ms - 15" Class - Surface Acoustic WaveMulti-touch Screen - 1024 x 768 - XGA - Adjustable Display Angle - 16.2 Million Colors - 700:1 - 250 Nit - Speakers - DVI - USB - VGA - White - 3 YearItem on backorder — chat for lead time
Frequently Asked Questions
What touch technologies are available on the Elo 1523L touchscreen monitor?
The Elo 1523L is available with two industry-leading touch technologies: IntelliTouch surface acoustic wave (SAW) for superior optical quality in dry retail and hospitality environments, and TouchPro PCAP for a 10-touch tablet-like experience with fast and extremely sensitive responses. Both technologies enable multi-touch functionality with a seamless zero-bezel display for accurate touch response and vivid image clarity.
What are the display specifications for the Elo 1523L?
The Elo 1523L features a 15-inch standard format LCD touchscreen monitor with a zero-bezel edge-to-edge glass design. It delivers outstanding image clarity and resolution with a sleek, modern aesthetic available in both black and white finishes, making it well-suited for high-traffic retail and hospitality interactive solutions.
What mounting options does the Elo 1523L support?
The Elo 1523L offers multiple mount and stand options to ensure installation flexibility for various environments. It accommodates tabletop use as well as wall- and pole-mount installations in both portrait and landscape orientations, providing adaptability for different retail and hospitality deployment scenarios.
Is the Elo 1523L suitable for multi-user environments?
Yes, the Elo 1523L is designed for multi-user interaction with its zero-bezel edge-to-edge glass design and multi-touch capable touchscreen technologies. Both the IntelliTouch SAW and TouchPro PCAP options support seamless multi-touch functionality, making it ideal for high-traffic retail and hospitality applications where multiple users interact with the display.
What is included with an Elo 1523L Service Contract?
We offer comprehensive service contract options for the Elo 1523L touchscreen monitor to ensure your equipment remains operational and supported. Contact us today or visit barcodesinc.com to discuss the right service plan for your 1523L deployment and learn about coverage options tailored to your business needs.
How can I choose the right service plan for my Elo 1523L?
Our expert team at Barcodes Inc can help you select the ideal service contract for your Elo 1523L touchscreen monitor based on your operational requirements and environment. Contact us today via phone or use our Online Chat to discuss coverage options, warranty extensions, and support levels that best fit your retail or hospitality application.
Elo 1523L Touchscreen Model Overview
The Elo Touch Solutions 1523L 15-inch LED Desktop Touchmonitor is designed to offer exceptional reliability and aesthetic appeal for high-traffic retail and hospitality interactive solutions. With zero-bezel style and robust touch technologies, this touchmonitor provides an engaging user experience while ensuring energy efficiency with 40% savings through LED technology. Integrated peripheral options such as a webcam and RFID reader enhance its functionality, while the sleek edge-to-edge flat glass design lends modern elegance to any application.
Built for touch interaction, the 1523L features a spill-resistant design, adjustable stand, and versatile mounting options, making it ideal for Point-of-Service, Point-of-Sale, and kiosk information systems.
- Zero-Bezel Style with "Built for Touch" Reliability
- 40% Energy Savings using LED Technology

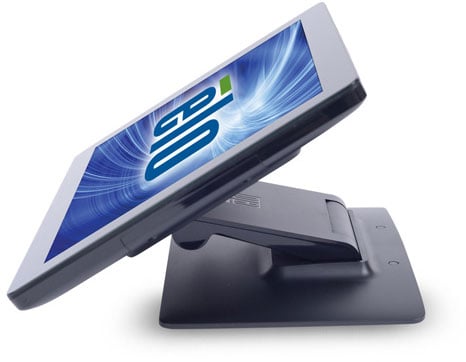

- Dual-position Stand with Tilt functionality
- 3 Year Standard Warranty
- 10-touch interaction with IntelliTouch Pro projected capacitive and IntelliTouch Zero-Bezel surface acoustic wave
- Spill-resistant sealing for added durability
- Integrated peripheral options such as MSR, NFC/RFID, webcam, and brackets
- VESA mounting option for easy installation
- Model: 1523L
- Color: Black or White
- Active Display Area: 11.97" x 9.98" (304.128mm x 228.096mm)
- Dimensions: 14.1" x 7.84" x 12.54" (358.1mm x 199.1mm x 318.5mm)
- Diagonal Size: 15"
- Native Resolution: 1024 x 768
- Brightness: 250 nits; IntelliTouch Pro: 225 nits; IntelliTouch ZB: 225 nits
- Response Time: 25 ms
- Viewing Angle: Horizontal: 160°; Vertical: 140°
- Warranty: 3 years
