Elo E243774 Touchscreen

A newer version of this item is available.
It is replaced by the Elo E394454 Touchscreen.

Elo 1523L - Elo 1523L 15" LCD Touchscreen Monitor - 4:3 - 25 ms - 15" Class - Surface Acoustic WaveMulti-touch Screen - 1024 x 768 - XGA - Adjustable Display Angle - 16.2 Million Colors - 700:1 - 250 Nit - Speakers - DVI - USB - VGA - White - 3 Year

The XGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
The Surface Acoustic Wave (SAW) touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
Furnishes captivating visuals with about 250 Nit brightness levels
VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Need a different version? See all Elo 1523L Touchscreens

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

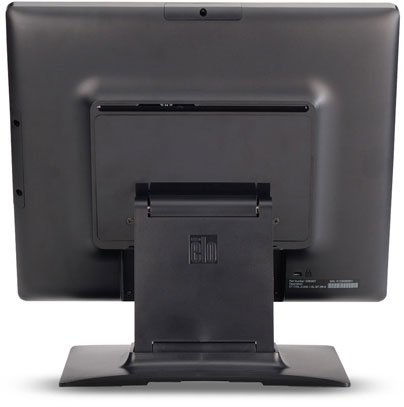

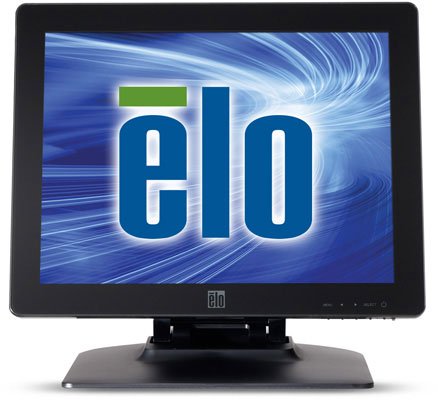

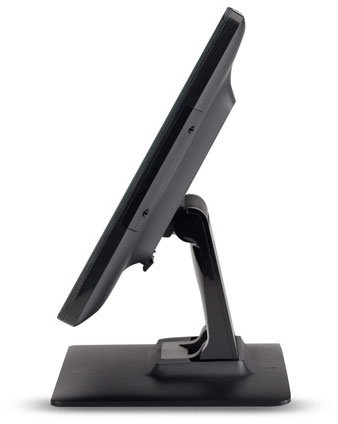

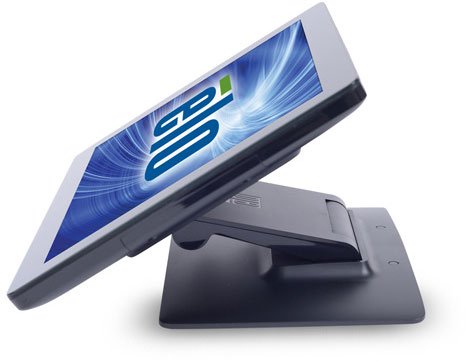

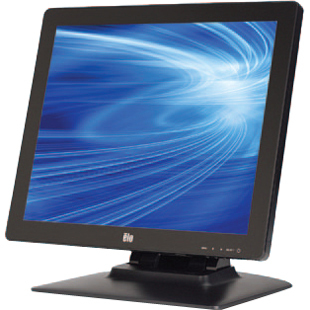

Elo 1523L Touchscreen Model Overview

The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket. The edge to edge flat glass style of the 1523L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.

Elo E243774 Touchscreen Overview

The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

15"

Viewable Screen Size:

15"

Screen Mode:

XGA

Screen Surface:

Anti-glare
Anti-scratch

Response Time:

25 ms

Aspect Ratio:

4:3

Horizontal Viewing Angle:

160°

Vertical Viewing Angle:

140°

Adjustable Display Angle:

Yes

Adjustable Display Height:

Yes

Mount Type:

Desk Mountable
Wall Mountable

Features:

Cable Management
Water Proof

Adjustable Stand Height:

Yes

Video

Maximum Resolution:

1024 x 768

Standard Refresh Rate:

60 Hz

Color Supported:

16.2 Million Colors

Contrast Ratio:

700:1

Brightness:

250 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Surface Acoustic Wave

Multi-touch Screen:

Yes

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Built-in Devices

Built-in Devices:

USB Hub

Power Description

Input Voltage:

110 V AC
220 V AC

Operating Power Consumption:

12 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

75 x 75

Product Color:

White

Height with Stand:

7.83"

Width with Stand:

14.09"

Depth with Stand:

12.52"

Weight (Approximate):

5.84 lb

Weight with Stand (Approximate):

9.79 lb

Miscellaneous

Package Contents:

1523L Multifunction 15-Inch Desktop Touchmonitor
Touch Cables
Video Cables

Certifications & Standards:

UL/cUL
FCC-A
Semko
CE
VCCI
C-Tick

Platform Supported:

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 4923773182048, 4943783154989, 7411493331084

EAN: 4923773182048, 4943783154989, 7411493331084

UNSPSC: 43211903
