The Elo Touch Solutions 1523L 15-inch LED Desktop Touchmonitor is designed to offer exceptional reliability and aesthetic appeal for high-traffic retail and hospitality interactive solutions. With zero-bezel style and robust touch technologies, this touchmonitor provides an engaging user experience while ensuring energy efficiency with 40% savings through LED technology. Integrated peripheral options such as a webcam and RFID reader enhance its functionality, while the sleek edge-to-edge flat glass design lends modern elegance to any application.
Built for touch interaction, the 1523L features a spill-resistant design, adjustable stand, and versatile mounting options, making it ideal for Point-of-Service, Point-of-Sale, and kiosk information systems.
Zero-Bezel Style with "Built for Touch" Reliability
40% Energy Savings using LED Technology
Dual-position Stand with Tilt functionality
3 Year Standard Warranty
10-touch interaction with IntelliTouch Pro projected capacitive and IntelliTouch Zero-Bezel surface acoustic wave
Spill-resistant sealing for added durability
Integrated peripheral options such as MSR, NFC/RFID, webcam, and brackets
VESA mounting option for easy installation
Model: 1523L

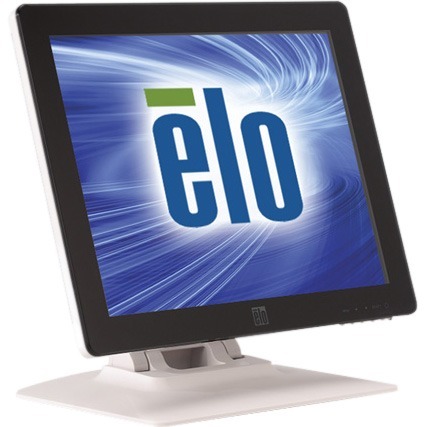

Color: Black or White
Active Display Area: 11.97" x 9.98" (304.128mm x 228.096mm)
Dimensions: 14.1" x 7.84" x 12.54" (358.1mm x 199.1mm x 318.5mm)
The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.
The edge to edge flat glass style of the 1523L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.
Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
What touchscreen technologies are available on the Elo 1523L?
The Elo 1523L offers two industry-leading touchscreen technologies to choose from. IntelliTouch surface acoustic wave (SAW) delivers ultimate optical quality for dry retail and hospitality applications, while TouchPro PCAP provides a 10-touch tablet-like experience with fast and extremely sensitive responses. Both technologies enable multi-touch functionality with a seamless zero-bezel display and drift-free operation.
What are the display specifications of the Elo E336518 touchscreen monitor?
The Elo 1523L is a 15-inch standard format touchscreen monitor with a 4:3 aspect ratio and XGA resolution of 1024 x 768 pixels. It features 16.2 million colors, 270 nits brightness (typical), an 800:1 contrast ratio (typical), LED backlight, and an anti-glare zero-bezel design available in black or white finishes.
What mounting options and installation flexibility does this touchscreen offer?
The Elo 1523L provides multiple mount and stand options to accommodate various installation needs. It supports standard VESA mount patterns for wall and pole mounting in both portrait and landscape orientations, as well as tabletop use. The included dual position stand features a single hinge design with high/low settings and tilt functionality for flexible positioning.
What video and connectivity interfaces does the Elo 1523L have?
The Elo 1523L includes both VGA and DVI video interfaces for display connectivity, along with a USB touch controller interface. The package includes VGA and DVI-D cables, a USB cable (Type A to Type B), and an audio cable to support various connection configurations.
Is the Elo 1523L suitable for retail and hospitality environments?
Yes, the Elo 1523L is specifically designed to meet the durability and aesthetic requirements for high-traffic retail and hospitality interactive solutions. Its sleek, edge-to-edge glass design brings a clean, modern feel to any environment, while the zero-bezel touchscreen and choice of industry-leading touch technologies ensure reliable performance in demanding customer-facing applications.
What warranty and support does the Elo 1523L include?
The Elo 1523L is backed by a three-year standard warranty, reflecting Elo's commitment to quality and reliability. We offer this touchscreen monitor through our team at Barcodes Inc, and the package includes a quick install guide, user manual on CD, and all necessary cables and accessories for immediate deployment.
The Elo E336518 Touchscreen is also known as
ELO-E336518
or E336518.
Full specifications (PDF)
