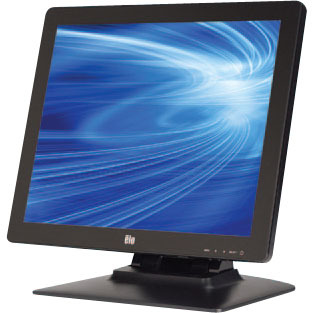

Elo E394454 Touchscreen

Part Number: E394454

Model: 1523L

$814.57

In Stock

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Screen Size Class

15"

Viewable Screen Size

15"

Screen Surface

Anti-glareAnti-scratch

Response Time

25 ms

Product Description:

15" Touchscreen Monitor, Elo 1523L, Desktop LCD, 4:3 Aspect Ratio, IntelliTouch ZB Dual-Touch, 1024 x 768, 16.2 million Colors, 270 nits Brightness (typical), LED Backlight, 800:1 Contrast Ratio (typical), VGA & DVI Video Interface, USB Touch Controller Interface, Anti-Glare, Zero-Bezel, Stand, Black, 3-Year Warranty, Speakers, Adjustable Display Angle, Worldwide. Box Includes Quick Install Guide, Japan Class-B TM Info Sheet, User Manual CD, 50W Power Brick (Part# E005277), Power Cable (Part# E378229), IEC 60320-C13 to NA/EU Plug, DVI-D Cable, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (Type A plug to Type B plug), Audio Cable, Stand Base Assembly, Filler Plate (Part# E000448),

Explore all Elo 1523L Touchscreens

Add to Quote

Overview

Full specifications (PDF)

Elo 1523L Touchscreen Model Overview

The Elo Touch Solutions 1523L 15-inch LED Desktop Touchmonitor is designed to offer exceptional reliability and aesthetic appeal for high-traffic retail and hospitality interactive solutions. With zero-bezel style and robust touch technologies, this touchmonitor provides an engaging user experience while ensuring energy efficiency with 40% savings through LED technology. Integrated peripheral options such as a webcam and RFID reader enhance its functionality, while the sleek edge-to-edge flat glass design lends modern elegance to any application.

Built for touch interaction, the 1523L features a spill-resistant design, adjustable stand, and versatile mounting options, making it ideal for Point-of-Service, Point-of-Sale, and kiosk information systems.

Zero-Bezel Style with "Built for Touch" Reliability
40% Energy Savings using LED Technology

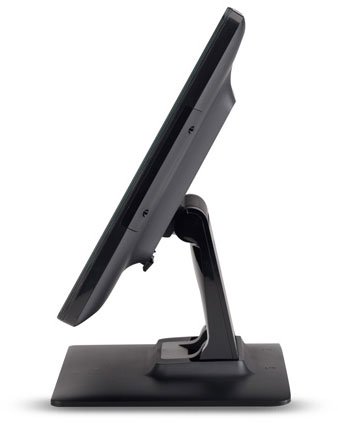

Dual-position Stand with Tilt functionality
3 Year Standard Warranty
10-touch interaction with IntelliTouch Pro projected capacitive and IntelliTouch Zero-Bezel surface acoustic wave
Spill-resistant sealing for added durability
Integrated peripheral options such as MSR, NFC/RFID, webcam, and brackets
VESA mounting option for easy installation

Model: 1523L
Color: Black or White
Active Display Area: 11.97" x 9.98" (304.128mm x 228.096mm)
Dimensions: 14.1" x 7.84" x 12.54" (358.1mm x 199.1mm x 318.5mm)
Diagonal Size: 15"
Native Resolution: 1024 x 768
Brightness: 250 nits; IntelliTouch Pro: 225 nits; IntelliTouch ZB: 225 nits
Response Time: 25 ms
Viewing Angle: Horizontal: 160°; Vertical: 140°
Warranty: 3 years

Elo E394454 Touchscreen Overview

The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

15"

Viewable Screen Size:

15"

Screen Surface:

Anti-glare
Anti-scratch

Response Time:

25 ms

Aspect Ratio:

4:3

Horizontal Viewing Angle:

160°

Vertical Viewing Angle:

140°

Adjustable Display Angle:

Yes

Adjustable Display Height:

Yes

Mount Type:

Desk Mountable
Wall Mountable

Features:

Security Lock
Water Proof
Cable Management

Adjustable Stand Height:

Yes

Video

Maximum Resolution:

1024 x 768

Standard Refresh Rate:

60 Hz

Color Supported:

16.2 Million Colors

Contrast Ratio:

700:1

Brightness:

250 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Surface Acoustic Wave

Multi-touch Screen:

Yes

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Built-in Devices

Built-in Devices:

USB Hub

Power Description

Input Voltage:

110 V AC
220 V AC

Operating Power Consumption:

12 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

75 x 75

Product Color:

Black

Height with Stand:

7.83"

Width with Stand:

14.09"

Depth with Stand:

12.52"

Weight (Approximate):

5.84 lb

Weight with Stand (Approximate):

9.79 lb

Miscellaneous

Package Contents:

1523L Multifunction 15-Inch Desktop Touchmonitor
Touch Cables
Video Cables

Certifications & Standards:

UL/cUL
FCC-A
Semko
CE
VCCI
C-Tick

Platform Supported:

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0606032861512, 0815335022227, 0818244580413, 7411493330926

UPC: 606032861512, 686727773276, 815335022227, 818244580413

EAN: 0606032861512, 0815335022227, 0818244580413, 7411493330926

UNSPSC: 43211903
