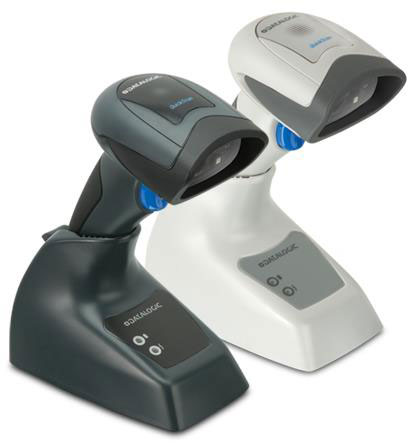

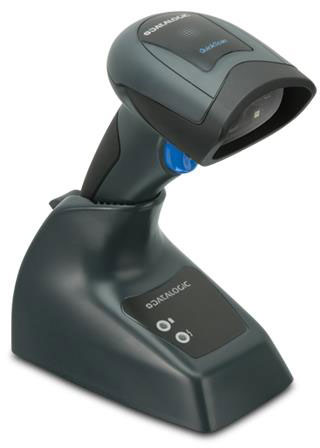

Datalogic QuickScan QBT2131 Barcode Scanner

Quickscan Scanner

Datalogic QuickScan QBT2131  -  The Datalogic QuickScan I QBT2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance. The QuickScan I QBT2131's Bluetooth wireless technology is key in increasing productivity and flexibility in the workplace.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$181.63
In Stock
Datalogic QuickScan QBT2131 Barcode Scanner
Datalogic QuickScan QBT2131 Barcode Scanner
Datalogic QuickScan QBT2131 Barcode Scanner
Datalogic QuickScan QBT2131 Barcode Scanner
Datalogic QuickScan QBT2131 Barcode Scanner Datalogic QuickScan QBT2131 Barcode Scanner Datalogic QuickScan QBT2131 Barcode Scanner Datalogic QuickScan QBT2131 Barcode Scanner
Accessories For Datalogic QuickScan QBT2131 Barcode Scanner

Color

Kit Options

Interface Options

Category

Datalogic QuickScan QBT2131 Barcode Scanner Options

  • Datalogic QBT2101-BK-BTK+ Barcode Scanner

    Datalogic QBT2101-BK-BTK+ Barcode Scanner
    Cordless Barcode Scanner, Datalogic QuickScan QBT2101, 1D Linear Imager, General Purpose, Handheld, Bluetooth, Black. Kit inc. Imager and USB Micro Cable.
    In Stock
    $181.63
    Add to Quote
  • Datalogic QBT2101-WH-BTK+ Barcode Scanner

    Datalogic QBT2101-WH-BTK+ Barcode Scanner
    Cordless Barcode Scanner, Datalogic QuickScan QBT2101, 1D Linear Imager, General Purpose, Handheld, Bluetooth, White. Kit inc. Imager and USB Micro Cable.
    Item on backorder — chat for lead time
    $181.63
    Add to Quote
  • Datalogic QBT2131-BK-BTK1 Barcode Scanner

    Datalogic QBT2131-BK-BTK1 Barcode Scanner
    Cordless Barcode Scanner, Datalogic QuickScan QBT2131, 1D Linear Imager, General Purpose, Handheld, Bluetooth, Black. Kit inc. Imager and Base Station 90A052258. Kit inc. Imager, Base Station and 90A052258 USB Cable.
    In Stock
    $286.29
    Add to Quote
  • Datalogic QBT2131-BK-BTK2 Barcode Scanner

    Datalogic QBT2131-BK-BTK2 Barcode Scanner
    Cordless Barcode Scanner, Datalogic QuickScan QBT2131, 1D Linear Imager, General Purpose, Handheld, Bluetooth, RS-232, Black. Kit inc. Imager, Base Station and 90G000008 RS-232 Cable, 8-0935 Power Supply and 6003-0940 EU Line Cord.
    Item on backorder — chat for lead time
    $292.96
    Add to Quote
  • Datalogic QBT2131-WH Barcode Scanner

    Datalogic QBT2131-WH Barcode Scanner
    Cordless Barcode Scanner, Datalogic QuickScan QBT2131, 1D Linear Imager, General Purpose, Handheld, Bluetooth, SCANNER ONLY, White. Kit inc. Imager and Base Station/Charger. Cables and Power Supply Must Be Ordered Separately. Kit inc. Imager and Base Station/Charger. Cables and Power Supply Must Be Ordered Separately.
    Item on backorder — chat for lead time
    $316.56
    Add to Quote
  • Datalogic QBT2131-BK Barcode Scanner

    Datalogic QBT2131-BK Barcode Scanner
    Cordless Barcode Scanner, Datalogic QuickScan QBT2131, 1D Linear Imager, General Purpose, Handheld, Bluetooth, SCANNER ONLY, Black. Kit inc. Imager and Base Station/Charger. Cables and Power Supply Must Be Ordered Separately. Kit inc. Imager and Base Station/Charger. Cables and Power Supply Must Be Ordered Separately.
    Item on backorder — chat for lead time
    Discontinued Need Assistance?

Frequently Asked Questions

The QuickScan QBT2131 features both Bluetooth Wireless Technology and Datalogic's STAR2.0 Cordless System for flexible cordless operation. Both connectivity options provide a radio range of 25 meters (82 feet) in open air, allowing you to scan from a distance while maintaining productivity across your warehouse or retail environment. We offer this scanner with either connectivity option to match your existing infrastructure.

Yes, the QuickScan QBT2131 is specifically designed for reading long linear barcodes thanks to its extra-wide scan angle and extra-long scan line. The scanner features a 56° field of view and can read barcodes at various distances depending on print resolution—for example, 20-mil codes can be read from 4 to 70 centimeters (1.5 to 27.5 inches). This makes it ideal for inventory management, retail checkout, and utilities applications where long barcode scanning is common.

The QuickScan QBT2131 is equipped with a Lithium-Ion 1400 mAh battery that provides 30,000+ reads per charge. The scanner supports multiple charging options including USB, microUSB, and a charging base, with external power charging taking less than 3 hours at 12 VDC. Battery replacement is tool-free, making maintenance quick and convenient for your team.

The QuickScan QBT2131 is built for demanding environments with drop resistance that withstands repeated drops from 1.5 meters (5.0 feet) onto concrete surfaces. It operates reliably across a temperature range of 0 to 50°C (32 to 122°F) and features IP42 particulate and water sealing protection. The scanner also includes 16 kV ESD protection and maintains 90% humidity tolerance, making it suitable for various warehouse and retail conditions.

The QuickScan QBT2131 auto-discriminates all standard 1D linear barcodes, including GS1 DataBar linear codes and postal codes. This versatility makes it compatible with most barcode systems used in retail, inventory, and logistics operations. Contact us today to confirm compatibility with your specific barcode formats.

Yes, the QuickScan QBT2131 includes Batch Mode capability, allowing it to store over 500 linear codes for later transmission. This feature is particularly useful in environments where continuous connectivity is not available, enabling you to scan and store data offline before syncing with your system. Combined with the scanner's cordless design, batch mode increases flexibility for mobile inventory operations.

Full specifications (PDF)

Datalogic QuickScan QBT2131 Barcode Scanner Model Overview

The QuickScan I QBT/QM2131 is a top-notch handheld imager designed for enhanced data capture in various environments. Featuring a wide field of view and an excellent depth of field, this scanner facilitates easy reading of long linear barcodes, making it ideal for retail checkout, inventory management, and utilities applications. Its ergonomic design and user-friendly interface, combined with Datalogic's innovative cordless technology, allows for flexible operation, ensuring a seamless scanning experience whether in-store or on-the-go.


Key Features
  • Extra-wide scan angle and extra-long scan line for improved scanning performance.
  • Bluetooth Wireless Technology or Datalogic STAR Cordless System for increased productivity.
  • Easy, tool-free battery replacement and alternative USB/microUSB charging options.
  • Datalogic's patented 'Green Spot' technology for a visual good-read indicator.
  • Batch Mode capability for storing over 500 linear codes.

Specifications
  • Wireless Communications:
    • Datalogic STAR2.0 Cordless System and Bluetooth Wireless Technology.
    • Radio Range: 25 m / 82 ft.
  • Decoding Capability:
    • Auto discriminates all standard 1D barcodes.
  • Environmental:
    • Operating Temperature: 0 to 50 °C / 32 to 122 °F.
    • Drop Resistance: Withstands drops from 1.5 m / 5.0 ft.
  • Dimensions: 16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in.
  • Weight: Reader: 190 g / 6.7 oz.
  • Warranty: 3-Year Factory Warranty.
