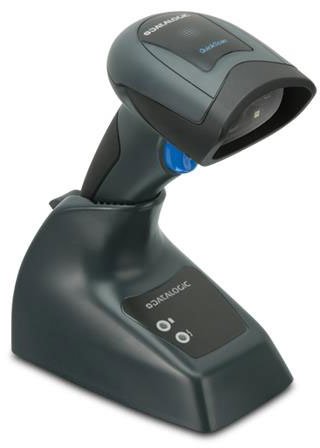

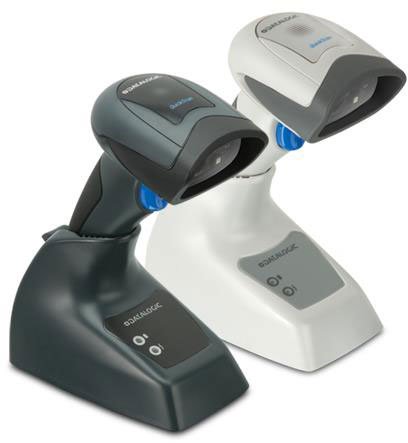

Datalogic QuickScan QBT2131 Barcode Scanner Model Overview
The QuickScan I QBT/QM2131 is a top-notch handheld imager designed for enhanced data capture in various environments. Featuring a wide field of view and an excellent depth of field, this scanner facilitates easy reading of long linear barcodes, making it ideal for retail checkout, inventory management, and utilities applications. Its ergonomic design and user-friendly interface, combined with Datalogic's innovative cordless technology, allows for flexible operation, ensuring a seamless scanning experience whether in-store or on-the-go.
Key Features
Extra-wide scan angle and extra-long scan line for improved scanning performance.
Bluetooth Wireless Technology or Datalogic STAR Cordless System for increased productivity.
Easy, tool-free battery replacement and alternative USB/microUSB charging options.
Datalogic's patented 'Green Spot' technology for a visual good-read indicator.
Batch Mode capability for storing over 500 linear codes.
Specifications
Wireless Communications:
Datalogic STAR2.0 Cordless System and Bluetooth Wireless Technology.
Radio Range: 25 m / 82 ft.
Decoding Capability:
Auto discriminates all standard 1D barcodes.
Environmental:
Operating Temperature: 0 to 50 °C / 32 to 122 °F.
Drop Resistance: Withstands drops from 1.5 m / 5.0 ft.
Dimensions: 16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in.
Weight: Reader: 190 g / 6.7 oz.
Warranty: 3-Year Factory Warranty.

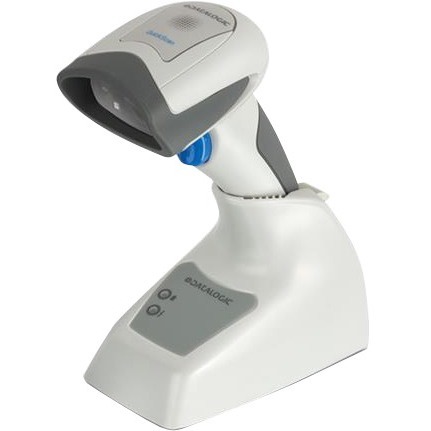

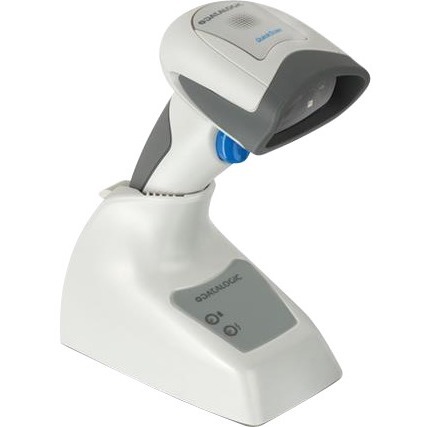

Datalogic QBT2131-WH Barcode Scanner Overview
Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.
The QuickScan QBT2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
Featuring Bluetooth® Wireless Technology, the QuickScan QBT2131 imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth compliant device.
The QBT2131 linear imager can also be connected to any tablet using either iOS or Android™ operating systems via the Bluetooth HID profile.
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What is the wireless range of the Datalogic QBT2131-WH barcode scanner?
The QBT2131-WH uses Bluetooth 3.0 wireless technology with an open-air radio range of up to 25 meters (82 feet) when measured from the base station. This extended range makes it ideal for warehouse and logistics environments where mobility is essential. We offer this scanner as part of our comprehensive cordless barcode solution lineup.
How long does the battery last on a single charge?
The QBT2131-WH is equipped with a Lithium-Ion 1400 mAh battery that delivers over 30,000 reads per charge, with a charge time of less than 3 hours at 12 VDC using the included base station/charger. This extended battery life ensures minimal downtime during typical warehouse operations. Contact us today for details on battery replacement options and accessories.
What barcode types can the QBT2131-WH read?
The QBT2131-WH automatically discriminates all standard 1D linear codes including GS1 DataBar linear codes, as well as stacked codes such as EAN/JAN Composites, GS1 DataBar Composites, and UPC A/E Composites. Its 56-degree field of view and enhanced depth of field enable reliable reading of long barcodes at intuitive distances. Visit barcodesinc.com to explore our full range of linear imager scanners.
Is the QBT2131-WH durable enough for warehouse environments?
Yes, the QBT2131-WH is built for demanding warehouse conditions with IP42 particulate and water sealing, 16 kV ESD protection, and the ability to withstand repeated drops from 1.5 meters (5 feet) onto concrete surfaces. It operates reliably in temperatures from 0 to 50°C (32 to 122°F) with 90% non-condensing humidity tolerance. We offer this scanner as a rugged solution for logistics and inventory management applications.
What interfaces does the QBT2131-WH support?
The QBT2131-WH supports multiple connectivity options including Keyboard Wedge, OEM (IBM) USB, RS-232, and standard USB interfaces, making it compatible with most warehouse management systems and legacy POS infrastructure. The Bluetooth HID (Human Interface Device) and SPP (Serial Port Profile) protocols enable flexible integration with various platforms. Contact us today to discuss integration requirements for your specific environment.
What's included in the QBT2131-WH kit, and what do I need to order separately?
The QBT2131-WH kit includes the cordless imager scanner and a base station/charger, but cables and power supply must be ordered separately to complete your setup. This modular approach allows you to select the appropriate connectivity and power options for your infrastructure. Visit barcodesinc.com or contact us today to order the necessary cables and power adapters for your installation.
The Datalogic QBT2131-WH Barcode Scanner is also known as
DTL-QBT2131WH
