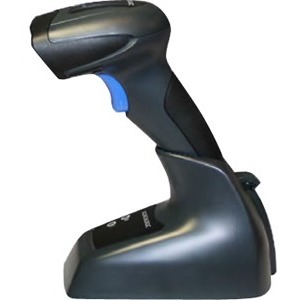

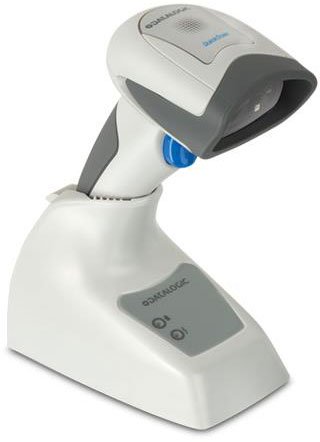

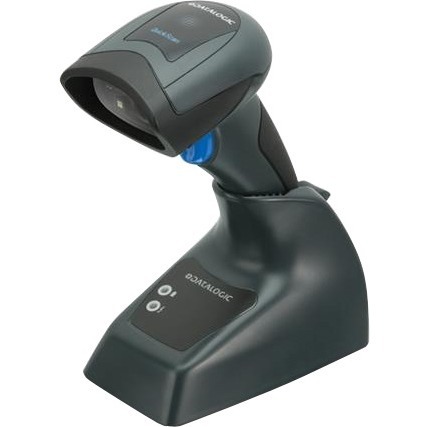

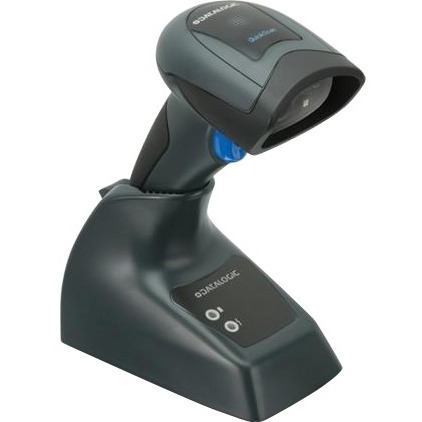

Datalogic QuickScan QBT2131 Barcode Scanner Model Overview
The QuickScan I QBT/QM2131 is a top-notch handheld imager designed for enhanced data capture in various environments. Featuring a wide field of view and an excellent depth of field, this scanner facilitates easy reading of long linear barcodes, making it ideal for retail checkout, inventory management, and utilities applications. Its ergonomic design and user-friendly interface, combined with Datalogic's innovative cordless technology, allows for flexible operation, ensuring a seamless scanning experience whether in-store or on-the-go.
Key Features
Extra-wide scan angle and extra-long scan line for improved scanning performance.
Bluetooth Wireless Technology or Datalogic STAR Cordless System for increased productivity.
Easy, tool-free battery replacement and alternative USB/microUSB charging options.
Datalogic's patented 'Green Spot' technology for a visual good-read indicator.
Batch Mode capability for storing over 500 linear codes.
Specifications
Wireless Communications:
Datalogic STAR2.0 Cordless System and Bluetooth Wireless Technology.
Radio Range: 25 m / 82 ft.
Decoding Capability:
Auto discriminates all standard 1D barcodes.
Environmental:
Operating Temperature: 0 to 50 °C / 32 to 122 °F.
Drop Resistance: Withstands drops from 1.5 m / 5.0 ft.
Dimensions: 16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in.
Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.
The QuickScan QBT2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
Featuring Bluetooth® Wireless Technology, the QuickScan QBT2131 imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth compliant device.
The QBT2131 linear imager can also be connected to any tablet using either iOS or Android™ operating systems via the Bluetooth HID profile.
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What are the key features of the Datalogic QBT2131 barcode scanner?
The QBT2131 is a cordless 1D linear imager featuring an extrawide 56° field of view and extra-long scan line that makes reading long barcodes at closer distances easier. It offers Bluetooth wireless connectivity with a base station, delivers 400 reads per second, and includes Datalogic's patented 'Green Spot' good read feedback technology for enhanced user-friendliness. The scanner supports multiple interfaces including RS-232, USB, and keyboard wedge connectivity.
What connectivity options does the QBT2131 offer?
The QBT2131 supports Bluetooth wireless technology for cordless operation, along with wired interfaces including RS-232 serial, USB, and keyboard wedge/OEM connections. The kit we offer includes a base station for wireless charging and data transmission, plus an RS-232 cable, power supply, and EU line cord for flexible deployment in your warehouse or logistics environment.
What is the reading range and depth of field for the QBT2131?
The QBT2131's reading range varies by barcode resolution, from 3.0-11.0 cm for 4-mil codes up to 4.0-70.0 cm for 20-mil codes. The enhanced depth of field enables barcodes to be read at intuitive distances, with a typical minimum read distance of 2.0 cm and maximum distances reaching up to 70 cm depending on print contrast and barcode size.
Is the QBT2131 suitable for harsh warehouse environments?
Yes, the QBT2131 is built for demanding environments with an IP42 rating for particulate and water sealing, and 16 kV ESD protection. It operates reliably in temperatures from 0-50°C (32-122°F) and handles humidity up to 90% non-condensing, making it well-suited for warehouse, logistics, and general-purpose scanning applications.
What barcode types can the QBT2131 read?
The QBT2131 is a 1D linear imager designed to read linear barcodes with a maximum resolution of 0.102 mm (4 mils). It features a red LED light source (610-650 nm) and requires a minimum print contrast ratio of 25%, with the ability to read codes at multiple angles including ±65° pitch, ±45° roll, and ±70° skew for flexible scanning in real-world conditions.
What's included in the QBT2131-BK-BTK2 kit?
The complete kit we offer includes the QBT2131 cordless imager, a base station/charger for wireless operation, an RS-232 cable (90G000008), a power supply, and an EU line cord (6003-0940). The scanner weighs 190g and the base station weighs 221g, providing a compact, complete solution ready for deployment in your facility.
The Datalogic QBT2131-BK-BTK2 Barcode Scanner is also known as
DTL-QBT2131BKBTK2
or QBT2131BKBTK2.
Full specifications (PDF)
