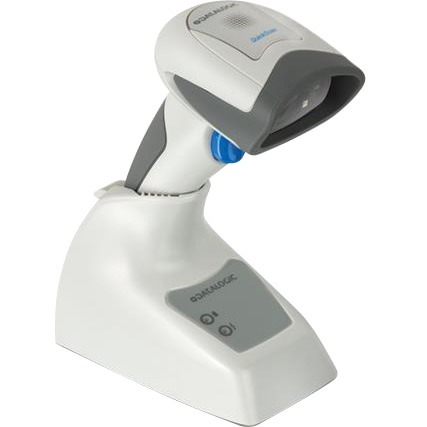

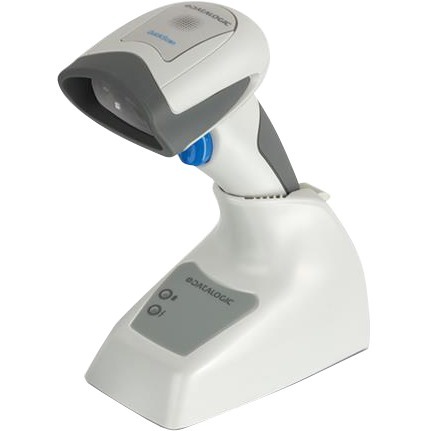

Datalogic QuickScan QBT2131 Barcode Scanner Model Overview
The QuickScan I QBT/QM2131 is a top-notch handheld imager designed for enhanced data capture in various environments. Featuring a wide field of view and an excellent depth of field, this scanner facilitates easy reading of long linear barcodes, making it ideal for retail checkout, inventory management, and utilities applications. Its ergonomic design and user-friendly interface, combined with Datalogic's innovative cordless technology, allows for flexible operation, ensuring a seamless scanning experience whether in-store or on-the-go.
Key Features
Extra-wide scan angle and extra-long scan line for improved scanning performance.
Bluetooth Wireless Technology or Datalogic STAR Cordless System for increased productivity.
Easy, tool-free battery replacement and alternative USB/microUSB charging options.
Datalogic's patented 'Green Spot' technology for a visual good-read indicator.
Batch Mode capability for storing over 500 linear codes.
Specifications
Wireless Communications:
Datalogic STAR2.0 Cordless System and Bluetooth Wireless Technology.
Radio Range: 25 m / 82 ft.
Decoding Capability:
Auto discriminates all standard 1D barcodes.
Environmental:
Operating Temperature: 0 to 50 °C / 32 to 122 °F.
Drop Resistance: Withstands drops from 1.5 m / 5.0 ft.
Dimensions: 16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in.
Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.
The QuickScan QBT2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
Featuring Bluetooth® Wireless Technology, the QuickScan QBT2131 imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth compliant device.
The QBT2131 linear imager can also be connected to any tablet using either iOS or Android™ operating systems via the Bluetooth HID profile.
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What is the reading range of the Datalogic QBT2101-WH-BTK+ barcode scanner?
The QBT2101 offers variable reading ranges depending on barcode resolution, from 3.0 to 11.0 cm (1.2 to 4.3 in) for 4-mil codes up to 4.0 to 70.0 cm (1.5 to 27.5 in) for 20-mil codes. The scanner's enhanced depth of field enables intuitive scanning distances, and minimum distance is determined by symbol length and scan angle. We offer this scanner with full technical specifications available on our product page.
Is the QBT2101 cordless and what wireless technology does it use?
Yes, the QBT2101-WH-BTK+ is a cordless barcode scanner featuring Bluetooth wireless technology for seamless data transmission to your host device or any Bluetooth-compliant equipment. The kit includes the imager and USB micro cable for charging and base station connectivity. Contact us today for wireless deployment solutions.
What are the durability and environmental specifications for this scanner?
The QBT2101 is rated IP42 for particulate and water sealing, operates in temperatures from 0 to 50°C (32 to 122°F), and handles humidity up to 90% non-condensing. It features 16 kV ESD air discharge protection and a rugged design suitable for warehouse and logistics environments. Visit barcodesinc.com for complete environmental compliance details.
What barcode types can the QBT2101 read?
The QBT2101 is a 1D linear imager that reads linear barcodes with a 56° field of view and 0.102 mm (4 mils) maximum resolution. It features a 400 reads per second read rate and supports reading angles of ±65° pitch, ±45° roll, and ±70° skew for flexible scanning in warehouse operations. We offer this general-purpose scanner for diverse inventory and logistics applications.
What interfaces and connectivity options are available with the QBT2101?
The QBT2101 supports multiple interfaces including Keyboard Wedge, OEM (IBM) USB, RS-232, and standard USB connectivity, making it compatible with various POS systems, warehouse management systems, and mobile devices. The included USB micro cable enables both charging and data connectivity through the base station. Contact us today to discuss integration with your existing systems.
What good read feedback features does the QBT2101 provide to operators?
The QBT2101 includes Datalogic's patented 'Green Spot' good read feedback technology, an adjustable beeper with tone and volume controls, and a good read LED indicator for clear confirmation of successful scans. These features enhance operator efficiency and reduce scanning errors in high-volume warehouse environments. Available from us with full operator training resources.
The Datalogic QBT2101-WH-BTK+ Barcode Scanner is also known as
QBT2101WHBTK+
Full specifications (PDF)
