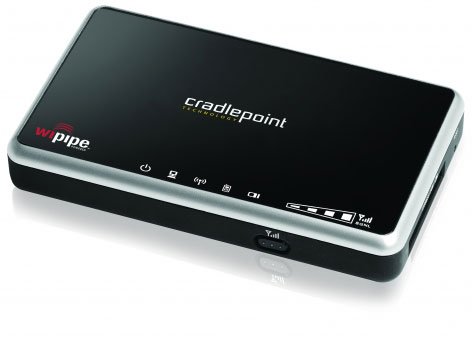

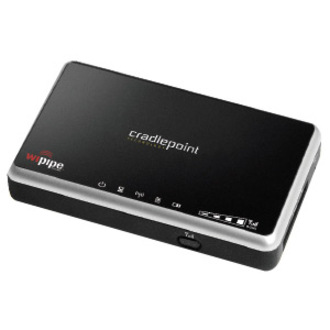

CradlePoint CTR-500 Access Point

CradlePoint CBR400 Data Networking A newer version of this item is available.
It is replaced by the CradlePoint CBR400 Data Networking.
CradlePoint CTR500 - CradlePoint CTR500 IEEE 802.11b/g Wireless Router - 2.40 GHz ISM Band - 6.75 MB/s Wireless Speed - 1 x Broadband Port - USB - Fast Ethernet
  • With the wireless router, you can enjoy wireless internet throughout your home or office
  • Maximize the throughput for smoother and faster HD video streaming and file transfer by utilizing the ISM Band
  • For USB-enabled devices accessibility, the router comes with a built-in USB port
  • Link your router traffic to your wired network with the Fast Ethernet port
Read More

Need a different version? See all CradlePoint CTR500 Data Networkings

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
CradlePoint CTR-500 Access Point
CradlePoint CTR-500 Access Point CradlePoint CTR-500 Access Point
CradlePoint CTR-500 Access Point
CradlePoint CTR-500 Access Point
Full specifications (PDF)
CradlePoint CTR500 Data Networking Model Overview
The CradlePoint CTR500 Mobile Broadband Travel Router was developed to be a plug-n-play solution. Simply connect an activated USB or Express Card modem and turn the unit on. Within seconds, you will have a secure WiFi network of up to 150 feet and the ability to connect up to 32 WiFi-enabled devices. It's that easy. Small enough to fit into your back pocket, the CTR500 can go anywhere with you. Complete with signal strength indicator and external antenna port, the CTR500 can be positioned wherever your modem get it's best signal. And with Failover/Failback redundancy, should your primary service be interrupted, the CTR500 will automatically discover another connected data network so you're never offline. When your primary service is restored, it will automatically re-connect.
CradlePoint CTR-500 Access Point Overview

The CradlePoint CTR500 Mobile Broadband Travel Router was developed to be a plug-n-play solution. Simply connect an activated USB or Express Card modem and turn the unit on. Within seconds, you will have a secure WiFi network of up to 150 feet and the ability to connect up to 32 WiFi-enabled devices. It's that easy. Small enough to fit into your back pocket, the CTR500 can go anywhere with you. Complete with signal strength indicator and external antenna port, the CTR500 can be positioned wherever your modem get it's best signal. And with Failover/Failback redundancy, should your primary service be interrupted, the CTR500 will automatically discover another connected data network so you're never offline. When your primary service is restored, it will automatically re-connect.

Full specifications (PDF)
Wireless Specifications
Wireless LAN Standard:
IEEE 802.11b/g
ISM Band:
Yes
ISM Maximum Frequency:
2.40 GHz
Total Wireless Transmission Speed:
6.75 MB/s
Wireless Security:
  • WEP
  • WPA
  • WPA2
Interfaces/Ports
Fast Ethernet Port:
Yes
USB:
Yes
Management Port:
Yes
Number of Broadband (RJ-45) Ports:
1
I/O Expansions
Expansion Slots:
1
Network & Communication
Ethernet Technology:
Fast Ethernet
Management & Protocols
Management:
  • Web Based Management (HTTP)
  • Telnet
  • Remote Management
Security Features:
  • SCP
  • SSH
  • Broadcast and Internet Access Control
  • URL Filtering
  • MAC Filtering
  • NAT
  • Stateful Packet Inspection (SPI)
  • DoS Attacks
  • IPSec
  • L2TP
  • PPTP
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
2.8"
Width:
4.7"
Depth:
0.8"
Miscellaneous
Package Contents:
  • CTR500 3G/4G Mobile Broadband Travel Router
  • Worldwide AC Power Adapter
  • Quickstart Guide
Certifications & Standards:
  • FCC
  • WiFi Alliance
Item Numbers
GTIN: 0008048791201, 0804879120162, 0842613078898
UPC: 008048791201, 804879120162, 842613078898
EAN: 0008048791201, 0804879120162, 0842613078898
UNSPSC: 43222609
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The CradlePoint CTR-500 Access Point is also known as MOB-CTR500 or CTR-500.
