Full specifications (PDF)
Wi-Fi Generation:
Wi-Fi 4
CradlePoint CBR400 Data Networking
Part Number:
CBR400
Model:
CBR400

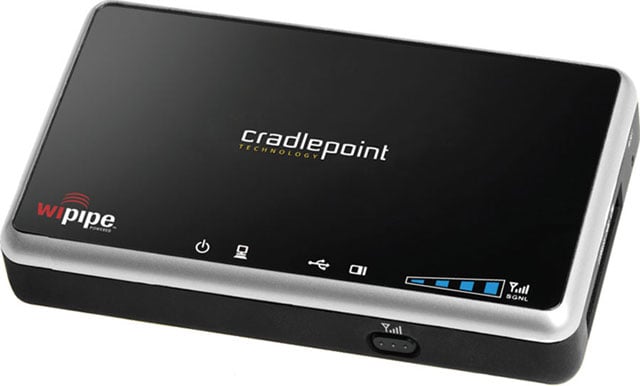

CradlePoint CBR400 Data Networking Model Overview
The CradlePoint Compact Broadband Router (CBR400) provides advanced support for distributed operations and emerging industries that require flexible, reliable and secure internet access such as temporary internet applications, additional network bandwidth or for kiosks, digital signage, and other Machine-to-Machine (M2M) applications. The CBR400 is a feature-rich business router in a small package. Built for business applications like travel, mobile workgroups, or stationary remote internet access, you can rely on CradlePoint's advanced networking features like WiPipe Security, VPN Termination, and Failover/Failback (which protects your network in case the primary data service fails) that keeps your business online.
CradlePoint CBR400 Data Networking Overview
The CradlePoint CBR400 is a highly-featured router designed for business travel and stationary remote internet access. The router supports internet access via 3G/4G mobile broadband networks as well as traditional wired networks such as DSL or Cable.
With its compact size, the CBR400 is ideal for travel or use in a small enclosure (ATM, kiosk, vehicle). With failover/failback capability, the CBR400 supports multiple combinations of wired or wireless internet. The router increases internet availability and business continuity by detecting network failures and automatically switching over to the other network(s).
Technical Information
Wireless Specifications
Broadband Transmission Technology:
- DSL
- Cable
- Cellular
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Cellular Generation:
4G
Total Wireless Transmission Speed:
6.75 MB/s
Wireless Security:
- WEP (64/128bit)
- WPA-Personal
- WPA-Enterprise
- WPA2-Personal
- WPA2-Enterprise
- IEEE 802.1x
Features:
- MIMO Technology
- Quality of Service (QoS)
Interfaces/Ports
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
No
Number of Broadband (RJ-45) Ports:
1
I/O Expansions
Total Number of Expansion Slots:
1
Expansion Slot Type:
ExpressCard
Network & Communication
Ethernet Technology:
Fast Ethernet
Management & Protocols
Management:
- DHCP
- Web-Based GUI (HTTP, HTTPS)
- Server-based Centralized Management (WiPipe Central)
- SNMP
Security Features:
- DMZ
- PPTP
- L2TP
- IPSec pass-through
- VPN
- NAT
- SPI
- Inbound Filtering
- Port Blocking
- Service Filtering
- Protocol filtering
- MAC Address Filtering
- Content Filtering
- Website Filtering
- MD5
- SHA128,256,384,512
- AES
- DES
- 3DES
Power Description
Input Voltage:
12 V DC
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
Desktop
Height:
0.8"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
3.50 oz
Miscellaneous
Package Contents:
- CBR400 Wireless Broadband Router
- Power Supply
- Quick Start Guide with warranty info
Certifications & Standards:
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
- FCC
- CE
- IC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0661799365031, 0804879288336
UPC:
661799365031, 804879288336
EAN:
0661799365031, 0804879288336
UNSPSC:
43222609
