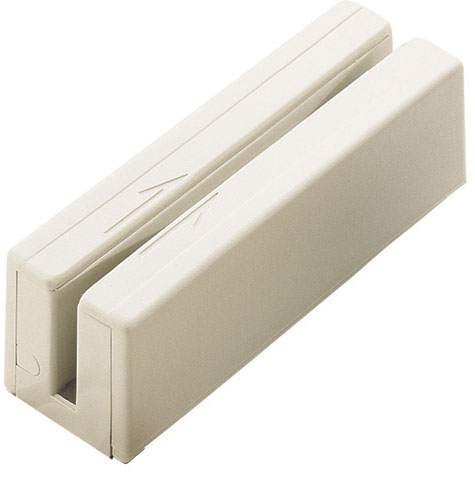

MagTek MiniWedge Credit Card Reader
MagTek MiniWedge -
The MiniWedge Stripe Reader reads information from tracks 1, 2, and/or 3, comes with a Keyboard wedge interface (PS/2 or AT), and is available in black or white finish. Keyboard Emulation Software Interface: Data is sent as if it were a USB keyboard. Read data can be viewed in applications such as Windows Notepad without requiring additional drivers or application programming. Human Interface Device (HID) Software Interface: A developed or modified application is required to communicate with this device. Data will not be seen in applications such as Windows Notepad. USB Swipe & Insert Reader Demo Program can be used to communicate with the USB SureSwipe Swipe Card Reader.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
Please Call
Questions? Get help from
a POS Expert!
a POS Expert!
Category
MagTek MiniWedge Credit Card Reader Options
-
21080206 Credit Card Reader
track 2, keyboard wedge interface. Includes PS-2 'Y' cable. Color: black. -
21080204 Credit Card Reader
tracks 1 & 2, keyboard wedge interface. Includes PS-2 'Y' cable. Color: black. -
21080202 Credit Card Reader
tracks 1, 2, & 3, keyboard wedge interface. Includes PS-2 'Y' cable. Color: black. -
21080203 Credit Card Reader
tracks 1 & 2, keyboard wedge interface. Includes PS-2 'Y' cable. Color: white. -
21080201 Credit Card Reader
tracks 1, 2, & 3, keyboard wedge interface. Includes PS-2 'Y' cable. Color: white.
MagTek MiniWedge Credit Card Reader Model Overview
The MAGĦEK Magstripe Miniwedge Swipe Reader is your ideal solution for fast and reliable card reading in various environments. Designed for ease of use, this compact device boasts the capability to read multiple tracks of credit cards and driver's licenses. With its bi-directional read capability and simple plug-and-play installation via your keyboard port, the Miniwedge Swipe Reader ensures seamless integration into your payment systems. Operating efficiently within a wide range of temperatures and humidity levels, this reader is perfect for both retail and mobile applications.
Key Features
Specifications
Key Features
- Compact & Affordable: Small size and low cost make it accessible for every business.
- Track Compatibility: Supports single, dual, or three track capabilities.
- Bi-directional Reading: Read cards in any direction for added convenience.
- Green/Red Status Indicator: Easily monitor card reading status at a glance.
- User Programmable: Custom settings to meet your specific needs.
- Includes Adapters: Compatible with both AT and PS/2 configurations.
Specifications
- Operating Environment:
- Temperature: 32°F to 131°F (0°C to 55°C)
- Storage: -22°F to 158°F (-30°C to 70°C)
- Humidity: 10% to 90% noncondensing
- Altitude: Operating 0-10,000 ft. (0-3,048m); Storage 0-50,000 ft. (0-15,240m)
- Power & Connectivity:
- Power Input: 5VDC
- Cable Length: 6 ft. (1.8m)
- Connectors: 6-Pin Mini Din (PS/2) and 5-Pin Din (AT)
- Performance:
- Message Format: Keyboard Scan Code
- Card Speed: 3 to 50 ips (7.62 to 127 cm/sec)
- MTBF: Electronics - 125,000 hours; Head - 1,000,000 passes
- Current: 20mA max
- Dimensions:
- Length: 3.94 in. (100.0mm)
- Width: 1.28 in. (32.5mm)
- Height: 1.23 in. (31.3mm)
- Weight: 5.8 oz. (165g) without cable; 6.5 oz. (184g) with cable
