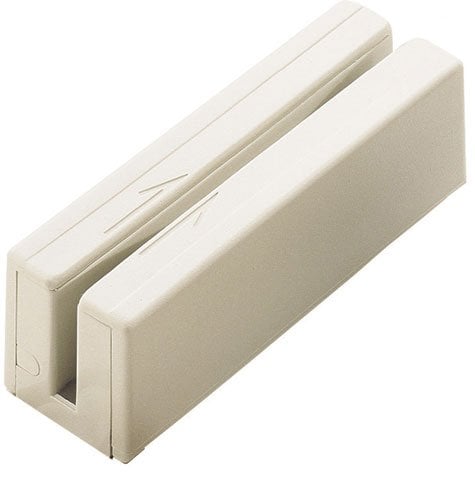

MagTek MiniWedge Credit Card Reader Model Overview
The MAGĦEK Magstripe Miniwedge Swipe Reader is your ideal solution for fast and reliable card reading in various environments. Designed for ease of use, this compact device boasts the capability to read multiple tracks of credit cards and driver's licenses. With its bi-directional read capability and simple plug-and-play installation via your keyboard port, the Miniwedge Swipe Reader ensures seamless integration into your payment systems. Operating efficiently within a wide range of temperatures and humidity levels, this reader is perfect for both retail and mobile applications.
Key Features
Compact & Affordable: Small size and low cost make it accessible for every business.
Track Compatibility: Supports single, dual, or three track capabilities.
Bi-directional Reading: Read cards in any direction for added convenience.
Green/Red Status Indicator: Easily monitor card reading status at a glance.
User Programmable: Custom settings to meet your specific needs.
Includes Adapters: Compatible with both AT and PS/2 configurations.
Specifications
Operating Environment:
Temperature: 32°F to 131°F (0°C to 55°C)
Storage: -22°F to 158°F (-30°C to 70°C)
Humidity: 10% to 90% noncondensing
Altitude: Operating 0-10,000 ft. (0-3,048m); Storage 0-50,000 ft. (0-15,240m)
Power & Connectivity:
Power Input: 5VDC
Cable Length: 6 ft. (1.8m)
Connectors: 6-Pin Mini Din (PS/2) and 5-Pin Din (AT)
Performance:
Message Format: Keyboard Scan Code
Card Speed: 3 to 50 ips (7.62 to 127 cm/sec)
MTBF: Electronics - 125,000 hours; Head - 1,000,000 passes
Current: 20mA max
Dimensions:
Length: 3.94 in. (100.0mm)
Width: 1.28 in. (32.5mm)
Height: 1.23 in. (31.3mm)
Weight: 5.8 oz. (165g) without cable; 6.5 oz. (184g) with cable
21080206 Credit Card Reader Overview
The Magnetic Stripe Swipe Card Reader looks transparent to both the keyboard and the PC until a card is read. Power is supplied via the keyboard port from the PC. When a card is read, the reader disables the keyboard and sends card data using the same scan codes used by the keyboard. The PC cannot distinguish between data from the keyboard and data from the reader.
The 21080206 Credit Card Reader is also known as
MAG-21080206
or 21080206.
