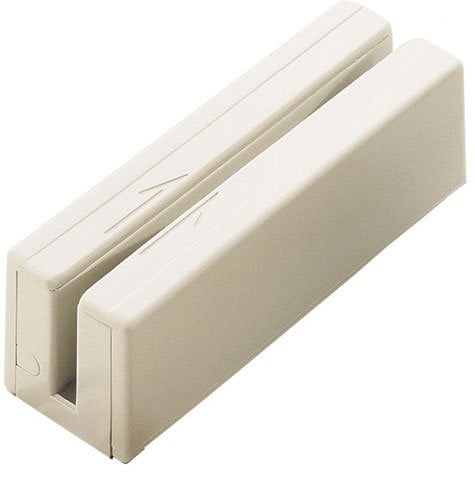

21080204 Credit Card Reader

Part Number: 21080204
Model: MiniWedge
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Magnetic Stripe Track Configuration
Dual Track
Magnetic Stripe Track Number
Track 1Track 2
Magnetic Stripe Format
AAMVA
Keyboard Wedge
Yes

Product Description:

  tracks 1 & 2, keyboard wedge interface. Includes PS-2 'Y' cable. Color: black.
Explore all MagTek MiniWedge Credit Card Readers
Add to Quote
21080204 Credit Card Reader
21080204 Credit Card Reader
21080204 Credit Card Reader 21080204 Credit Card Reader
Full specifications (PDF)

MagTek MiniWedge Credit Card Reader Model Overview

The MAGĦEK Magstripe Miniwedge Swipe Reader is your ideal solution for fast and reliable card reading in various environments. Designed for ease of use, this compact device boasts the capability to read multiple tracks of credit cards and driver's licenses. With its bi-directional read capability and simple plug-and-play installation via your keyboard port, the Miniwedge Swipe Reader ensures seamless integration into your payment systems. Operating efficiently within a wide range of temperatures and humidity levels, this reader is perfect for both retail and mobile applications.

Key Features
  • Compact & Affordable: Small size and low cost make it accessible for every business.
  • Track Compatibility: Supports single, dual, or three track capabilities.
  • Bi-directional Reading: Read cards in any direction for added convenience.
  • Green/Red Status Indicator: Easily monitor card reading status at a glance.
  • User Programmable: Custom settings to meet your specific needs.
  • Includes Adapters: Compatible with both AT and PS/2 configurations.


Specifications
  • Operating Environment:
    • Temperature: 32°F to 131°F (0°C to 55°C)
    • Storage: -22°F to 158°F (-30°C to 70°C)
    • Humidity: 10% to 90% noncondensing
    • Altitude: Operating 0-10,000 ft. (0-3,048m); Storage 0-50,000 ft. (0-15,240m)
  • Power & Connectivity:
    • Power Input: 5VDC
    • Cable Length: 6 ft. (1.8m)
    • Connectors: 6-Pin Mini Din (PS/2) and 5-Pin Din (AT)
  • Performance:
    • Message Format: Keyboard Scan Code
    • Card Speed: 3 to 50 ips (7.62 to 127 cm/sec)
    • MTBF: Electronics - 125,000 hours; Head - 1,000,000 passes
    • Current: 20mA max
  • Dimensions:
    • Length: 3.94 in. (100.0mm)
    • Width: 1.28 in. (32.5mm)
    • Height: 1.23 in. (31.3mm)
    • Weight: 5.8 oz. (165g) without cable; 6.5 oz. (184g) with cable
21080204 Credit Card Reader Overview

Low cost, small size. Green/Red status indicator. Reads drivers licenses and bank cards. Customizable communication configuration.

Full specifications (PDF)
Technical Information
Magnetic Stripe Track Configuration:
Dual Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
Magnetic Stripe Format:
AAMVA
Interfaces/Ports
Keyboard Wedge:
Yes
Physical Characteristics
Color:
Black
Height:
1.2"
Width:
1.3"
Depth:
3.9"
Length:
3.9"
Weight (Approximate):
5.90 oz
Miscellaneous
Additional Information:

Magnetic Stripe Type: Card

Magnetic Stripe Configuration: Dual Track 1 & 2

Head Type: Single

Interfaces/Ports: 6-pin - mini-Din - PS/2

Color: Black

Agency Approvals:

  • ISO
  • AAMVA
Item Numbers
GTIN: 0037648245432, 0132017634999, 0163121179779, 0654337659648, 0765468713250, 0783555030431, 4963273115535, 4963273162805
UPC: 037648245432, 132017634999, 163121179779, 654337659648, 765468713250, 783555030431
EAN: 0037648245432, 0132017634999, 0163121179779, 0654337659648, 0765468713250, 0783555030431, 4963273115535, 4963273162805
UNSPSC: 43211702
Questions? Get help from
a POS Expert!

What is your POS application?

The 21080204 Credit Card Reader is also known as MAG-21080204 or 21080204.
