Full specifications (PDF)
Signature Capture:
Yes
VeriFone M132-409-01-R Payment Terminal
Part Number:
M132-409-01-R
Model:
MX915

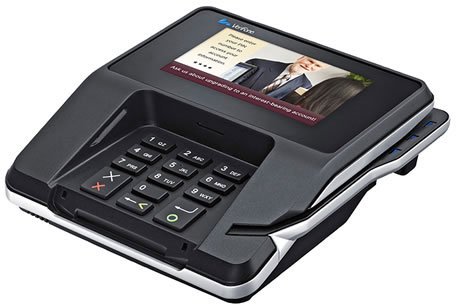

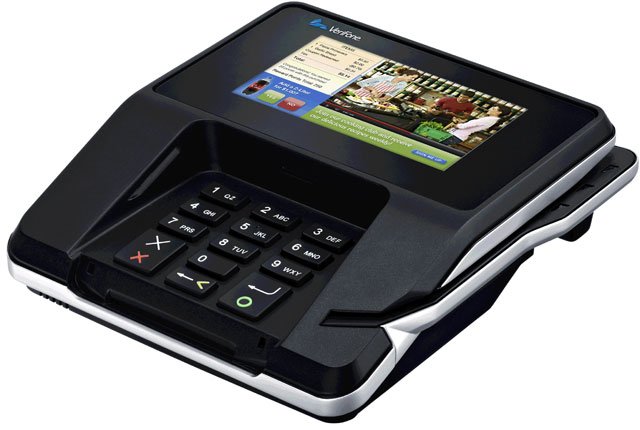

VeriFone MX915 Payment Terminal Model Overview
Verifone's MX 915 is engineered for maximum performance in a sleek and space-saving design. Featuring a stunning 4.3" color display and a powerful processor, this device not only enhances customer interaction but also opens up new revenue opportunities through its NFC/contactless capabilities. With integrated signature capture and options for loyalty schemes and promotional offers, the MX 915 is the perfect choice for businesses looking to elevate their customer experience.
Key features:
Specifications:
Key features:
- 4.3" display for signature capture and promotional displays.
- NFC/contactless enabled for electronic wallet support.
- Integrated backlit keypad for seamless customer interactions.
- Robust Linux-based OS for easy application development.
- Ideal platform for loyalty programs and gift card services.
Specifications:
- Processor: 400 MHz ARM11 32-bit RISC
- Memory: 512MB (256MB Flash, 256MB SDRAM)
- Display: 4.3" capacitive touch screen (480 x 272)
- Operating System: Embedded Linux with Verifone security enhancements
- Connectivity: Ethernet 10/100BaseT, USB host/device, serial interfaces
- Audio: Single speaker, line out port for external speakers
- Card Readers: Triple track bi-directional MSR, EMVCo L1 and L2 certification
- Security: PCI PTS 4.0 approved
- Dimensions: 56mm H x 182mm W x 225mm D; 0.6kg weight
- Operating Temperature: 0° to 40° C (32° to 104° F)
VeriFone M132-409-01-R Payment Terminal Overview
A complete media solution that's sure to engage and impress.
THE MX 915 BOASTS a vibrant display to bring messaging, advertising, and video campaigns to life-ideal for deploying a variety of value-added services like loyalty programs, gift cards, and top-up services.
Make a bold statement.
Clean lines and a sleek, modern, space-saving design make a powerful statement - whether in a lane or on a countertop. With full video and audio capabilities, the MX 915 delights.
The MX 915 comes with a powerful ARM11 processor, generous memory allocation, HW Video decoder, and highly secure Linux-based OS operating system. Plus, it supports all of the latest payment technologies.
Technical Information
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
ARM11
Processor Speed:
400 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
256 MB
Display & Graphics
Screen Size:
4.3"
Display Color:
Color
Display Screen Type:
LCD
Touchscreen:
Yes
Screen Resolution:
480 x 272
Network & Communication
Ethernet Technology:
Ethernet
Near Field Communication:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Built-in Devices
Built-in Devices:
Contactless Reader
Software
Operating System:
Linux
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Height:
2.2"
Width:
7.2"
Length:
8.9"
Miscellaneous
Certifications & Standards:
PCI PTS 3.X
Warranty
Limited Warranty:
36 Month
Item Numbers
GTIN:
0030497835410, 0816909002621, 4913393123972
UPC:
030497835410, 816909002621
EAN:
0030497835410, 0816909002621, 4913393123972
UNSPSC:
43211720
Recommended Accessories
Category
- Cables, Connectors, and Adapters (1)
- Mobile Computer Accessories (2)
- Payment Terminal Accessories (6)
- Spare Parts (2)
Recommended Accessories for Model: VeriFone M132-409-01-R Payment Terminal
Top Cables, Connectors, and Adapters Purchased With VeriFone M132-409-01-R
-
VeriFone 23741-02-R Cables, Connectors, and AdaptersVeriFone 23741-02-R USB Cable - USB Data Transfer Cable - First End: 1 x Type A Male USB - Second End: 1 x Bare Wire - Blue$131.17
Top Mobile Computer Accessories Purchased With VeriFone M132-409-01-R
-
VeriFone STY132-001-01-C Spare PartsVeriFone StylusPlease Call for Pricing or to Purchase -
VeriFone STY132-004-01-A Spare PartsVerifone Accessory, Replacement stylus for the MX9XX payment terminalIn Stock$26.67
Top Payment Terminal Accessories Purchased With VeriFone M132-409-01-R
-
VeriFone 23741-02-R Cables, Connectors, and AdaptersVeriFone 23741-02-R USB Cable - USB Data Transfer Cable - First End: 1 x Type A Male USB - Second End: 1 x Bare Wire - Blue$131.17
-
VeriFone CPS11212D-1B-R AccessoryPower supply for MX860, MX915, Everest, Omni 7000, and Omni 870series.$20.66 -
VeriFone P132-602-00-R AccessoryPower Audio (BERG with TAILGT Ethernet, USB, OTG, COM2) for the MX 9xx$54.06
Top Spare Parts Purchased With VeriFone M132-409-01-R
-
VeriFone STY132-001-01-C Spare PartsVeriFone StylusPlease Call for Pricing or to Purchase
-
VeriFone STY132-004-01-A Spare PartsVerifone Accessory, Replacement stylus for the MX9XX payment terminalIn Stock$26.67
