Full specifications (PDF)
Signature Capture:
Yes
Pin Pad:
Yes

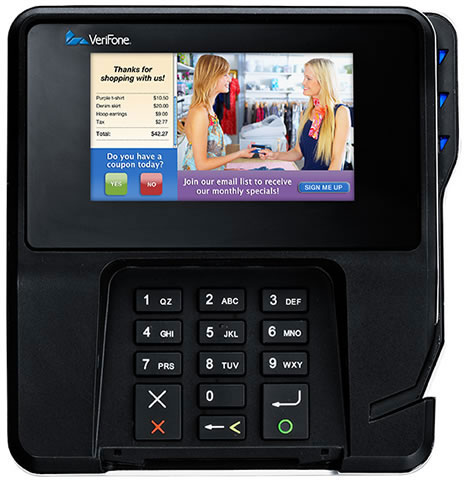

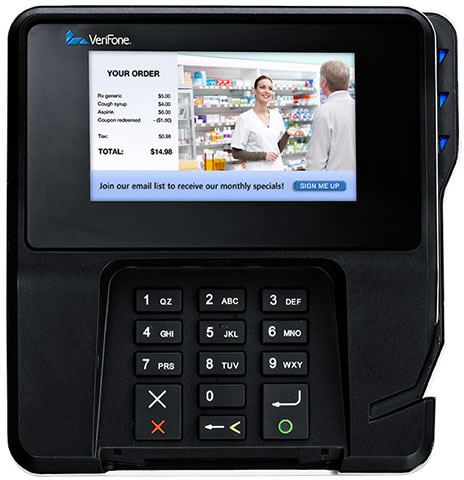

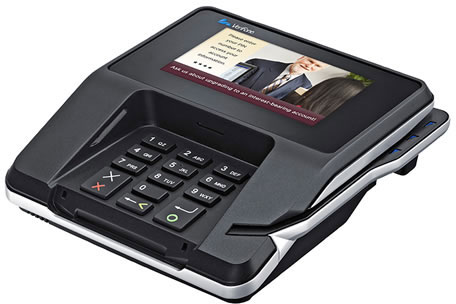

VeriFone M177-409-01-R Payment Terminal
Part Number:
M177-409-01-R
Model:
MX915

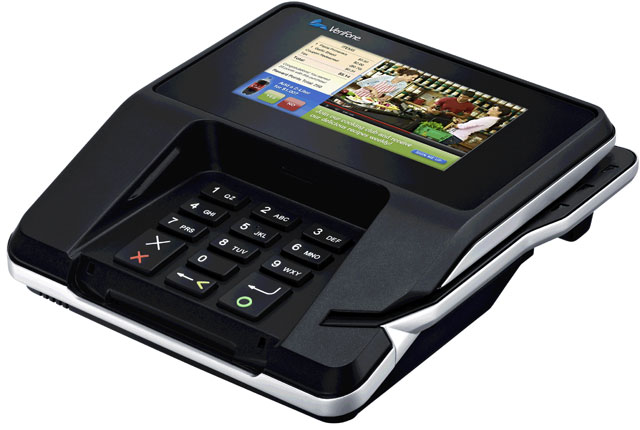

VeriFone MX915 Payment Terminal Model Overview
Verifone's MX 915 is engineered for maximum performance in a sleek and space-saving design. Featuring a stunning 4.3" color display and a powerful processor, this device not only enhances customer interaction but also opens up new revenue opportunities through its NFC/contactless capabilities. With integrated signature capture and options for loyalty schemes and promotional offers, the MX 915 is the perfect choice for businesses looking to elevate their customer experience.
Key features:
Specifications:
Key features:
- 4.3" display for signature capture and promotional displays.
- NFC/contactless enabled for electronic wallet support.
- Integrated backlit keypad for seamless customer interactions.
- Robust Linux-based OS for easy application development.
- Ideal platform for loyalty programs and gift card services.
Specifications:
- Processor: 400 MHz ARM11 32-bit RISC
- Memory: 512MB (256MB Flash, 256MB SDRAM)
- Display: 4.3" capacitive touch screen (480 x 272)
- Operating System: Embedded Linux with Verifone security enhancements
- Connectivity: Ethernet 10/100BaseT, USB host/device, serial interfaces
- Audio: Single speaker, line out port for external speakers
- Card Readers: Triple track bi-directional MSR, EMVCo L1 and L2 certification
- Security: PCI PTS 4.0 approved
- Dimensions: 56mm H x 182mm W x 225mm D; 0.6kg weight
- Operating Temperature: 0° to 40° C (32° to 104° F)
VeriFone M177-409-01-R Payment Terminal Overview
Maximum Performance, Minimal Space
The MX 915 is designed to engage consumers in new ways with its full-motion video display and slim, space-saving design. It captures consumers' attention without adding to lane or countertop clutter.
The MX 915 delivers a rich media experience with a clear, 4.3" color display, high-speed processor and generous memory. This elegantly designed, sleek and space-saving unit supports full-motion video - driving new revenue opportunities while enhancing customer interaction. It is NFC-enabled to capitalize on the coming wave of smartphone transactions, in addition to supporting EMV-approved chip and PIN payments. It's a complete media solution package that easily captures the attention of consumers.
Technical Information
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
ARM11
Processor Speed:
400 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
256 MB
Display & Graphics
Screen Size:
4.3"
Display Color:
Color
Touchscreen:
Yes
Screen Resolution:
480 x 272
Network & Communication
Ethernet Technology:
Fast Ethernet
Near Field Communication:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Audio Line Out:
Yes
Built-in Devices
Built-in Devices:
- Contactless Reader
- Smart Card Reader
Software
Operating System:
Linux
Power Description
Input Voltage:
- 12 V DC
- 24 V DC
Physical Characteristics
Height:
2.2"
Width:
7.2"
Depth:
8.9"
Weight (Approximate):
1.32 lb
Miscellaneous
Certifications & Standards:
- PCI PTS 3.X
- PCI PTS 4.0
- EMVCo L1 and L2
Warranty
Limited Warranty:
13 Month
Item Numbers
GTIN:
0019105283195, 0735548703396
UPC:
019105283195, 735548703396
EAN:
0019105283195, 0735548703396
UNSPSC:
43211720
