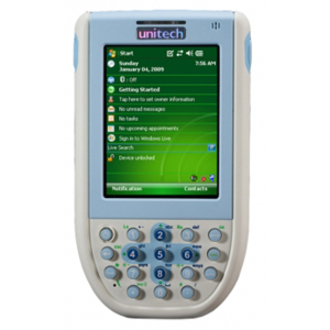

Unitech PA600-9660EADG Mobile Handheld Computer

Unitech PA600 Wireless Portable Terminal - PA600 Mobile Computer - Intel XScale 624 MHz - 128 MB RAM - 576 MB Flash - 3.5" LCD - 20 Keys - Alphanumeric Keyboard - Bluetooth
  • 3.5" LCD screen is ideal for scan intensive applications
  • Touchscreen adds an additional hour of efficiency per worker to the workday
  • Alphanumeric keypad allows prompt data input
  • Experience the versatility of Bluetooth connectivity with your Unitech Handheld Terminal
  • Windows Mobile 6.1 offers familiar interface and control of web-based applications for greater ease of use and worker satisfaction
Read More

Full specifications (PDF)

Features integrated Laser scanner, keypad, and touch screen for data collection
The PA600 portable terminal from Unitech is designed for users who need a compact, yet durable PDA for data collection and real time transactions. Powered by Windows Mobile 5.0, PA600 is equipped with a large color LCD touch screen, integrated laser scanner, 18 key keypad, and 520 MHz processor. When it comes to capturing data, the PA600 offers a variety of model options such as integrated barcode scanner, keypad, touch screen, and optional Bluetooth. With an IP54 rating to resist dust and water, the PA600 can also withstand 4-foot drops to a concrete floor.
Unitech PA600-9660EADG Overview

Powered by Microsoft Windows Mobile 6.1, the PA600 is designed for users who need a compact, yet durable PDA for data collection and real time transactions. Perfect for retail, hospitality, sales automation, and field services, the PA600 has the features to fit any business. Equipped with a large, color LCD touch-screen, integrated laser scanner, 18-key keypad, and 624MHz processor, the PA600 was designed to meet the demands of a variety of data collection applications.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Wireless
Light Source:
Laser
Barcode Symbology Supported:
  • UPC-A/E
  • EAN-8/13
  • Codabar
  • Code 39
  • Code 39 full ASCI
  • Code 93
  • Code 32
  • Interleaved 2 of 5
  • Standard 2 of 5
  • EAN 128
  • Code 11
  • Delta
  • MSI/Plessey
  • Code 128
  • Toshiba
  • RSS Expanded
  • RSS Limited
  • RSS-14
  • RSS-14 Truncated
Drop Specification:
48" To Concrete
Power Supply Included:
Yes
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
624 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
576 MB
Memory Card Slot:
Yes
Display & Graphics
Screen Size:
3.5"
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
20
Keyboard Type:
Alphanumeric
Network & Communication
Bluetooth:
Yes
I/O Expansions
Expansion Slot Type:
SDIO
Software
Operating System:
Windows Mobile 6.1
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
5.9"
Width:
3.5"
Depth:
1.1"
Weight (Approximate):
10.20 oz
Miscellaneous
Package Contents:
  • PA600 Mobile Computer
  • Power Supply
  • Battery
  • Cables
  • Stylus
Certifications & Standards:
  • CE
  • FCC
  • BSMI
  • VCCI
  • CCC
  • IP64
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211715
