Unitech PA690-9260UADG Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Unitech PA690 - Laser, Numeric, Wi-Fi, Bluetooth, WEH 6.5, Battery, USB Cable, Power Adapter

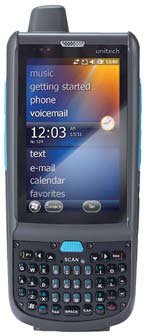

The Unitech PA690 is a portable data terminal with GPD, Windows Embedded 6.5 software (available with and without phone capabilities), a full QWERTY keypad and WLAN/WWAN/PAN (Bluetooth) connectivity. The PA690 is available with a 5.0 megapixel camera, a 1D laser barcode scanner, Micro SD support (up to 32GB) and long battery life.

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Drop Specification: 60"
  • Barcode Symbology Supported:
    • 1D:
    • UPC-A/E
    • EAN-8/13
    • Codabar
    • Code 39
    • Code 39 full ASCI
    • Code 93
    • Code 32
    • Interleaved & Std. 2 of 5
    • EAN 128
    • Code 11
    • Delta
    • MSI/Plessey
    • Code 128
    • Toshiba

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: PA690
  • Product Name: PA690 Handheld Terminal

Physical Characteristics

  • Height: 7"
  • Width: 2.9"
  • Depth: 1.6"
  • Weight (Approximate): 13.76 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • PA690 Handheld Terminal
    • Manual CD
    • Stylus
    • Battery
    • Elastic Stylus String
    • Hand Strap
    • Power Adaptor & Plugs
    • PA690 Handheld Terminal
    • Manual CD
    • Stylus
    • Battery
    • Elastic Stylus String
    • Hand Strap
    • Power Adaptor & Plugs
  • Certifications & Standards:
    • CCX4
    • IP65
    • CE
    • FCC
    • BSMI
    • VCCI
    • CCC
    • NCC

Memory

  • Flash Memory: 512 MB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • microSD Card
    • microSD High Capacity (microSDHC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: WVGA
  • Screen Size: 3.8"
  • Display Color: Color
  • Screen Resolution: 800 x 480

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: External
  • Wireless LAN Standard: IEEE 802.11a/b/g

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Nickel Metal Hydride (NiMH)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 26

Software

  • Operating System: Microsoft Windows Embedded Handheld 6.5

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

RFID

  • Maximum Operating Frequency: 13.56 MHz

Full specifications (PDF)

Full specifications (PDF)

Brand Unitech
Model PA690
Style Phone-size
