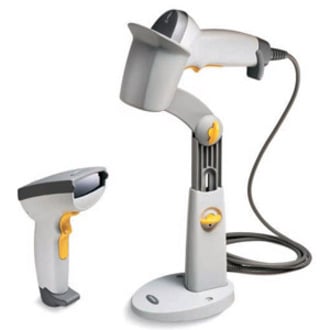

Symbol LS4000-I100-01 Barcode Scanner

The Symbol LS4000-I100-01 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol LS 4000 - undecoded kit: Scanner, undecoded cable &. See Symbol LL500 for required wedge.
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Perfect for applications that require direct association with a workstation or a notebook
  • Powerful laser scan source provides 36 scan/s decode rate
  • Scan barcodes with a staggering speed of 36 scan/s
Read More

Need a different version? See all Symbol LS 4000 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Symbol LS4000-I100-01 Barcode Scanner
Symbol LS4000-I100-01 Barcode Scanner Symbol LS4000-I100-01 Barcode Scanner
Symbol LS4000-I100-01 Barcode Scanner
Symbol LS4000-I100-01 Barcode Scanner
Full specifications (PDF)

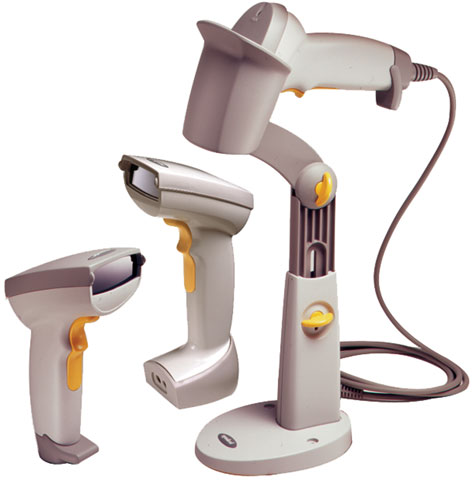

Symbol LS 4000 Barcode Scanner Model Overview
The LS 4000 Series is the result of Symbol's experience in the design of innovative, high-performance scanning solutions. The LS 4000 incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and barcode data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged barcodes. System integration is facilitated with Advanced Data Formatting (ADF), a Symbol innovation that enables the barcode data string to be modified before sending it on to the host computer. This enhances compatibility between barcoded data and the applications software by allowing the scanner to be programmed rather than modifying the host application which could be costly. All units ship with one product reference guide. All units feature Symbol's 5 year warranty.
Symbol LS4000-I100-01 Barcode Scanner Overview

The Benchmark in Handheld Laser Scanners:

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with supplementals
  • Code 39
  • Code 39 Full ASCII
  • Tri-optic Code 39
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • Code 128
  • UCC/EAN 128
  • Discrete 2 of 5
  • MSI/Plessey
  • Bookland EAN
Light Source:
Laser
Scan Rate:
36 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 4.75"@5mil
  • 0" - 16"@100% UPC/EAN
  • 1" - 26"@20mil
  • 3" - 45"@55mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Height:
6.3"
Width:
2.8"
Depth:
5"
Weight (Approximate):
6 oz
Miscellaneous
Package Contents:
  • Symbol LS 4000 Bar Code Reader
  • Standard 9 pin cable (25-16457-20)
Additional Information:

Interface Supported:

  • RS-232C (Standard, Nixdorf, ICL, Omron & Fujitsu)
  • IBM 468x/469x
  • Keyboard Wedge
  • USB (Standard, IBM SurePOS, Macintosh)

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class A
  • ICES-003 Class A
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS4000-I100-01 Barcode Scanner is also known as SYM-LS4000I or LS4000I10001.
