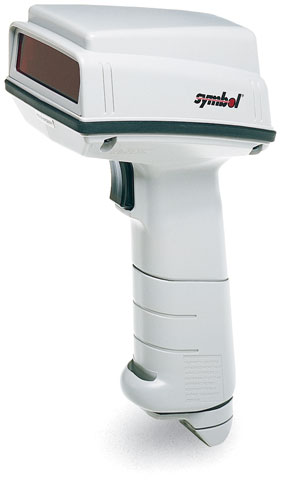

Symbol LS 3203ER – Barcode Scanner – 1D

Part Number: LS-3203ER-I200A
Model: LS 3203ER

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  extended range scanner. Order cables & power supply separately. See accessories.

Symbol LS 3203ER Barcode Scanner Model Overview

The LS 3203ER reads barcodes as far away as 35 feet (10 m) or more, and as close as 4 inches (10 cm) - giving it the greatest range of any scanner on the market today. Because the LS 3203ER reads all symbol densities over the broadest range, it's able to perform multiple tasks in the same location. For receiving and put-away, it reads UPC product codes; it also reads 20 to 40 mil case codes from close up to several feet away. For picking and shipping, it reads 70 to 100 mil retro reflective symbols on distant storage locations or shelf edges. All units ship with one product reference guide.
Symbol LS-3203ER-I200A Barcode Scanner Overview

In warehousing, transportation and other industrial applications when a scanner has to be rugged yet versatile in order to read a broad range of symbol densities both close up and at long range in temperature extremes or rigorous conditions the scanner to choose is Symbol Technologies LS 3200ER Extended-Range Scanner. The LS 3200ER reads bar codes

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Code 128
  • EAN-128
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI/PLESSEY
  • UPC/EAN
Light Source:
Laser
Scan Rate:
36 scan/s
Scan Pattern:
Bi-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Weight (Approximate):
8.50 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • OCIA
  • IBM 468X/469X
  • Wand Emulation

USB Cable separate

Certifications & Standards:

Electrical:

  • UL
  • CSA and VDE
  • FCC Class A
  • Class B limits
  • CISPER Class A

Laser Class:

  • CDRH Class II
  • IEC 825 Class 2
Item Numbers
UNSPSC: 43211701
