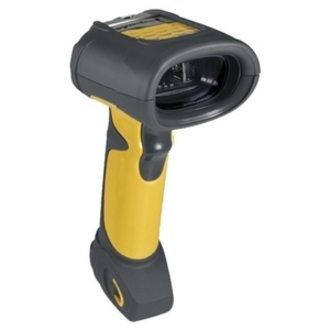

Motorola LS3408-ER20005R Barcode Scanner

Symbol LS3408 ER - SCANNER ONLY, 1D Laser, Extended Range. Cables and accessories must be purchased separately. See accessories.
  • Speed up customer's checkout experience
  • Perfect for applications that require direct association with a workstation or a notebook
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 36 scan/s
Read More

Full specifications (PDF)

Extended Range Rugged Scanner for Industrial Applications
The rugged LS3408ER, LS3408 Series handheld scanner from Symbol delivers superior extended range performance and versatility for scan-intensive industrial applications. In the yard, warehouse, distribution center, manufacturing or retail store, the LS3408ER, LS3408 Series offers best-in- performance, excellent reliability and user-friendly ergonomics more productive mobile environment. Multiple interfaces ensure flexible plug and play host connectivity. These rugged LS3408ER, LS3408 Series scanners have a 6.5 ft. drop rating and are sealed to IP65 against rain and dust. The LS3408ER, LS3408 Series features extended range capabilities and can scan out to 45 ft. on a 100 mil barcode.
Symbol LS3408-ER20005R Overview

The Rugged LS3408-ER Bar Code Reader from Symbol Technologies, the Enterprise Mobility Company, delivers superior performance and versatility for your scan-intensive industrial applications. In the yard, warehouse, distribution center, manufacturing plant or retail store, the LS3408-ER Bar Code Reader offers best-in-class performance, excellent reliability and user-friendly ergonomics to create a more productive mobile environment. Multiple on-board interfaces ensure flexible plug and play host connectivity.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS
  • UCC/EAN RSS Variants
Light Source:
Laser
Scan Rate:
36 scan/s
Maximum Scan Resolution:
7 mil
Depth of Field:
  • 0.25" - 20"@7.5mil
  • 2" - 32"@10mil
  • 3" - 69"@15mil
  • 3" - 94"@20mil
  • 15" - 180"@55mil
  • 0" - 365"@70mil
  • 0" - 540"@100mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Color:
  • Yellow
  • Black
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
12.56 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse
  • Item Numbers
    GTIN: 0132017662190, 0611517882029, 0783555011409, 5711045276965, 7426879915581
    UPC: 132017662190, 611517882029, 783555011409
    EAN: 0132017662190, 0611517882029, 0783555011409, 5711045276965, 7426879915581
    UNSPSC: 43211701

    Recommended Accessories for Model: Symbol LS3408ER, LS3408 Series Barcode Scanner

    Category

    • Power Systems & Supplies (2)
    • Cables, Connectors, and Adapters (21)
    • Accessories (42)
    • Mounting Hardware & Stands (4)
    Recommended Accessories for Model: Symbol LS3408ER, LS3408 Series Barcode Scanner

    Power Systems & Supplies

    Motorola (23844-00-00R)
    US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
    In Stock: Ships Same Day
    $17.30
    + Add to Quote
    Zebra (PWR-WUA5V4W0US)
    Power supply, AC INPUT: 100-240V, 0.2A DC OUTPUT: 5.2V, 1.1A, 5.7W for barcode scanner. Includes line cord.
    In Stock: Ships Same Day
    $39.04
    Why don't we show the price?

    Cables, Connectors, and Adapters

    Symbol Cable (25-71918-01R)
    Assembly, 9 ft, Extended, Coiled. Connects LS34XX to the VC5090. Non-standard USB, call for more information.
    In Stock: Ships Same Day
    Please Call for Pricing
    or to Purchase
    Symbol Cable (CBA-K02-C09PAR)
    Keyboard wedge, PS/2, Power Port, 9 ft, Coiled
    In Stock: Ships Same Day
    Please Call for Pricing
    or to Purchase
    Symbol Cable (CBA-R32-S07PAR)
    7 feet, Straight, RS-232, TRU TTL DB-9F
    In Stock: Ships Same Day
    Please Call for Pricing
    or to Purchase
    Symbol (25-71917-03R)
    RS-232 coiled cable, 9'. For use with VC5000/LS3408.
    In Stock: Ships Same Day
    Please Call for Pricing
    or to Purchase
    Motorola Cable (CBA-U01-S07ZAR)
    Zebra USB Cable - USB: Series A Connector, 7 ft. 2m Straight
    In Stock: Ships Same Day
    $33.76
    Why don't we show the price?

    Symbol Cable (CBA-R02-C09PAR)
    Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R).
    In Stock: Ships Same Day
    $39.04
    Why don't we show the price?

    Symbol Cable (CBA-U03-S07ZAR)
    , USB, Power Plus connector, 7 ft, Straight.
    In Stock: Ships Same Day
    $44.31
    Why don't we show the price?

    Symbol Cable (CBA-U10-S15ZAR)
    USB Series A connector, 15 ft, Straight
    In Stock: Ships Same Day
    $55.92
    Why don't we show the price?

    Symbol Cable (CBA-R03-C12PAR)
    RS-232, 12 feet, Standard DB-9F, TxD on 2, Coiled
    In Stock: Ships Same Day
    $60.14
    Why don't we show the price?

    Symbol Cable (CBA-U15-S15ZAR)
    15' PoweredUSB cable, Straight, Call to purchase.
    In Stock: Ships Same Day
    $60.14
    Why don't we show the price?

    Motorola Cable (CBA-M01-S07ZAR)
    (7 feet, Straight, Ibm 468x/9x-Port 9b)
    In Stock: Ships Same Day
    $71.74
    Why don't we show the price?

    Symbol Cable (CBA-K08-C20PAR)
    (20 feet, Keyboard wedge, PS/2, PW).
    In Stock: Ships Same Day
    $99.17
    Why don't we show the price?

    Symbol Cable (CBA-U09-C15ZAR)
    15', Coiled, standard USB cable, Series A.
    In Stock: Ships Same Day
    $107.61
    Why don't we show the price?

    Symbol Cable (CBA-T13-C09ZAR)
    (9 feet, Coiled, RS-232) for the VRC 7900/8900.
    Symbol (CBA-S01-S07ZAR)
    Synapse Adapter Cable, 7 ft. From scanner to synapse. (Must be used in conjunction with Synapse SmartCable. Please call for details.) RoHS.
    Symbol Cable (CBA-K06-C12PAR)
    12 feet, Keyboard wedge, PS/2, Power Port and Coiled
    Symbol Cable (CBA-K01-S07PAR)
    7 ft. straight PS/2 Keyboard wedge cable.
    Ships in 3-5 Days
    $24.10
    + Add to Quote
    Symbol Cable (CBA-M04-S07ZAR)
    7 feet, Straight, IBM 468X/9X-Port 5B
    Ships in 3-5 Days
    $49.59
    Why don't we show the price?

    Symbol Cable (CBA-U06-S09EAR)
    USB EAS, Series A Connection, 9 ft, Straight
    Ships in 3-5 Days
    $71.74
    Why don't we show the price?

    Symbol Cable (CBA-M02-C09ZAR)
    9 feet, Coiled, IBM 468X/9X-Port 9B
    Ships in 3-5 Days
    $93.90
    Why don't we show the price?

    Symbol Cable (CBA-U08-C15ZAR)
    PoweredUSB connector, 15 ft, Coiled Call to purchase.
    Ships in 3-5 Days
    $104.45
    Why don't we show the price?

    Accessories

    Symbol (50-14000-008R)
    110 VAC US Power supply.
    Symbol (50-14000-008)
    110 VAC US Power supply
    Symbol (25-67510-21)
    Cable Accessory: Univ, USB, 7Ft Straight, Ls3408
    Symbol (25-66720-21)
    Cable Accessory: Univ, Kyb Wedge, PS/2, 9Ft Coiled, Ls3408
    Symbol (25-66773-21)
    Cable Accessory: Univ, Kyb Wedge, PS/2, 20Ft Coiled, Ls3408
    Symbol (25-66732-21)
    Cable Accessory: Univ, RS-232, 9 Ft, Coiled, DB-9, Ls3408
    Symbol (25-66772-21)
    Cable Accessory: Univ, RS-232, 20Ft Coiled, DB-9, Ls3408
    Symbol (CBA-T14-C09ZA)
    Cable Accessory: Univ, Undecoded Scanner Emulation, 9Ft Coiled, Ls3408 To Vrc6900
    Symbol (25-66864-21)
    Cable Accessory: Univ, RS-232, 9Ft Coiled, Ls3408 To Vrc7900/8900
    Symbol (25-67512-21)
    Cable Accessory: Univ, Synapse Adapter Cable, 9 Ft, Coiled, DB-9, Ls3408
    Symbol (20-54090-07)
    Stand Assembly (Twilight Black) for the LS 34XX
    Symbol (50-14000-058)
    100-230 VAC Power supply Universal
    Symbol (50-14000-010R)
    100 VAC Asia-Pacific Power supply.
    Symbol (50-14000-010)
    100 VAC Asia-Pacific Power supply
    Symbol (25-53494-20)
    Straight Cable (6 feet, USB with EAS, Series A Connection)
    Symbol (25-68069-01)
    Cable Accessory: Univ, Undecoded Scanner Emulation, 9Ft Coiled, Ls3408 To Vrc6900
    Symbol (11-35035-01)
    Scanner Holster With Belt Clip
    Symbol Cable (CBA-K02-C09PA)
    (9 feet, Keyboard wedge PS/2, Power Port Coiled)
    Symbol Cable (CBA-T13-C09ZA)
    (9 feet, Coiled, RS-232) for the VRC 7900/8900
    Symbol Cable (CBA-R06-C20PA)
    Assembly (20 Foot, Coiled, Universal Style 3, RS-232, Gray)
    Symbol (SBCC00030)
    Cable Assembly for the LS3408, 2 Connector
    Symbol (20-88462-01R)
    Stand Assembly (Twilight Black) for the LS34XX
    Symbol (50-14000-253R)
    Power supply (90V 264 VAC, 5.0VDC, 0.850A)
    Symbol Cable (CBA-U01-S07ZA)
    (7 feet, Univ. Style 3, USB and DURA Gray)
    Symbol (KT-14001-001R)
    Power supply Kit (100 250 VAC 5.2VDC, 1A).
    Motorola (50-14000-058R)
    Power supply (100-250 VAC, 5v, 2a)
    Symbol Cable (CBA-D02-C09ZAR)
    Standard Undecoded, 9 ft, Coiled
    Symbol Cable (CBA-W01-S07ZAR)
    7 feet straight cable, Wand
    Motorola Cable (CBA-R37-C09ZAR)
    - RS-232: DB-9 Female CON. 9 ft. (2.8m) Coiled, POWER PIN
    Motorola (PWRS-14000-257R)
    PWR SPLY: 5VDC, 850MA, CHINA
    Symbol (12-44267-01R)
    Desk/Wall Mount, Multi-Pos For Ls34Xx, Ls35Xx, Ds34Xx, And Ds35Xx, Nc/Nr
    Symbol (50-14000-009)
    220 VAC Euro Power supply.
    Symbol (50-14000-009R)
    220 V Power supply. Requires Line Cord.
    Symbol Cable (CBA-R06-C20PAR)
    Universal Style 3, RS-232, 20 ft, Coiled, Gray
    Symbol Cable (CBA-R46-C09ZAR)
    RS-232 cable, 9', coiled, True Converter, DB-9 Female, Power Pin 9, TXD Pin 2.
    Motorola (PWRS-14000-256R)
    Power supply, 5VDC, 850MA, For Use in EU, UK, EMEA, RU, and ZA.
    Symbol Cable (25-71917-02R)
    RS-232 coiled cable, 9'. For use with VC5000/LS3408.
    Symbol Cable (CBA-S04-C16ZAR)
    Synapse Adapter Cable, 16 ft, Coiled
    Motorola Cable (CBA-R01-S07PAR)
    RS-232 Cable (7 ft. Straight, Standard DB-9F TxD-2). Requires Power supply (Part# PWR-WUA5V4W0US).
    Motorola Accessories (PWRS-14000-253R)
    Power supply, 5VDC/850ma (For Use in US, Ca, Mx, Br, Jp, Tw). Includes line cord. Power supply for the Motorola LI4278 barcode scanner.
    Taylor Made Cases (TM-B3408)
    Symbol/Motorola 3408 head cover with one D-ring
    Ships in 3-5 Days
    $25.40
    + Add to Quote
    Symbol Cable (CBA-K05-S15PAR)
    Keyboard wedge, PS/2, 15 ft, Straight

    Mounting Hardware & Stands

    Symbol (20-54090-07R)
    Twlight black stand assembly for LS34xx
    In Stock: Ships Same Day
    Please Call for Pricing
    or to Purchase
    Symbol (11-66553-06R)
    Wall mount bracket for several Motorola DS and LS barcode scanners. Color: Gray.
    In Stock: Ships Same Day
    $39.04
    Why don't we show the price?

    Symbol (21-52612-01R)
    Rugged scanner holder (can be mounted on forklift)
    In Stock: Ships Same Day
    $148.76
    Why don't we show the price?

    Symbol (50-15400-031)
    Tool Balancer: Pulley 10' Cable
    In Stock: Ships Same Day
    $169.86
    Why don't we show the price?

    The Symbol LS3408-ER20005R is also known as Symbol Technologies LS3408-ER20005R or LS3408ER20005R .
